Solenoid Valve

Specifications

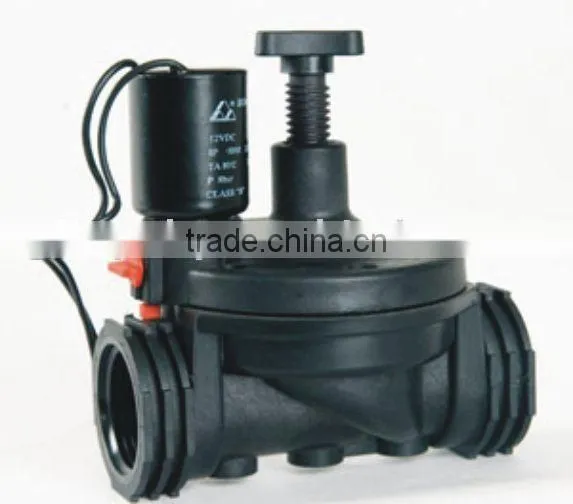

Solenoid Valve

Primary Applications:

Industrial-strength glass-filled nylon globe valve with self-cleaning scrubber and stainless steel screen for reliable performance in dirty water applications.

Features and Benefits:

• Durable glass-filled nylon construction for long life and reliable performance.
• Globe configuration.
• Normally closed, forward flow design.
• Slow closing to prevent water hammer and subsequent system damage.
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
• Flow control handle adjusts water flows as needed.
• Manual internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
• Low flow operating capability for a wide range of applications.
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
• Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging.

Models:

• 075-PESB: 3/4" female thread
• 100-PESB: 1" female thread

*All models available with BSP and NPT threads.

Specifications:

• 24 VAC 50/60 cycle solenoid power requirement: 0.41 A (9.9 VA) inrush current; 0.28 A (5.5 VA) holding current.
• Max. valve pressure: 10bar.
