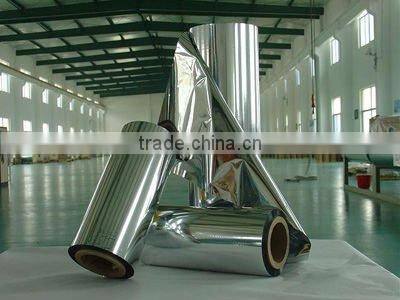

Metallized PET film is a bright metallized barrier film, that is achieved by depositing a thin layer of aluminum onto the surface of PET substrate film and finally realize a bright metallic effect. Below are key features for HuaMao metallized film.
Based on the key features above, HuaMao metallized film is particularly suitable for use in produce silver papers. Let’s see how the silver papers consist.
Silver paper is to achieved by combining paper substrate and metallized PET film through wet lamination process.

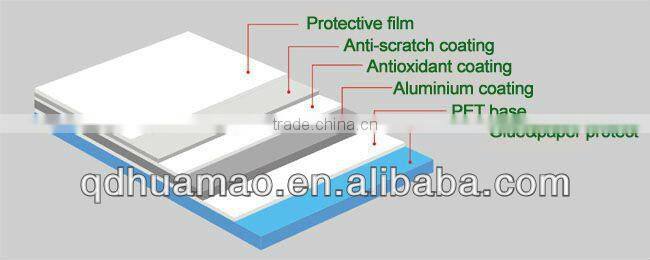

♦ Structure of Silver papers
Technical Data Sheet for metallized PET film
Metallized PET film | ||||
Properties |
Units |
Typical Values |
Test Methods |
|
|
Thickness |
μm |
12 |
DIN53370 |
|
Tensile Strength |
MD |
MPa |
218 |
DIN53455-6-5 |
TD |
231 |
|||
Elongation at Break |
MD |
% |
111 |
DIN53455-6-5 |
TD |
114 |
|||
Coefficient of Friction |
F/F-μs |
- |
0.48 |
DIN53375 |
F/F-μk |
0.48 |
|||
Heat Shrinkage |
MD |
% |
2.0 |
BMSTT11 |
TD |
0.8 |
|||
|
Thickness of Aluminum Layer |
Ω/ |
2.0 |
Resistance Tester |
|
|
Optical Density |
OD |
2.0 |
MACBETH TD904 |
|
Adhesion of Aluminum Layer |
% |
100 |
3M Gummed Tape |
|
Tolerace of Aluminum Layer |
% |
6 |
Resistance Tester |
|
|
Gloss |
% |
132.6 |
ASTM D2457 |
|
|
Surface tension |
Dyne/cm |
56 |
ASTM D2578 |
|
♣ More Features:
♦ 1 High reflectivity
Ultra-high-performance reflective film reflective rate of RF015 can reach to 95%
♦ 2. Long using life
Anti-rubbing, anti-corrosion, anti-aging, With a long life span, could be used more than 5 years. The surface is still smooth, does not appear diffuse reflectance.

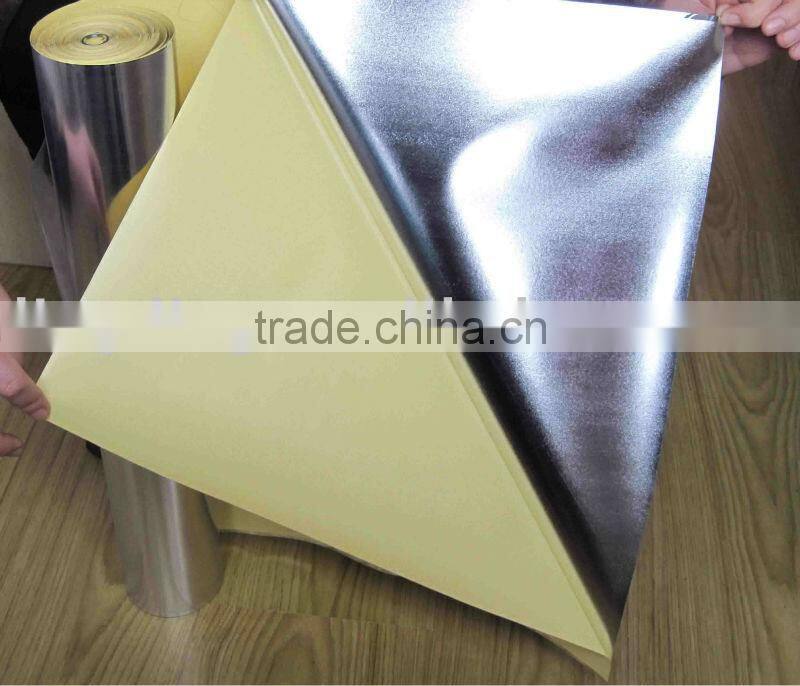

♦.3 With adhesive, could be stick to the parabola dish / LED lights lamp, and decoration.

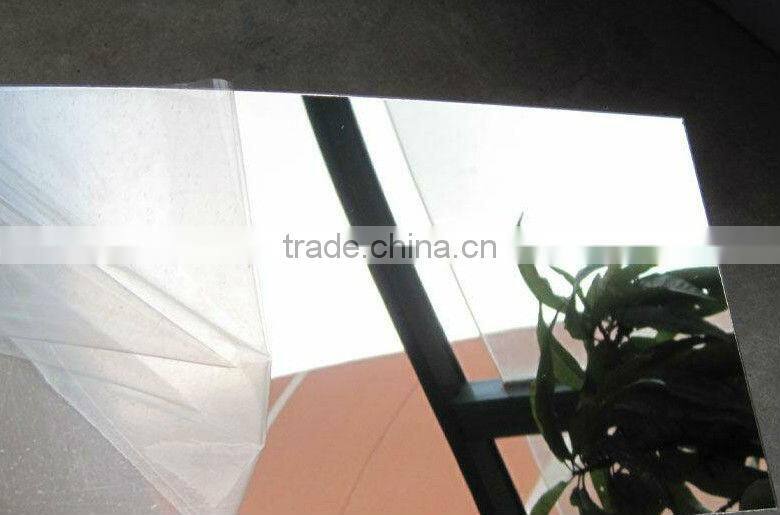

♦ 4. There is a layer of transparent protect film to protect the aluminium layer. Goods will be packed safe & carefully. Export standard packaging.
we have past CE,FDA,ISO9001:2008,SGS certificate.
Your inquiry would be replied within 24 hours.
