♣ Introduction:
PET aluminium mylar is based on the environment friendly material to the substrate. It has some characterization such as the high retro-reflection, excellent silver surface and thermostabilization and so on, is the best substitute for the stainless steel and aluminum products ( lamp and solar concentrator), Wall decoration, wall mirror sticker, window mirror sticker, christmas hanging products, disco mirror ball, kids' toys, light reflection mirror,make up mirror,dressing decoration, product promotion decor etc.

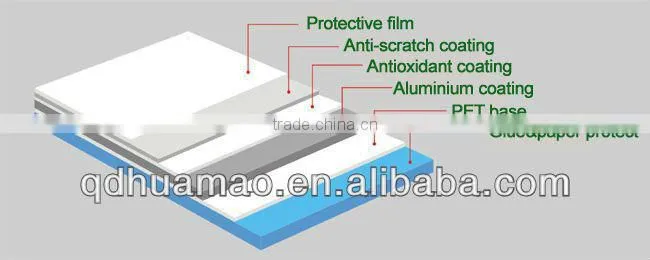

♣ Structure of PET aluminium mylar(like mirror, with high gloss and high reflectivity)
Technical Data Sheet for metallized PET film
Metallized PET film | ||||
Properties |
Units |
Typical Values |
Test Methods |
|
|
Thickness |
μm |
12 |
DIN53370 |
|
Tensile Strength |
MD |
MPa |
218 |
DIN53455-6-5 |
TD |
231 |
|||
Elongation at Break |
MD |
% |
111 |
DIN53455-6-5 |
TD |
114 |
|||
Coefficient of Friction |
F/F-μs |
- |
0.48 |
DIN53375 |
F/F-μk |
0.48 |
|||
Heat Shrinkage |
MD |
% |
2.0 |
BMSTT11 |
TD |
0.8 |
|||
|
Thickness of Aluminum Layer |
Ω/ |
2.0 |
Resistance Tester |
|
|
Optical Density |
OD |
2.0 |
MACBETH TD904 |
|
Adhesion of Aluminum Layer |
% |
100 |
3M Gummed Tape |
|
Tolerace of Aluminum Layer |
% |
6 |
Resistance Tester |
|
|
Gloss |
% |
132.6 |
ASTM D2457 |
|
|
Surface tension |
Dyne/cm |
56 |
ASTM D2578 |
|
♣ Popular Models:
Model |
Thick |
Pkg |
Width |
Reflect rate |
Thermal shrinkage |
Thickness Deviation |
Uniformity |
Wetting |
Metalizing |
Tension |
|||||||
RF01 |
0.1mm |
Roll/PC |
50cm,100cm, Glue,Without glue |
>90% |
150C,15min,<1% |
±2% |
±5% |
50% |
RF015 |
0.15mm |
Roll/PC |
50cm,100cm, Glue, Without glue |
>95% |
150C,15min,<1% |
±2% |
±5% |
50% |
RF005 |
0.05m |
Roll |
8cm, 50cm |
>85% |
150C,15min,<1% |
±2% |
±5% |
50% |
♣ Features:
♦ High reflectivity
Ultra-high-performance reflective film reflective rate of RF015 can reach to 95%
♦ . Long using life
Anti-rubbing, anti-corrosion, anti-aging, With a long life span, could be used more than 5 years. The surface is still smooth, does not appear diffuse reflectance.
♦ With adhesive, could be stick to the parabola dish or LED lights. Also have the models without adhesive.
♦ There is a layer of transparent protect film to protect the aluminium layer. Goods will be packed safe & carefully. Export standard packaging.
♣ Production Line:
♣ Advance Facilities:
♣ Standard package and transportation:
