competitive price oil fan heater
Portable Oil(kerosene /diesel) Space Heater

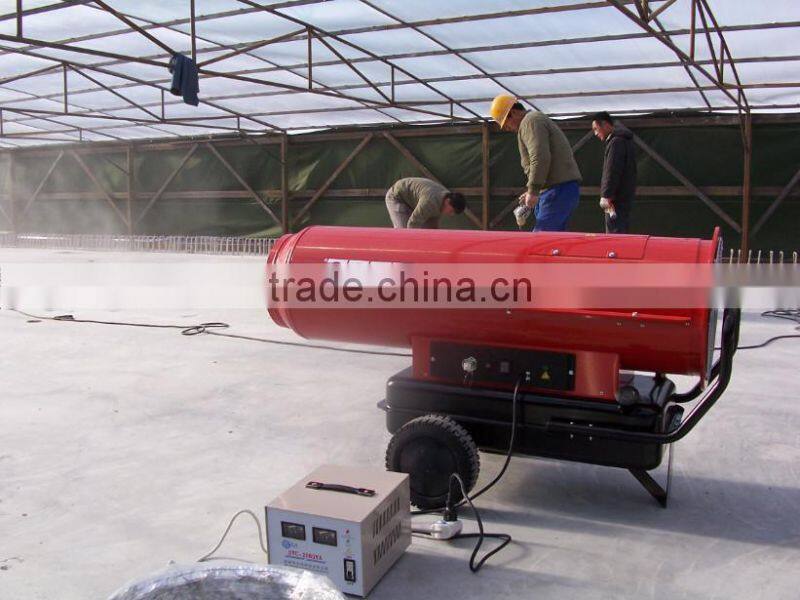

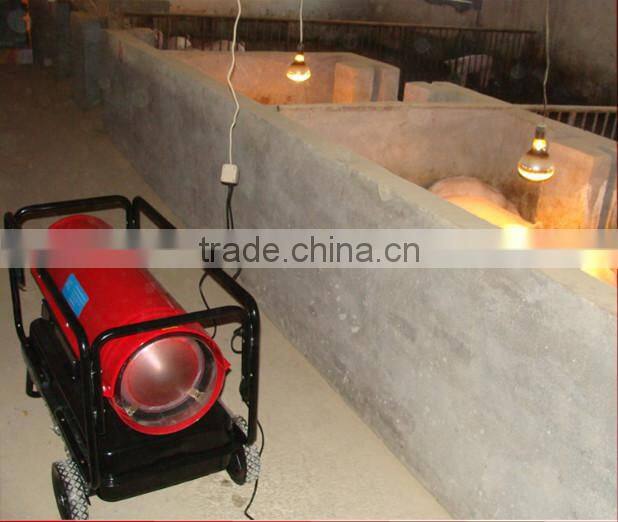

Oil heater serios need fuel. Heating effect is obvious, have higher thermal efficiency. less maintenance,stainless steel combustion chamber, automatic electric safety and control device, with room thermostat. This can be used in breeding industry, workshop heating, Such as chicken, duck brood, pig conservation, workplace, warehouse, building site, etc.

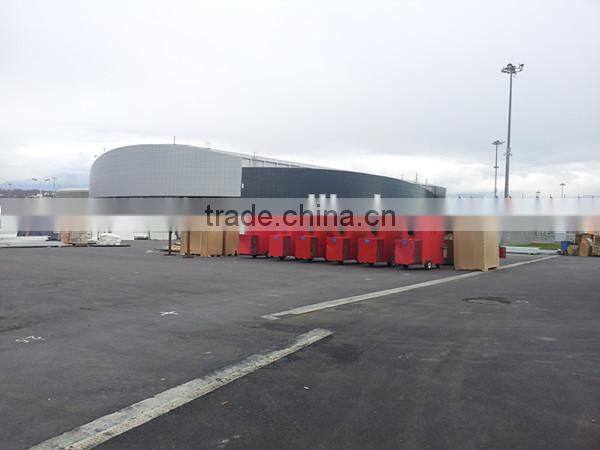

We supply our oil space heaters for 2014 The Winter Olympic in Sochi.
Oil space heaters include 5 serious:

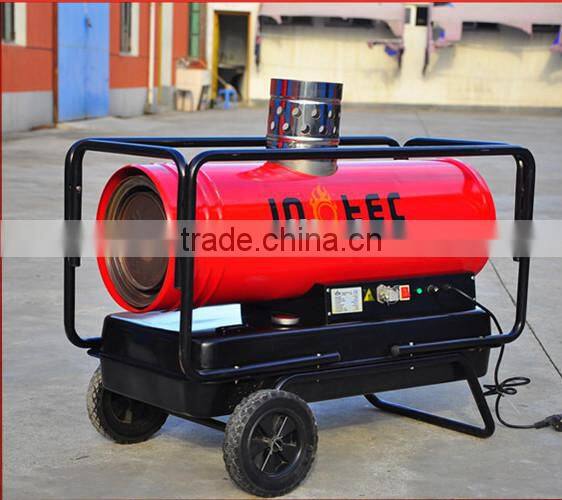

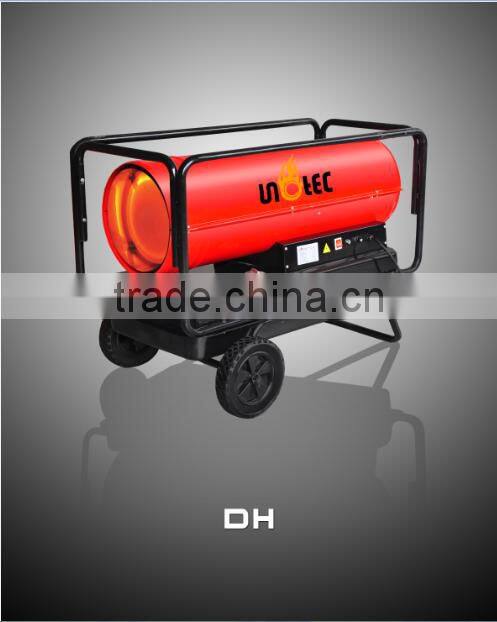

1.DH direct fired fan heater(20 000cal/h-37 000cal/h)
| Item No. | DH-20 | DH-40 |
| Heat output | 23KW | 43KW |
| KCal/h | 20000 | 37000 |
| Btu/h | 78000 | 148000 |
| Air output | 400m3/h | 1050m3/h |
| Motor | 100w | 250w |
| Oil Consumption | 1.8L/h | 3.5L/h |
| Tank capacity | 21L | 42L |
| Electrical supply | 230V-50Hz | 230V-50Hz |
| Weight | 26kg | 37kg |
| size(mm) | 810*360*380 | 930*440*570 |
DH have long life compare with other competitors. Ideal for drying in building sites and heating well ventilated small or medium premises. There are two types you can choose. So over the years has always been one of the most popular products.

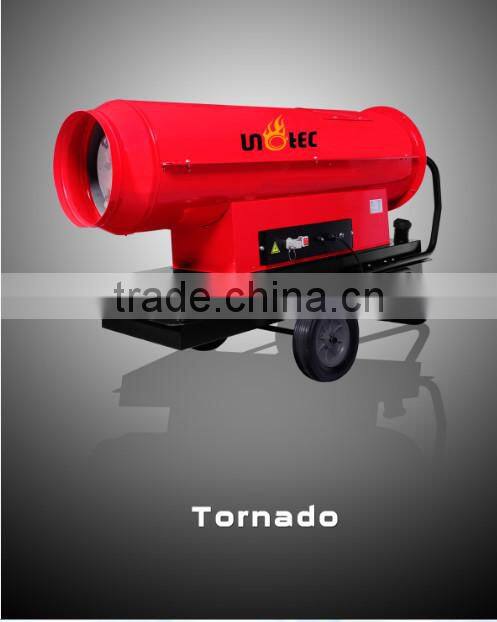

2.Tornado direct fired fan heater(56 700cal/h-99 100cal/h)
| Item No. | Tornado 67 | Tornado 115 |
| heat output(max) | 66 kw/h | 115 kw/h |
| 56700 cal/h | 99100 cal/h | |
| air velocity | 3000 m3/h | 5000 m3/h |
| Fuel consumption | 6.07 L/h | 10.6 L/h |
| Power supply | 220V-50Hz | 220V-50Hz |
| Power of main fan | 370 w | 500 w |
| power of burner fan | 150 w | 150 w |
| unit weight | 83 kg | 130 kg |
| Size(L*W*H) | 1410mm*460mm*960mm | 1720mm*720mm*1060mm |
Tornado have Danfoss gear pump and nozzle. Independent oxygen supplying motor, which could suck the fresh air from outside. Full cosed combustion champer keep the combustive clean and stable.Ideal for drying in building sites and heating well ventilated medium or large premises.

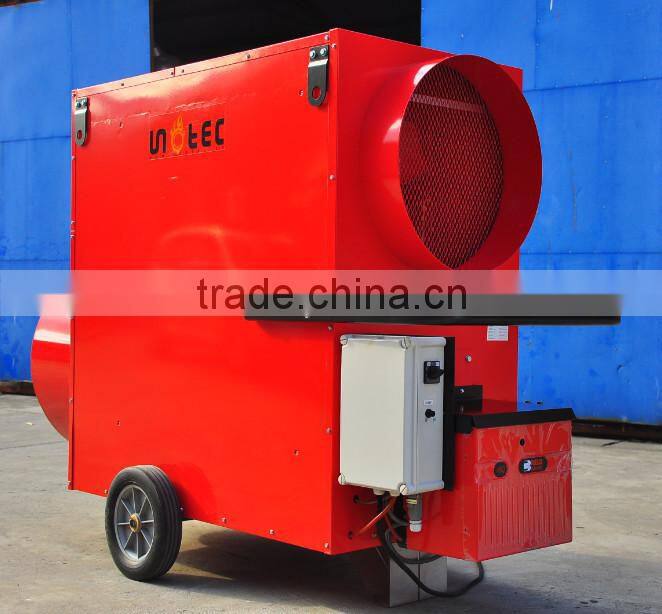

3.Helios indirect output heater(120 400cal/h-167 700cal/h)
| Model | Helios140 | Helios170 | Helios150C | Helios200C |
| Heat output (kcal/h) | 120.4 | 149.2 | 124.7 | 166.7 |
| Heat output (Btu/h) | 477747 | 592026 | 494810 | 661466 |
| Heat output (kw) | 140 | 174 | 145 | 195 |
| Efficiency(%) | 89.7 | 90.3 | 90.3 | 90.3 |
| Air output (m3/h) | 11000 | 14000 | 11000 | 14000 |
| Air pressure(mmH20) | 9 | 9 | 52 | 53 |
| Absorbed power(W) | 2300 | 3100 | 2300 | 3100 |
| Voltage (V/Hz) | 230/50 | 400/50 | 400/50 | 400/50 |
| Weight ( kg) | 235 | 330 | 295 | 400 |
| Stack Dia(mm) | 200 | 250 | 200 | 250 |
| Air Outlet Dia(mm) | 520 | 690 | 520 | 690 |
| Size(mm) | 1945×840×1420 | 2445×1055×1670 | 2120×840×1420 | 2655×1065×1670 |
Heilios have 3 smoke ring stainless steel heating exchanger makes sure the efficiency up to 90.3% with 10 years guarantee. Helios 140, 170 are axle fan. And Helios 150C,200C are centrifugal fan. You can connect 100 meters air duct (C type).

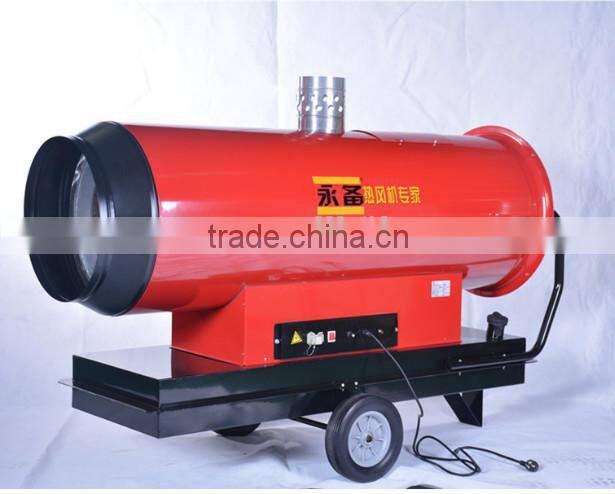

4.DH25PV indirect fired heater(22 400cal/h)
| Item No. | DH25PV |
| Heat output | 26KW |
| KCal/h | 22400 |
| Btu/h | 88700 |
| Air output | 800m3/h |
| Motor | 300w |
| Oil Consumption | 2L/h |
| Tank capacity | 42L |
| Electrical supply | 230V-50Hz |
| size(mm) | 950*520*570 |
DH25PV is ideal for heating or drying in closed premises. Heat exchanger to keep exhaust gas and hot air separate. Functions on oil or paraffin.
5.Mirage indirect heater(31 300cal/h-72 200cal/h)
| Item No. | Mirage 37 | Mirage 55 | Mirage 85 |
| heat output(max) | 36.4 kw/h | 52.5 kw/h | 83.9 kw/h |
| 31300 cal/h | 45200 cal/h | 72200 cal/h | |
| air velocity | 2500 m3/h | 3000 m3/h | 5500 m3/h |
| Fuel consumption | 3.35 L/h | 4.84 L/h | 7.72 L/h |
| Power supply | 220V-50Hz | 220V-50Hz | 220V-50Hz |
| Power of main fan | 370 w | 370 w | 550 w |
| power of burner fan | 150 w | 150 w | 150 w |
| unit weight | 76 kg | 91 kg | 147 kg |
| Size(L*W*H) | 1180mm*460mm*960mm | 1410mm*460mm*960mm | 1720mm*720mm*1060mm |
Mirage have clean combustion technology, separation of combustion exhaust gas, and output of clean hot air. Independent air supplying system avoids consumption room oxygen. There are three types you can choose.
We also produce electric fan heaters
1.Robo series(Output heat 2KW to 15KW);
2.Airfarm series(Output heat 5KW or 9KW);
3.Elite series(Output heat 2KW to 30KW);
Welcome your further inquiry! We can also make as your request!
For more details to visit our website:
UNOTEC is a registered trademark of Shanghai Unotec Co., Ltd. We develop, produce and
supply one of the most comprehensive ranges of powerful and professional portable heaters
and coolers since 2005. As a professional manufacturer we offer you,our customers and sales
associates, ideal conditions when it comes to expertise, investment security and optimum
service in all areas.The quality of the products is guaranteed by the high standard ofmaterials
used and by a continuous research for improvement in the technical field.

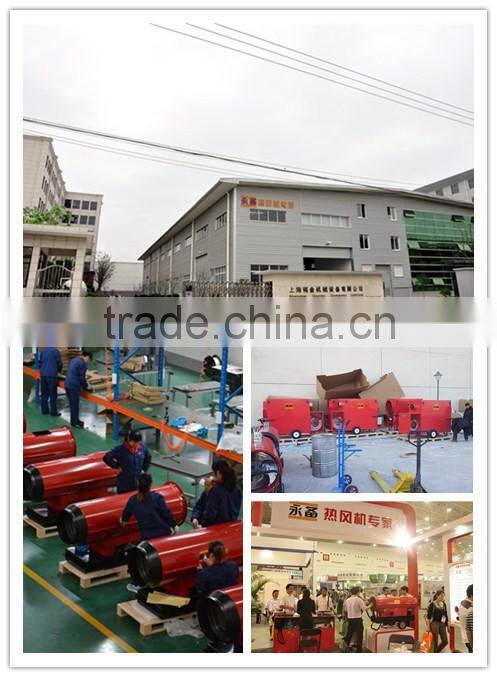

Welcome to visit our factory!
