Home > Products > Kerosene&Diesel Heater > Big Chicken Farm Kerosene Heater
Big Chicken Farm Kerosene Heater
- 10 Unit / Units per Month
- FOB Shanghai
- T/T Credit Card
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Air Heater | Power Source: | Natural Gas |
Place of Origin: | Shanghai, China | Brand Name: | Unotec | Model Number: | Helios150C |
Dimension(L*W*H): | 212 x 84 x142cm | Weight: | 295kg | Voltage: | 380V/50Hz |
Power(W): | 3000W | Certification: | TUV | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Big Chicken Farm Kerosene Heater1. 140kw-195kw high output heater
2. hot air up to 14000m3/h
3. Riello burner

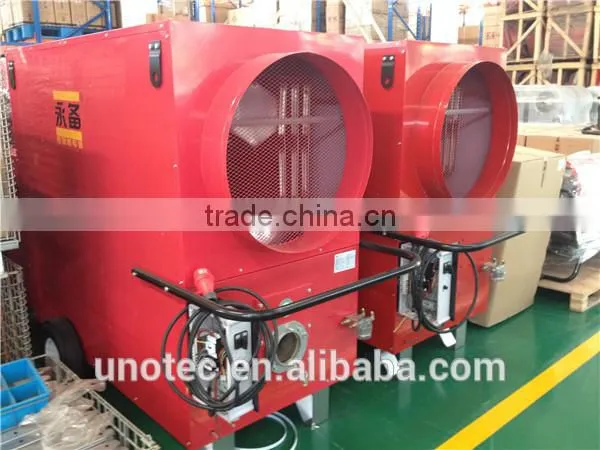

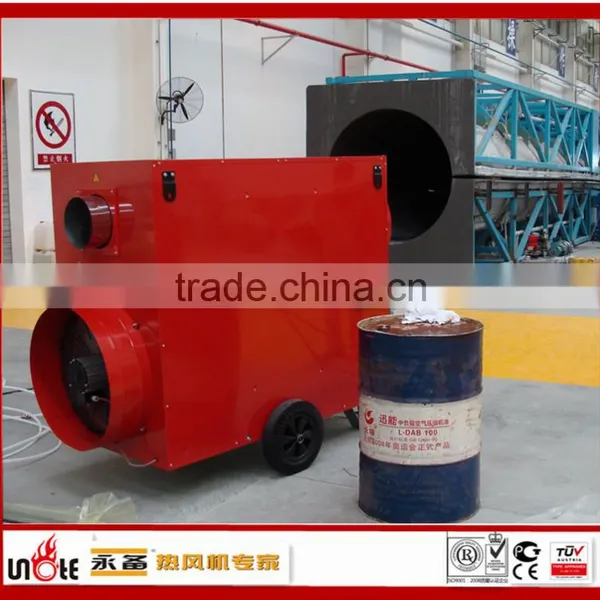

Big Chicken Farm Kerosene Heater
Big Chicken Farm Kerosene Heater(Helios serious) is of top quality of indirect fired heater, having the independent combustor, adopt three pass heat exchanger to make sure more thant 90% heat to be used, this thermal efficiency is the highest one among other congeneric product. Helios can output 10000 cubic meters hot airs per hour, the clean hot air can even be breathed. Helios can work at any climate conditions. As meet ergonomic design, it can be easily moved around. Helios respect strong, efficient and reliable.
Big Chicken Farm Kerosene Heater charactors:
1. Standard configuration is independent diesel burner, can also choose liquefied petroleum gas or natural gas burner

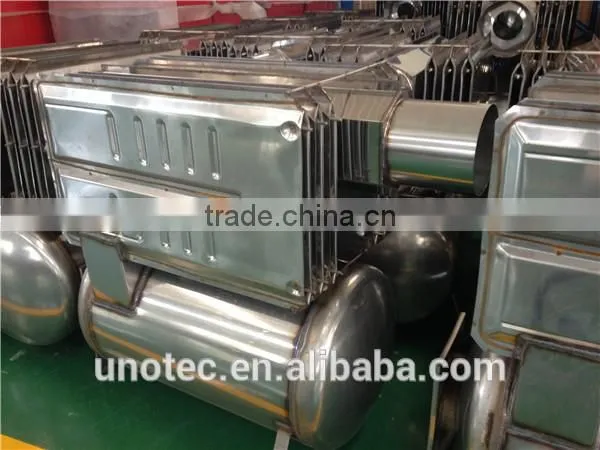

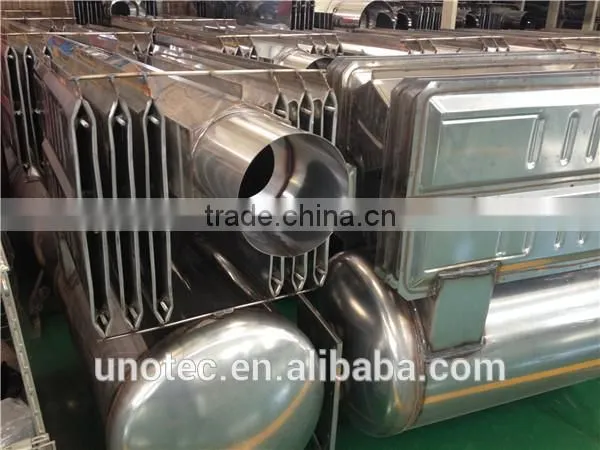

2. Three pass heat exchanger, isolate exhaust air from heated air, keep output clean hot air
3. Waterproofing and insulation Control box, can be used at high humidity environment
4. Simple to use and have multiple safety protection devices
5. Have wheels and handles, easy to move
6. Equipped with axial-flow blower, fan and motor connected directly, motor free maintenance
Big Chicken Farm Kerosene Heater accessory:
1. Fuel preheater: can preheat diesel in low temperatures, make burning sufficient
2. 1000L Explosion-proof oil drum: reach european diesel storage standards, anti-static, can run over a long time
3. PVC air duct: easy to convey hot air to everywhere
4. PE air duct: economic and practical blast pipe
5. Y type air outlet: Can connect two blast pipe the same time
6. 4 direction air outlet: can connect 4 blast pipe the same time
7. Temperature controller: control indoor temperature, save operation cost as well
Big Chicken Farm Kerosene Heater sepecifications:
Model | Helios140 | Helios170 | Helios150C | Helios200C |
Heat output (kcal/h) | 120.400 | 149.200 | 124.700 | 166.700 |
Heat output (Btu/h) | 477.7472 | 592.026 | 494.810 | 661.466 |
Heat output (kw) | 140 | 174 | 145 | 195 |
Efficiency(%) | 89.7 | 90.3 | 90.3 | 90.3 |
Air output (m3/h) | 11000 | 14000 | 11000 | 14000 |
Air pressure(mmH20) | 9 | 9 | 52 | 53 |
Absorbed power(W) | 2300 | 3100 | 2300 | 3100 |
Voltage (V/Hz) | 230/50 | 400/50 | 400/50 | 400/50 |
Weight ( kg) | 235 | 330 | 295 | 400 |
Stack Dia(mm) | 200 | 250 | 200 | 250 |
Air Outlet Dia(mm) | 520 | 690 | 520 | 690 |
Size(mm) | 1945×840×1420 | 2445×1055×1670 | 2120×840×1420 | 2655×1065×1670 |
Helios 150C and Helios 200C was centrifugal fan, have strong hot air output than Axial fans.
UNOTEC is a registered trademark of Shanghai Unotec Co., Ltd. We develop, produce and supply one of the most comprehensive ranges of powerful and professional portable heaters and coolers. As a professional manufacturer we offer you,our customers and sales associates, ideal conditions when it comes to expertise, investment security and optimum service in all areas.The quality of the products is guaranteed by the high standard ofmaterials used and by a continuous research for improvement in the technical field.
Welcome to visit our factory!
