Specifications
1. ISO,OHSAS,SGS certificate guarantee2. plastic Spiral Hose
3. Best quality OEM offered
4. High quality service
Applications:
The hose is widely used for drawing and conveying water,oil and powder in fabrications,agriculture,engineering,food stuffs and sanitation lines.
Characteristics:
Features of suction hose:
1) Made of highly elastic, high strength rigid plastic wire and superior PVC synthetic
material
2) Reinforced rigid plastic wire screw inserted into the inner wall of flexible PVC hose
3) Transparent tube body for high visibility of the fluid conveyance and eased control
of flow rate
4) Light, highly flexible with low bending radius
5) Widely used for the discharge and suction of fluids, gases, oils, and dust in
agricultural pump, oil warehouses, and petrochemical industry
Working temperature:-5°C~65°C
Specifications of PVC SUCTION Hose
British measurement | Metric measurement | W.P. | B.P. | Weight | Volume | ||
I.D. | O.D. | Length | |||||
inch | mm | m | Mpa | Mpa | kg/roll | m3 | |
5/16 | 8 | 14 | 100 | 0.7 | 1.8 | 18.5 | 0.04 |
3/8 | 9 | 15 | 19 | 0.042 | |||
1/2 | 12 | 18 | 0.5 | 1.7 | 22.5 | 0.055 | |
5/8 | 15 | 22 | 30.5 | 0.090 | |||
3/4 | 19 | 26 | 50 | 0.4 | 1.4 | 18 | 0.070 |
1 | 25 | 33 | 27.5 | 0.10 | |||
1-1/4 | 32 | 41 | 40 | 0.3 | 1.1 | 31 | 0.150 |
1-1/2 | 38 | 48 | 42.5 | 0.20 | |||
1-3/4 | 45 | 55 | 54.5 | 0.25 | |||
2 | 50 | 62 | 64.5 | 0.30 | |||
2-1/4 | 57 | 68 | 30 | 54.5 | 0.250 | ||
2-1/2 | 64 | 80 | 20 | 56.5 | 0.250 | ||
3 | 75 | 92 | 0.2 | 0.7 | 70.5 | 0.350 | |
3-1/2 | 90 | 108 | 84.5 | 0.450 | |||
4 | 102 | 120 | 96.5 | 0.60 | |||
5 | 125 | 145 | 10 | 0.15 | 0.5 | 67.5 | 0.80 |
6 | 152 | 172 | 10 | 0.15 | |||
| Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request. |

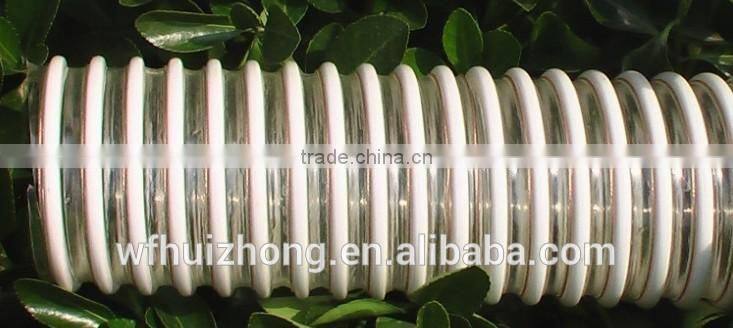

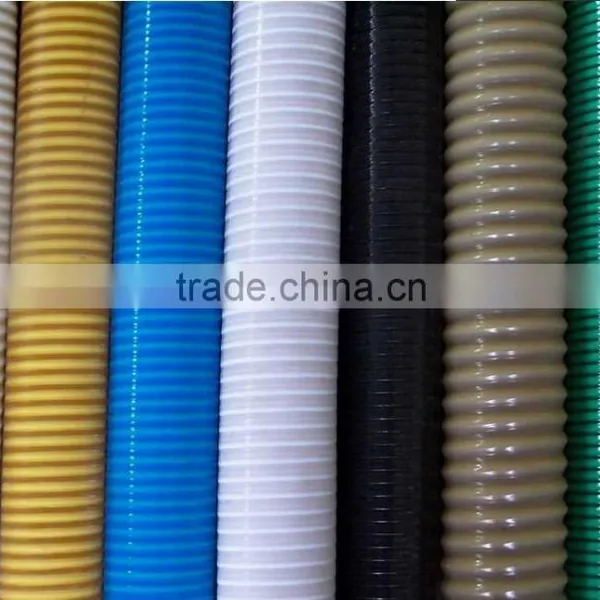

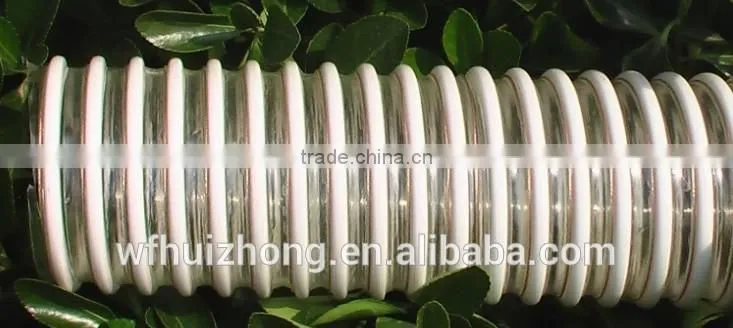

product pictures:
