pvc air duct hoseTransparent and no posion ,
pressure resist,pull-resist,
corrosion-resist.

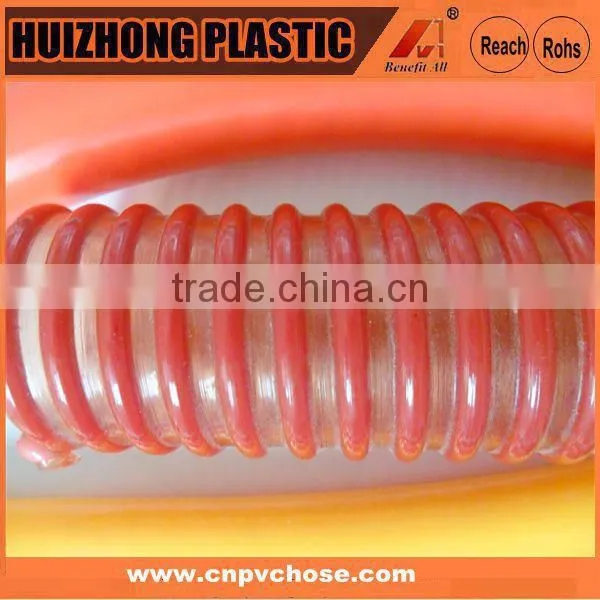

pvc air duct hose
Applications:
1) Used for: drawing and conveying water,oil,air,powder.
2) Used in: factory,agriculture,engineering,foodstuffs and sanitation lines.
3) It is the ideal alternative of rubber hose and metal pipe.
Characteristics:
1) This hose is light,with small bending radius.
2) It has good adaptability to hard weather conditions and minus pressure.
Specifications:
|
|
Metric Measurement | W.P. | B.P. |
Packing Measurement |
| ||
At 23 | ||||||||
Ltem No . | Inch | I.D.mm | O.D.mm | m/roll | MPa | MPa | D×H mm | m3 |
Hz-16×2.5 | 5/8 | 16 | 21 | 50 | 0.1-0.4 | 1.0 | 600×230 | 0.083 |
HZ-19×3 | 3/4 | 19 | 25 | 01.-0.4 | 1.0 | 610×160 | 0.60 | |
HZ-25×3.5 | 1 | 25 | 32 | -0.1~0.6 | 2.0 | 660×200 | 0.087 | |
HZ-32×4 | 1-1/4 | 32 | 40 | -0.1~0.7 | 2.1 | 320×780 | 0.08 | |
HZ-38×4 | 1-1/2 | 38 | 46 | -0.1~0.6 | 1.8 | 730×240 | 0.128 | |
HZ-51×4.5 | 2 | 51 | 60 | -0.1~0.6 | 1.8 | 900×320 | 0.26 | |
HZ-64×4.5 | 2-1/2 | 64 | 73 | 20 | -0.1~0.5 | 1.5 | 820×300 | 0.202 |
HZ-76×5 | 3 | 76 | 86 | -0.1~0.4 | 1.2 | 910×350 | 0.29 | |
HZ-102×5.5 | 4 | 102 | 113 | -0.1~0.3 | 1.0 | 1100×450 | 0.544 | |
Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request.
The special demand about I.D. or O.D. can change According to the requirements of our customers
