PVC Flexible Spiral Suction Hose1.Main Materials:PVC resin
2.Abrasion resistance of suction and blowing hose

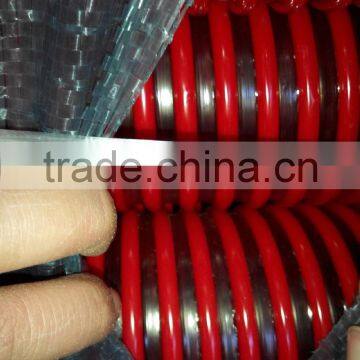

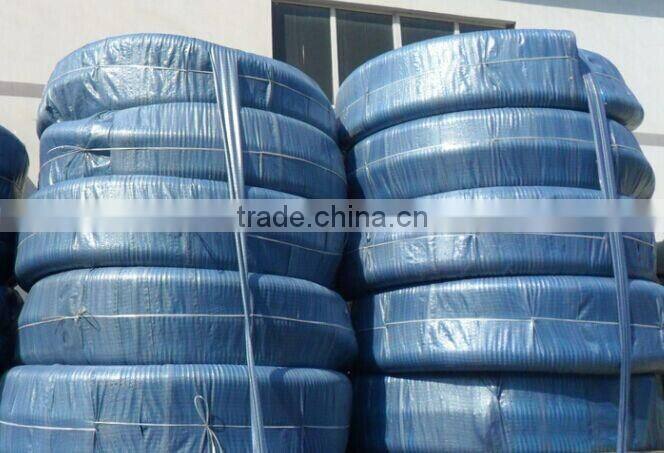

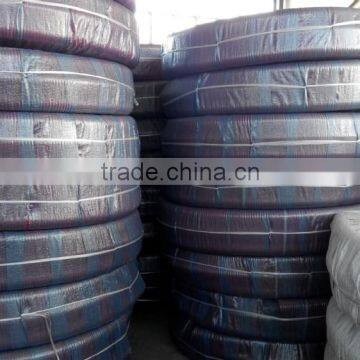

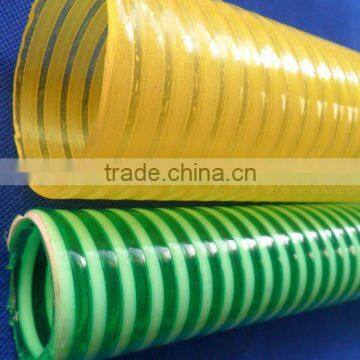

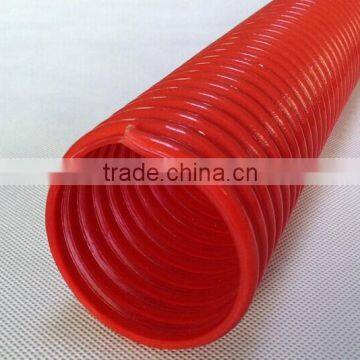

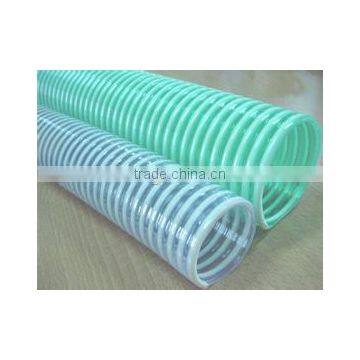

PVC Flexible Spiral Suction Hose
1.Main Materials:PVC resin
2.Abrasion resistance of suction and blowing hose
APPLICATIONS
Good substitute for rubber and metal hose in most application.
Agricultural irrigation, Aquaculture, chemical transfer,water,oil,grain and powder conveying.
CHARACTERISTICS
Being light in weight,with good resistance to the hard weather conditions and minus pressure,and small bending radius.
Excellent resistance to pressure,external impacts, chemical, gases,light acids and saline water.
WORKING TEMPERATURE: -5°C-65°C
Specifications of PVC Suction Hose:
British measurement | Metric measurement | W.P. | B.P. | Weight | Volume | ||
I.D. | O.D. | Length | |||||
inch | mm | m | Mpa | Mpa | kg/roll | m3 | |
5/16 | 8 | 14 | 100 | 0.7 | 1.8 | 18.5 | 0.04 |
3/8 | 9 | 15 | 19 | 0.042 | |||
1/2 | 12 | 18 | 0.5 | 1.7 | 22.5 | 0.055 | |
5/8 | 15 | 22 | 30.5 | 0.090 | |||
3/4 | 19 | 26 | 50 | 0.4 | 1.4 | 18 | 0.070 |
1 | 25 | 33 | 27.5 | 0.10 | |||
1-1/4 | 32 | 41 | 40 | 0.3 | 1.1 | 31 | 0.150 |
1-1/2 | 38 | 48 | 42.5 | 0.20 | |||
1-3/4 | 45 | 55 | 54.5 | 0.25 | |||
2 | 50 | 62 | 64.5 | 0.30 | |||
2-1/4 | 57 | 68 | 30 | 54.5 | 0.250 | ||
2-1/2 | 64 | 80 | 20 | 56.5 | 0.250 | ||
3 | 75 | 92 | 0.2 | 0.7 | 70.5 | 0.350 | |
3-1/2 | 90 | 108 | 84.5 | 0.450 | |||
4 | 102 | 120 | 96.5 | 0.60 | |||
5 | 125 | 145 | 10 | 0.15 | 0.5 | 67.5 | 0.80 |
6 | 152 | 172 | 10 | 0.15 | |||
Weifang Huizhong Plastic Co., Ltd. Although established in 2006, our company develops rapidly and steadily. Our company is renowned for its design and fine quality, thus enabling us have a good reputation in the world. Our products are exported to many countries and areas like Europe, the South America and the Middle East.
Q: What kinds of hose do you produce?
A: We mainly produce pvc hoses, such as pvc braided hose, pvc steel wire hoses, suction hose, lay flat hose,high pressure spray hose, air hose, garden hose, sanitary hose...
Q: Do your hoses come with a quick connector?
A: Sorry, we are professional pvc hose manufacturerin China. Our hoses seldom come with a quick connector. But if you need quick connector, we can help you find the supplier.
Q: Can I customized this kind of products from your factory?
A: Yes, you can. OEM or ODM is welcome.
Q: Can you give me a discount?
A: Sure. You will get our factory price . Our policy is that bigger order quantity, the lower quotation will be. So we will give you a discount according to the quantity.
Q: Can you send us a sample?
A: Certainly, we can send free sampleto you by EMS or DHL. But you have to pay the express fee.
Q: How to get your catalogue?
A: Email us or contact service online now. You also can add my skype laura.qu5
