Specifications
anti-static composite reinforced steel wire hose1.Good adaptability to hard weather
2. Non-toxic ,pvc spiral hose

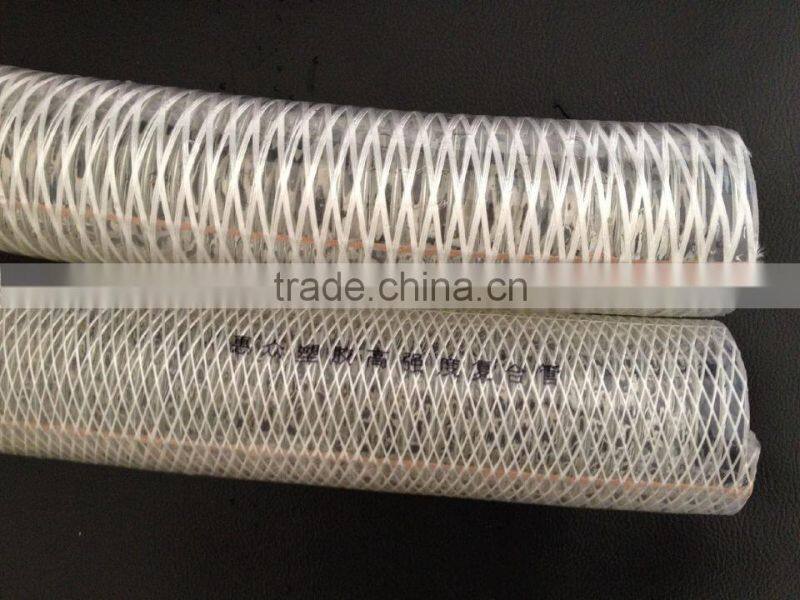

anti-static composite reinforced steel wire hose
Applications:
The anti-static composite reinforced steel wire hose is widely used for drawing and conveying water,oil and powder in fabrications,agriculture,engineering,food stuffs and sanitation lines.
Characteristics:
1,This pvc spiral hose ,with steel wire screwing inlaid in the hose,is light ,transparent ,with small bending radius .
2,It has good adaptability to hard weather conditions and minus pressure,flexible,durable,non-toxic,anti-erosion, ultraviolet light.
3,It can keep its sharp under high pressure or minus pressure conditions.
Working temperature:
-5°C~65°C
Specifications of anti-static composite reinforced steel wire hose :
Metric measurement | W.P. | B.P. | Weight | Volume | |||
I.D. | O.D. | Length | |||||
inch | mm | m | Mpa | Mpa | kg/roll | m3 | |
5/16 | 8 | 14 | 100 | 0.7 | 1.8 | 18.5 | 0.04 |
3/8 | 9 | 15 | 19 | 0.042 | |||
1/2 | 12 | 18 | 0.5 | 1.7 | 22.5 | 0.055 | |
5/8 | 15 | 22 | 30.5 | 0.090 | |||
3/4 | 19 | 26 | 50 | 0.4 | 1.4 | 18 | 0.070 |
1 | 25 | 33 | 27.5 | 0.10 | |||
1-1/4 | 32 | 41 | 40 | 0.3 | 1.1 | 31 | 0.150 |
1-1/2 | 38 | 48 | 42.5 | 0.20 | |||
1-3/4 | 45 | 55 | 54.5 | 0.25 | |||
2 | 50 | 62 | 64.5 | 0.30 | |||
2-1/4 | 57 | 68 | 30 | 54.5 | 0.250 | ||
2-1/2 | 64 | 80 | 20 | 56.5 | 0.250 | ||
3 | 75 | 92 | 0.2 | 0.7 | 70.5 | 0.350 | |
3-1/2 | 90 | 108 | 84.5 | 0.450 | |||
4 | 102 | 120 | 96.5 | 0.60 | |||
5 | 125 | 145 | 10 | 0.15 | 0.5 | 67.5 | 0.80 |
6 | 152 | 172 | 10 | 0.15 | |||
