PVC anti-static fiber reinforced and steel wire hose pipe

Specifications

1.PVC anti-static fiber reinforced and steel wire hose
2.light,transparent,small bending radius,



The  pvc anti-static fiber reinforced and steel wire hose is widely used for drawing and conveying water,oil and powder in fabrications,agriculture,engineering,food stuffs and sanitation lines.

Characteristics:

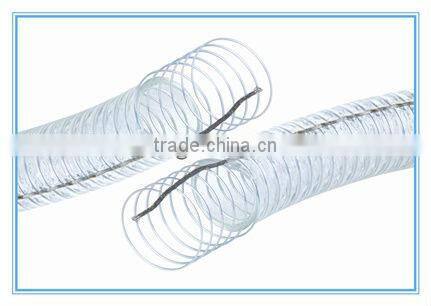

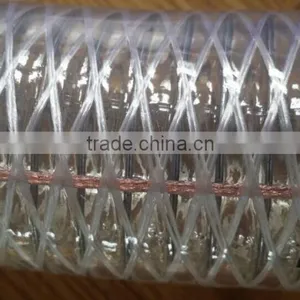

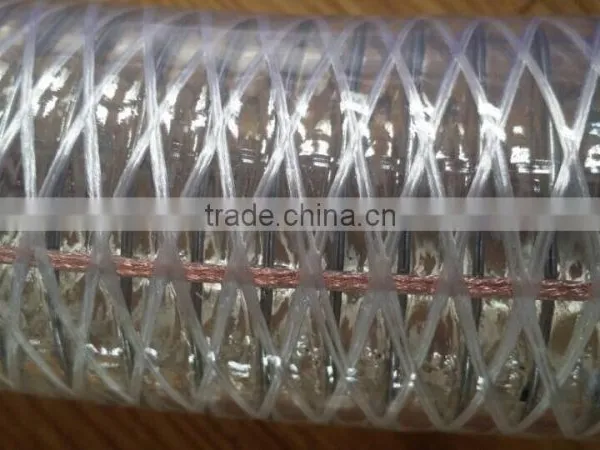

1,This pvc hose ,with steel wire screwing inlaid in the hose,and have a copper wire in it,is Anti-static, light ,transparent ,with small bending radius .

2,It has good adaptability to hard weather conditions and minus pressure,flexible,durable,non-toxic,anti-erosion.

3,It can keep its sharp under high pressure or minus pressure conditions.

Working temperature:

-5°C~65°C

Specifications of PVC Steel Wire Reinforced Hose

British measurement	Metric measurement			W.P.	B.P.	Weight	Volume
	I.D.	O.D.	Length
inch	mm		m	Mpa	Mpa	kg/roll	m3
5/16	8	14	100	0.7	1.8	18.5	0.04
3/8	9	15				19	0.042
1/2	12	18		0.5	1.7	22.5	0.055
5/8	15	22				30.5	0.090
3/4	19	26	50	0.4	1.4	18	0.070
1	25	33				27.5	0.10
1-1/4	32	41	40	0.3	1.1	31	0.150
1-1/2	38	48				42.5	0.20
1-3/4	45	55				54.5	0.25
2	50	62				64.5	0.30
2-1/4	57	68	30			54.5	0.250
2-1/2	64	80	20			56.5	0.250
3	75	92		0.2	0.7	70.5	0.350
3-1/2	90	108				84.5	0.450
4	102	120				96.5	0.60
5	125	145	10	0.15	0.5	67.5	0.80
6	152	172	10	0.15





Note: data in the table is only for reference, when using the wire specifications, pitch are changed, the corresponding wall thickness or meters heavy will have corresponding change. The company can be adjusted according to the customer request.







The special demand about I.D. or O.D. can change According to the requirements of our customers



..
