Home > Products > Pvc High-strength Layflat Hose > PVC LAYFLAT HOSE

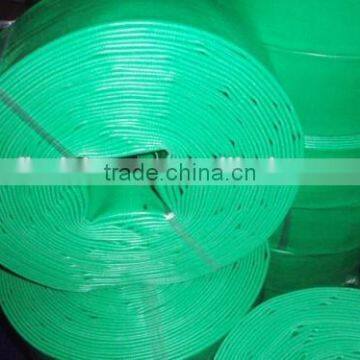

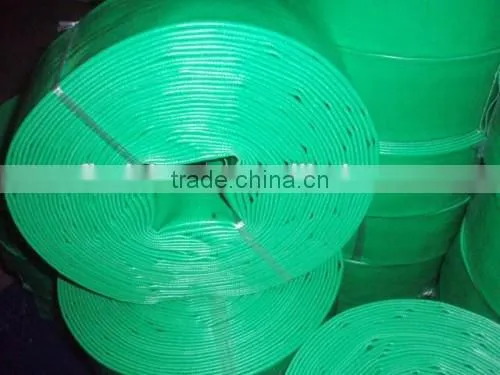

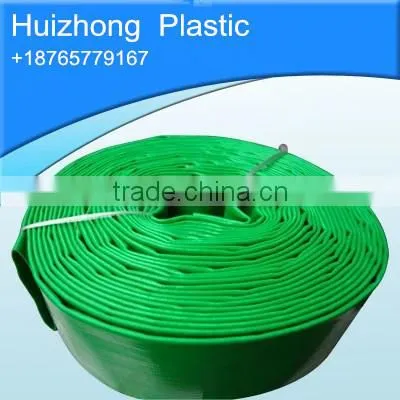

PVC LAYFLAT HOSE
- 30000 Metric Ton / Metric Tons per Month
- Qingdao
- T/T
Product Details
| Place of Origin: | Shandong, China | Brand Name: | huizhong | Model Number: | 25mm-200mm |
| Material: | PVC | Specification: | 25mm-200mm | Length: | 100m,50m,30m,20m,etc |
| Thickness: | 1.2mm-5mm | Standard: | ISO9001 |
Product Description
PVC LAYFLAT HOSE
Pvc High-strength Layflat Hose
1.agricultural pvc layflat hose
2.ISO9001:2008,SGS ,manufacturer,factory,OEM
3.for irrigation
4.light weight,high pressure
5.flexible,non-toxic ,without odor
Applications:
This agricultural pvc layflat hose is an idea products used for drainage in the fields of agricultural irrigation ,forestry sprinker irrgation,construction project,industrial and mining enterprise.
Characteristics
1.The agricultural pvc layflat hose chooses high strength polyester filament and high quanlity PVC

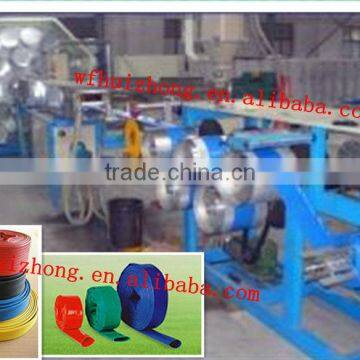

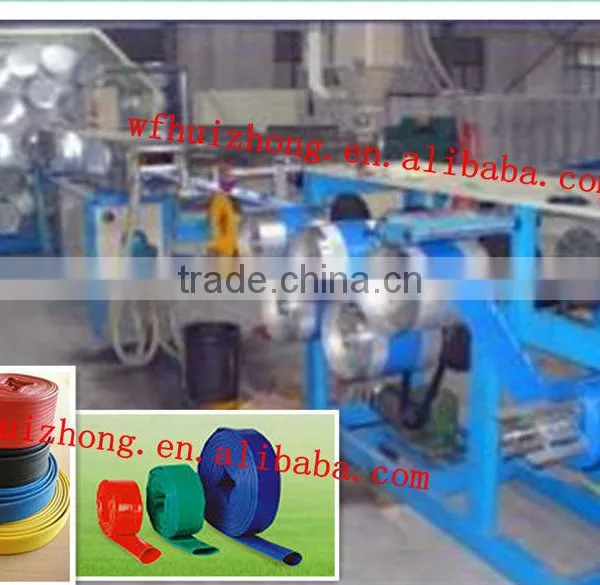

2,The pvc layflat hose is successively winded,parted the thread regularly and molded by plastic coated once.
3,The pvc layflat hose has an attractive appearance,soft surface and light weight,high burst pressure and long service
life,the product is acid&alkali resistance,aging resistance,stretching resistance,anti-wrinkle,non-toxic,flavorless and environmental protection.
Working temperature:
-5°C-65°C
The Specification of pvc layflat hose:
British Measurement | Metric Measurement | W.P. | B.P. | Weight | Maximum elongation at W.P. | Maximum diameter swell at W.P. | ||
I.D. | Tolerance | Length | ||||||
inch | mm | mm | m | Mpa | Mpa | kg/roll | % | % |
1 | 25 | -0/+1 | 100 | 8 | 25 | 15 | 1 | 6 |
1-1/4 | 32 | -0/+1 | 100 | 8 | 25 | 17 | 1 | 6 |
1-1/2 | 38 | -0/+1 | 100 | 8 | 25 | 20 | 1 | 6 |
2 | 50 | -0/+1 | 100 | 7 | 20 | 28 | 1 | 6 |
50 | -0/+1 | 100 | 5 | 16 | 20 | 1 | 6 | |
2-1/2 | 64 | -0/+1 | 100 | 5 | 16 | 38 | 1 | 6 |
64 | -0/+1 | 100 | 3 | 11 | 27 | 1 | 6 | |
3 | 75 | -0/+1 | 100 | 3 | 11 | 46 | 1 | 6 |
75 | -0/+1 | 100 | 3 | 11 | 35 | 1 | 6 | |
3-1/2 | 90 | -0/+1 | 100 | 3 | 11 | 55 | 1 | 6 |
4 | 102 | -0/+1 | 100 | 3 | 11 | 62 | 1 | 6 |
5 | 127 | -0/+1 | 100 | 3 | 11 | 71 | 1 | 6 |
6 | 152 | -0/+1 | 100 | 3 | 11 | 85 | 1 | 6 |
Weifang Huizhong Plastic Co., Ltd. Although established in 2006, our company develops rapidly and steadily. Our company is renowned for its design and fine quality, thus enabling us have a good reputation in the world. Our products are exported to many countries and areas like Europe, the South America and the Middle East.
Q: What kinds of hose do you produce?
A: We mainly produce pvc hoses, such as pvc braided hose, pvc steel wire hoses, suction hose, lay flat hose,high pressure spray hose, air hose, garden hose, sanitary hose...
Q: Do your hoses come with a quick connector?
A: Sorry, we are professional pvc hose manufacturer in China. Our hoses seldom come with a quick connector. But if you need quick connector, we can help you find the supplier.
Q: Can I customized this kind of products from your factory?
A: Yes, you can. OEM or ODM is welcome.
Q: Can you give me a discount?
A: Sure. You will get our factory price . Our policy is that bigger order quantity, the lower quotation will be. So we will give you a discount according to the quantity.
Q: Can you send us a sample?
A: Certainly, we can send free sampleto you by EMS or DHL. But you have to pay the express fee.
Q: How to get your catalogue?
A: Email us or contact service online now. You also can add my skype laura.qu5
