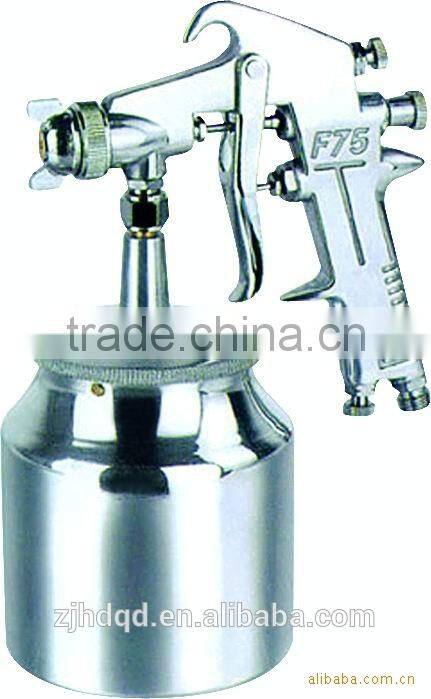

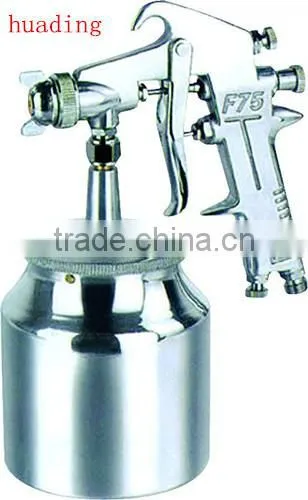

Help CenterPaint Spray Gun , Car Spray Paint Gun,F-75 .electric Paint Spray Gun
Related Products
-
Paint Spray Gun , Pneumatic Tools ,air Spray Paint Gun With High QualityUS$ 1.2 - 3MOQ: 500 Pieces -
Paint Spray Gun , Spray Paint Gun With High Quality ,W-71 StyleUS$ 45 - 50MOQ: 500 Pieces
-
Aotu High Quality Air Tools ,wall Paint Spray Gun ,CL-001 Air Spray Gun, Paint Spray GunUS$ 55 - 70MOQ: 500 Pieces
-
Aotu High Quality Air Tools ,professional Paint Ball Gun ,CL-001 Air Spray Gun, Paint Spray GunUS$ 55 - 70MOQ: 500 Pieces
-
UlemaALBB Spray Gun ,W-71-S Paint Spray Gun ,professional Paint Ball Gun .US$ 55 - 70MOQ: 500 Pieces
Specifications
air pressure :3.0-5.0/45-80high quality for furniture coating
all kinds of sizes
Detailed description:
Trilogy AAA gun, with its excellent quality and convenient to use performance, applicable to a variety of paint coating applications.The gun USES the new type of injection technology, to provide you with excellent atomization performance, and there are many kinds of nozzle to choose from.In addition, the Trilogy AAA gun equipped with single round, flat spray graphics adjusting knob, to adjust to fit a variety of high quality coating requirements.
Spray gun design taking into account the ease of operation, only need a very low trigger, which relieves the arm fatigue, reduce the work intensity of the operators.Its lightweight design and center of gravity balance to further improve the use of spray gun comfort and handling of human body engineering.In addition, the spray gun includes an external adjustable seal set, and from the spray gun gun back remove the needle, easy to clean and maintain.
Trilogy AAA gun, there are two configuration options - American and metric - pressure can be up to 3625 psi (250 bar).
Features and benefits
1. The new type of injection technology -- good atomization effect and excellent surface spraying quality.
2. The spray graphics adjustment knob - to achieve a variety of advanced spray function;
3. The external adjustable seal set and gun needle from the back of the removal, easy to maintain;
4. Very low strength of spray gun trigger - reducing operator fatigue;
5. Light and balanced design - to enhance the operability and comfort;
6. A variety of nozzle/filter selection - to achieve more application functions.
Data:
Type |
American Style High Pressure Spray Gun PQ-2 |
Pattern width(cm) |
About 240mm |
Diameter Nozzle |
1.8--2.0MM |
Air Consumption |
10Cfm |
Type of Feed |
Suction |
MOQ |
1 Piece/Pieces welcome your trial order |
Qty/Ctn |
10pcs |
N.W/G.W |
11KG /10KG |
Carton size |
59 x 39 x 33cm |
Optimal working pressure(bar/psi) |
4/60 |
Packing size |
color box |
Port |
Ningbo/Shanghai |
Delivery Leadtime |
7-10days |
Using Tips:
A:Use Clean air filter through air dryer and air filter.
If not,dirty air can cause painting failure .
B:When you use ths gun for the first time after purchasing,adjust fluid needle packing set.
Slowly tighten fluid packing seat and loosen a bit when fluid needle set does not return smoothly,and adjust so that fluid needle set smooth moves.
C:If you use this gun for the first time after purchiang,clean fluid passages spraying thinner and remove rust preventive oil.
If not ,remaining preventive oil can cause painting failure such as fish eyes.
D:Firmly fix hose or container to spray gun
If not ,disconnection of hose and drop of container can cause bodily injury.
company information :
COMPANY : Zhejiang Sanye Machinery Co.,Ltd
TEL : 0086-575-87633579 Fax:0086-575-87606825
ADD: Jinjiazhan ,Ruanshi town,Zhuji City,Zhejiang Province
