Specifications
1) Large and clear LCD display2) SMT placement machines, sophisticated technology
Specification:
Product Name |
Temperature Control Controller |
Cable length |
1m |
Size |
86 x 71 x 29 mm ( L*W*H ) |
Install Window Size |
70.5 x 28.5 mm |
Data Storage |
Yes |
LCD Numbers Color |
Red |
Working voltage |
12V |
Rated current |
10A |
Power consumption |
<3W |
Temperature Measuring Range |
-58 ~ 194 deg F |
Control temperature range |
-58 ~ 194 deg F |
Temperature measuring difference |
±1 deg F |
Resolution |
1 deg F |
Accuracy |
± 1 deg F (-50 ~ 70 deg F) |
Sensor Type |
NTC (10K/3435) |
Working temperature |
32 ~ 122 deg F |
Storage temperature |
-14 ~ 140 deg F |
Noted |
Wiring diagram as the menu shown |
Package |
|
Description:
This Temperature Controller is an excellent and convenient multifunction device for controlling temperature. With large and clear LCD display for better readability. Wide temperature measuring range. Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. Used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems. This device is also suitable for Laboratories,Gardening,livestock and other temperature-controlled systems. The majority of machine components using SMT placement machines, sophisticated technology. Accessory ONLY!

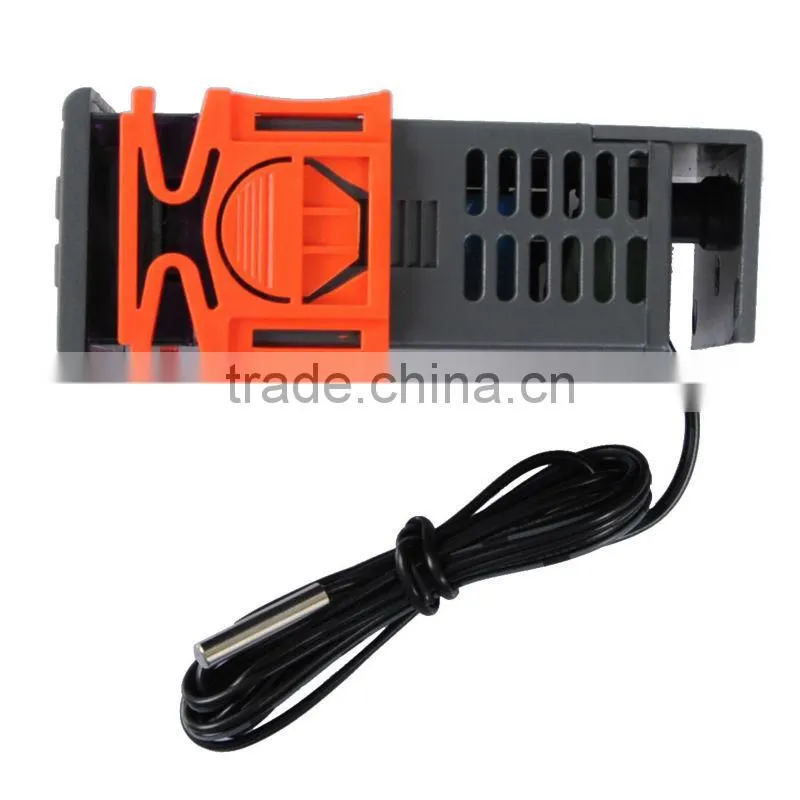

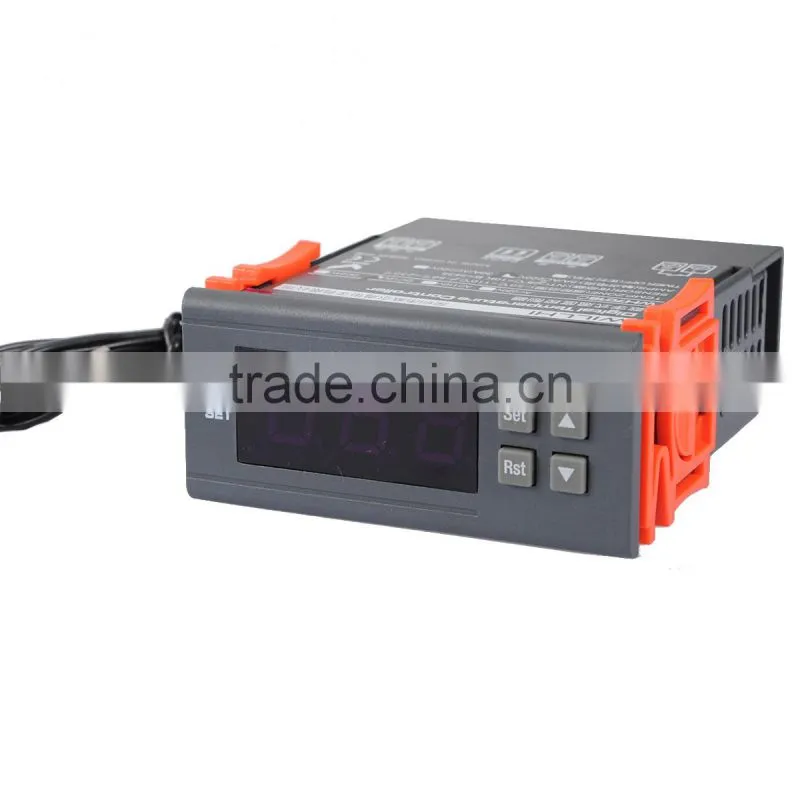

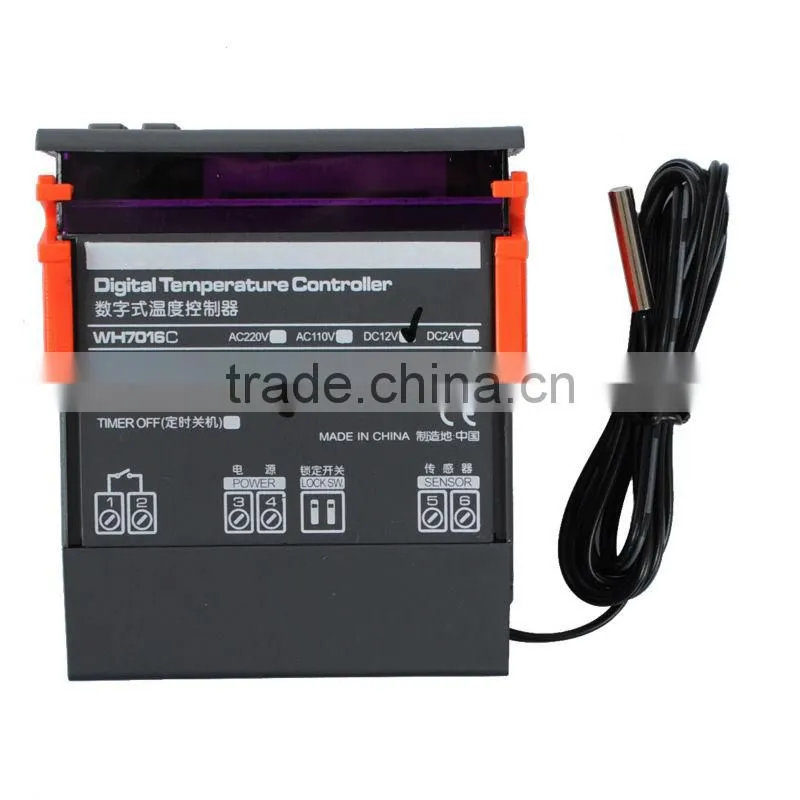

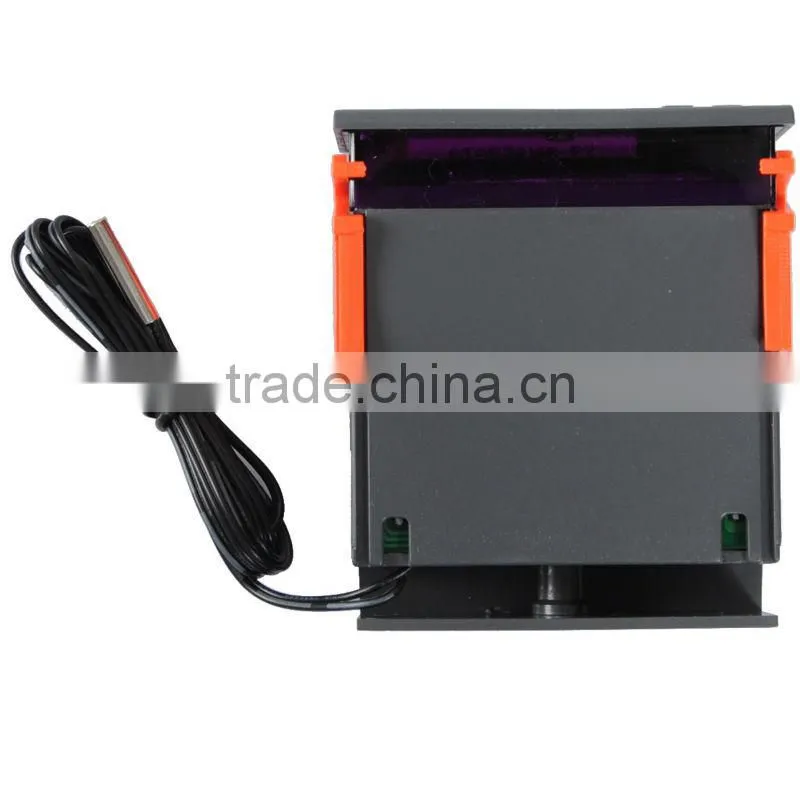

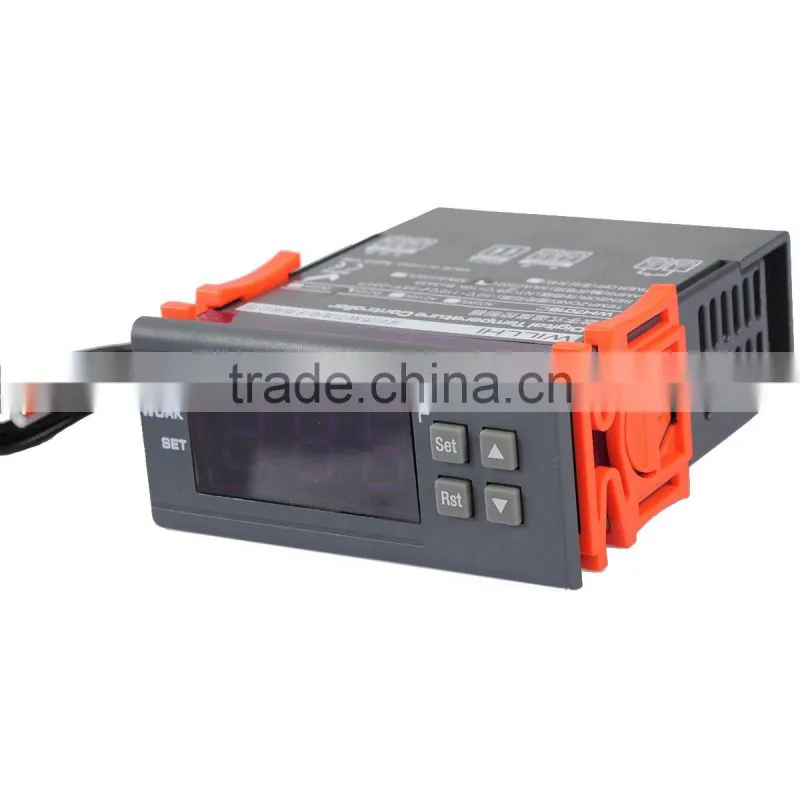

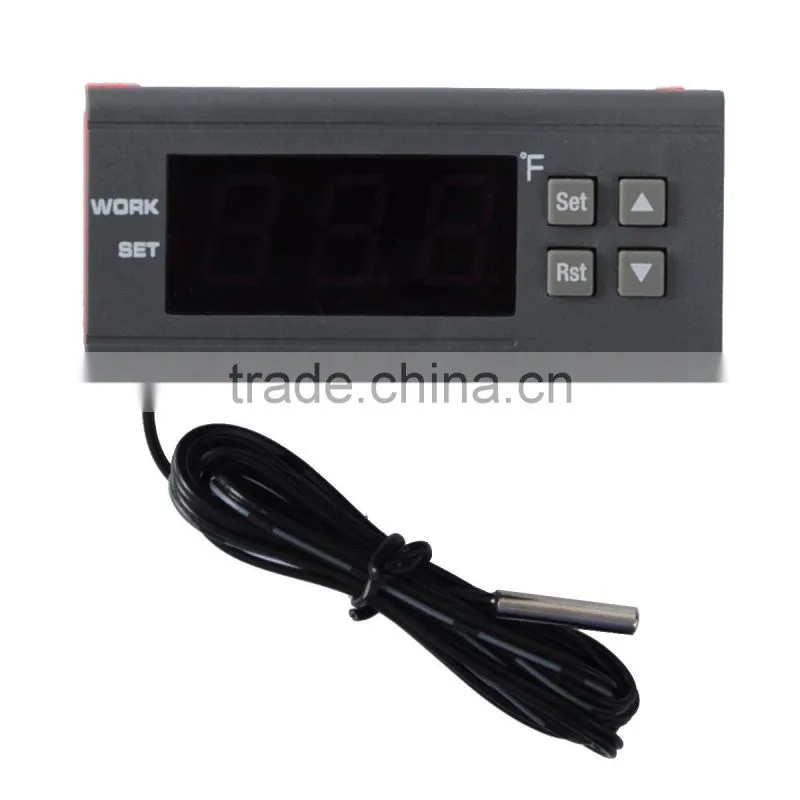

Product Shows:
Shipping Method:
We can offer you Express like DHL, UPS, EMS when you make a relatively small order.
The ocean shipping is also available when you place a big order.
The customers can use their own freight forwarder account.
Package Detail:
We pack each item with OPP bag, then put all items in one box(around 300-500pcs per carton). And the box will be taped to protect the parcel from water stains or something others.
