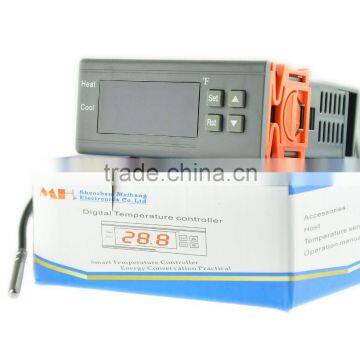

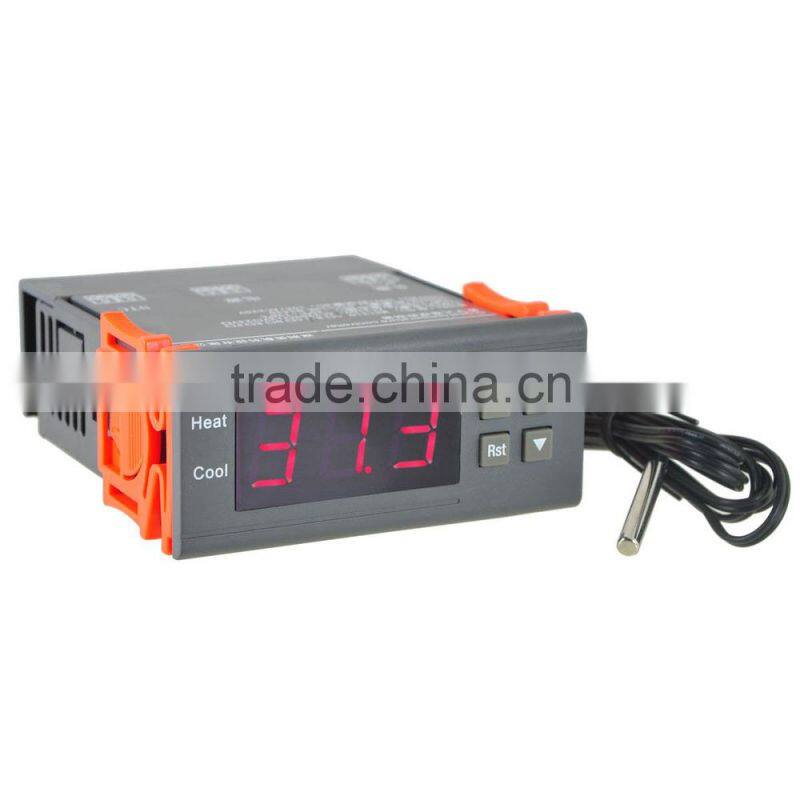

High quality AC 110V Digital Fahrenheit Temperature Controller with Thermostat Sensor
Description:
A mini digital temperature controller. With large and clear LCD display for better readability. Wide temperature measuring range. Heating and cooling control. Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. Used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specinfication:
Condition: New
Quantity: 1pc
Rated voltage: 110V
Maximum current: 10A
Cable length: 1m
Data Storage: Yes

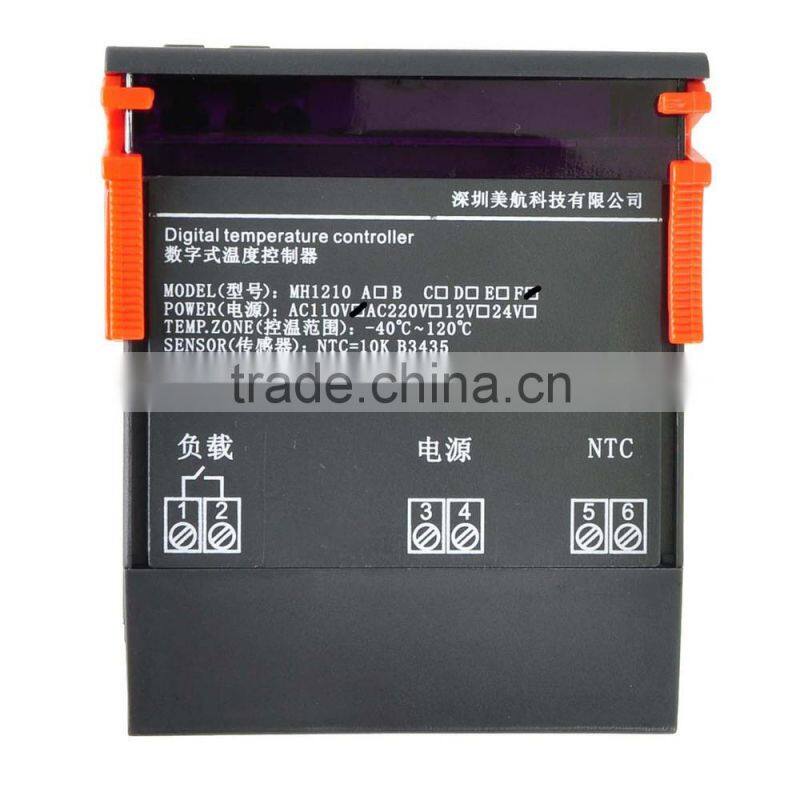

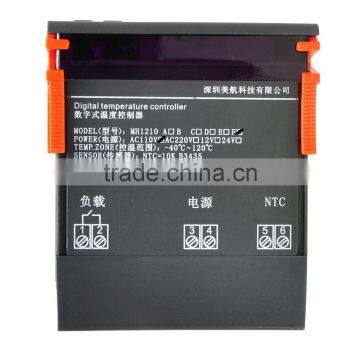

Wiring diagram as the menu shown
LCD color: Red
Working voltage: 110V
Rated current: 10A
power consumption:<3W
Measurement range: -58F - 194F
Measurement precision: 0.1F
Measurement error: 1F
Control range: -58F - 194F
Control precision: 1F
Working temperature: -30F - 150F
Temperature sensor: NTC 25C=10K B3435
Weight: 201g
There's 1 relays on this controller. Refrigeration and heating mode can be set through the menu. Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
For example
, If you choose Heat mode(Set HC to H). Set Temperature Value to 80°F. Set CP value to 20°F.
The relay will be connected when the temperature drop to 60°F(set temperature value-CP value). And the relay will be disconnected when the temperature reaches 80°F.
If you choose Cool mode(Set HC to C). Set Temperature Value to 80°F. Set CP value to 20°F.
The relay will be connected when the temperature reaches 100°F(set temperature value+CP value). And the relay will be disconnected when the temperature drops to 80°F.
Our video shows exactly how this functions.
Size:
Front panel size: 75(L) x 34.5(W)(mm)
Mounting size:71(L) x 29(mm)
Product size:75(L) x 34.5(W) x 85(D)(mm)

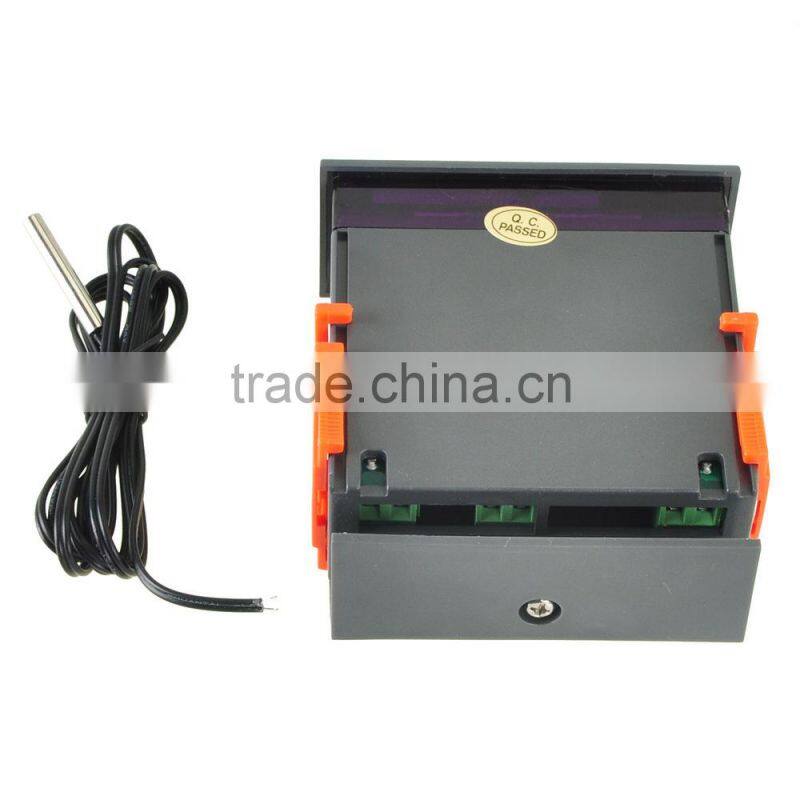

Sensor Cable length: 1m (include the probe)
