New 2 Wire DC 7-120V Mini LED Panel Digital Display Voltage Meter Voltmeter
Display DC voltage red LED display automatically, can be clear at a glance. It is widely used in equipment and electromechanical device. Cars, boat, planes etc. for measuring current, voltage. Monitoring PC & electrical system. It's small size and easy installation. This panel is a non-oem, generic product. All trademarks and copyrights are the property of their respective owners. Accessory, only products listed are included. This product is 100% brand new.
Features
- This instrument test voltage, power supply is taken from the test loop. No additional power supply.
- The the instrument test voltage supply range: DC7 - 120V, The reverse does not burn.
- Note: The maximum input voltage can not exceed 120V, otherwise there is the danger of burned
- The instrument is equipped with two wiring. Convenient access to car/ battery car/ motorcycle car line, Used to monitor the battery voltage, Grasp the battery voltage state, can also be used for other products, the use of Voltage measurement.

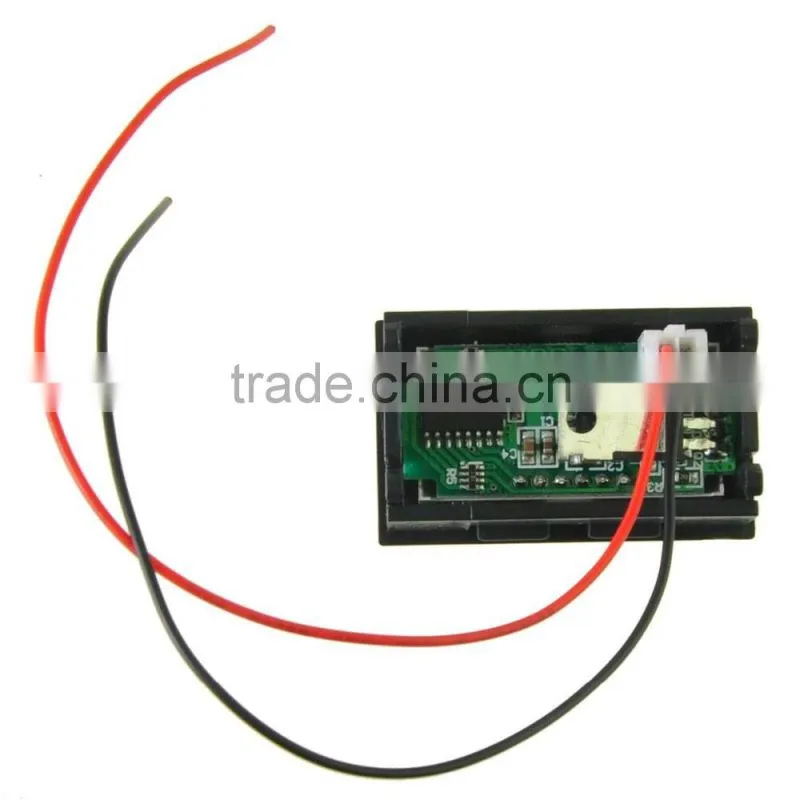

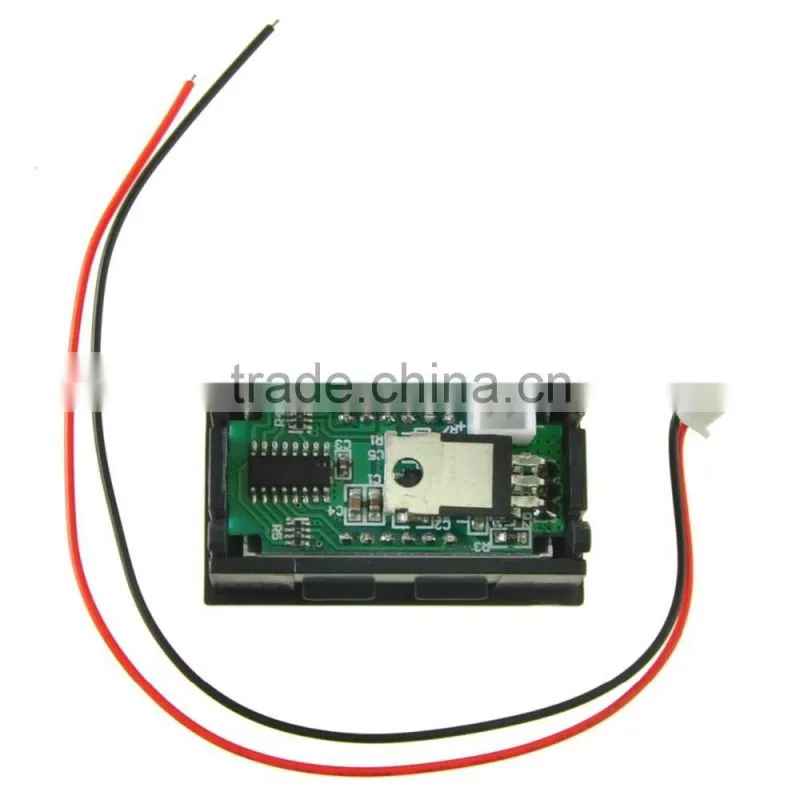

Wiring Method
- Black lines: public test end
- Red line: measuring the positive voltage input terminal
- Supply voltage: 7 - 120V (wide range).
- Test voltage: 7 - 120V
- Minimum resolution: 0.1V
- Test current range: 10A (requires an external shunt). Not include.
- Operating Current: <30mA

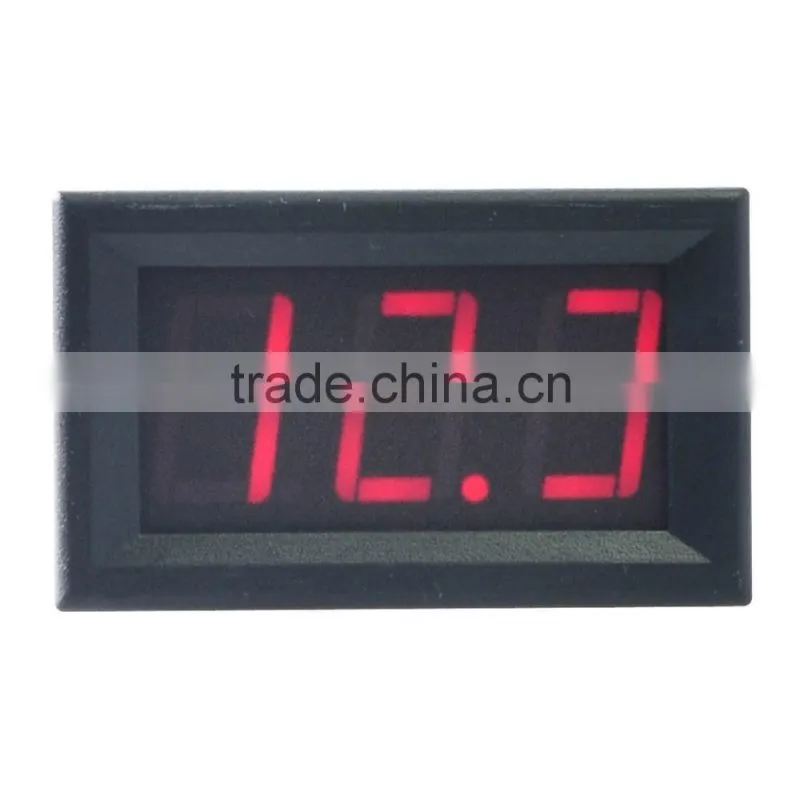

- Display: 0.56" LED
- Color: Red
- Dimensions: 48 × 29 × 22 mm
- Mounting cutout: 45.5 × 25.5 mm
- Measurement rate: 200mS/ times
- Measurement accuracy: 3%
- The minimum Operating voltage: + 7 V
- Maximum working voltage: +120 V
- Operating temperature: -10 to +65
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 - 106kPa
- Sun exposure: no direct exposure
Package Contents
- 1 x DC 7V - 120V 10A LED Digital Voltmeter
- 1 x Install cable
