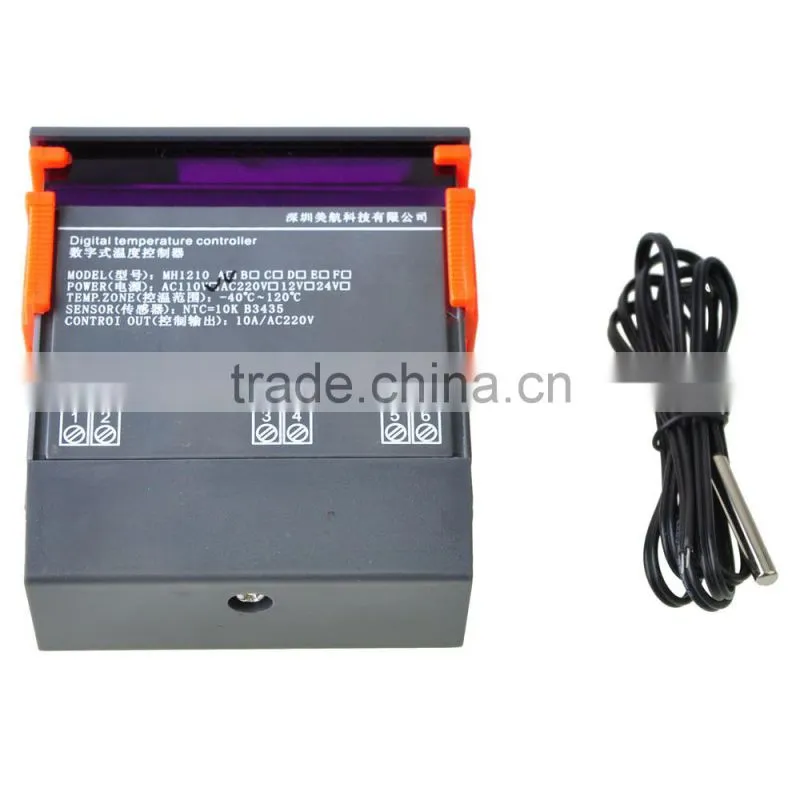

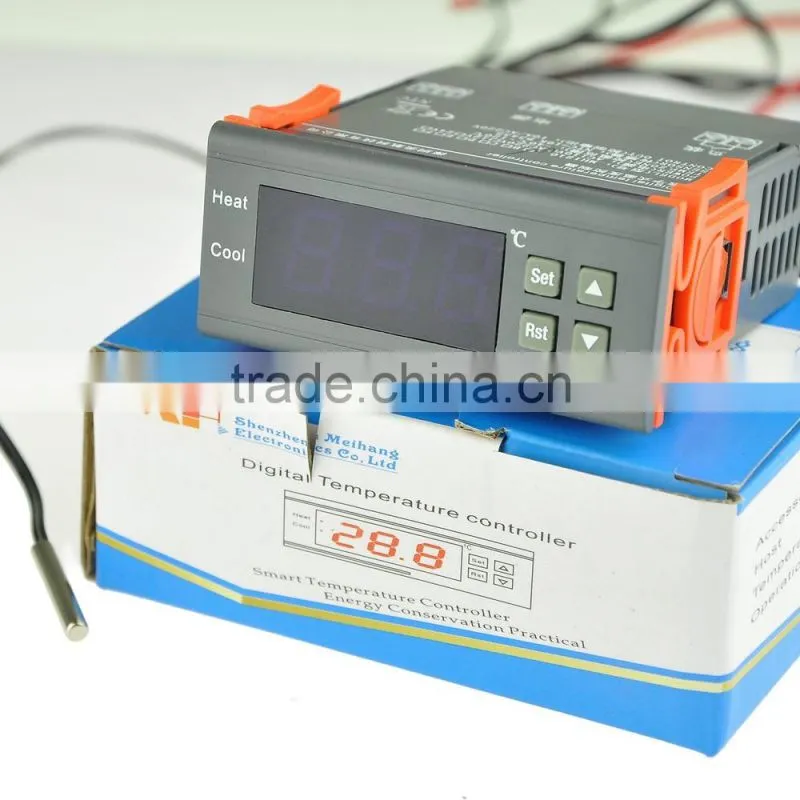

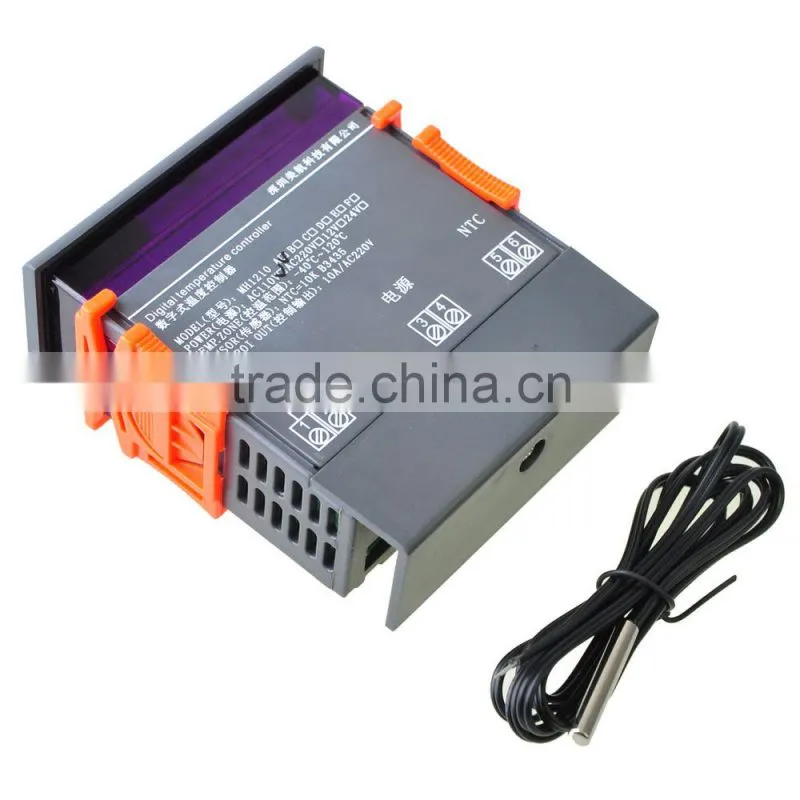

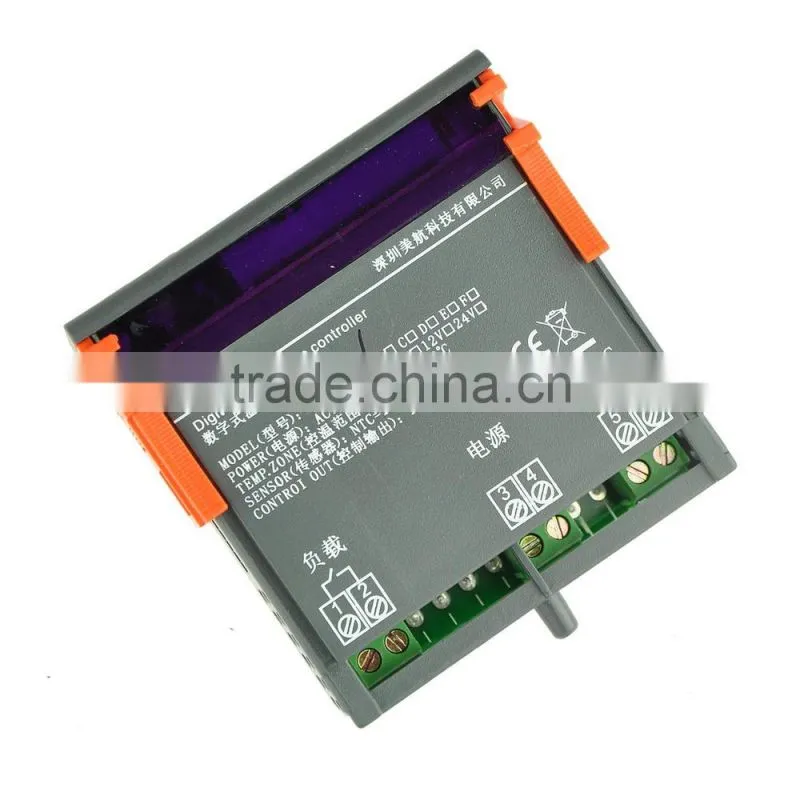

AC 110V LCD Digital Microcomputer Temperature Controller Thermostat Control

110V LCD Digital Microcomputer Temperature Controller Thermostat Control Relay

Description:

This item gathers a wide range of modern heating and cooling technology, small size, simple operation, accurate measurement and anti-interference ability, etc. It suits most users in different environments for automatic intelligent control system of many kinds of refrigerations, heating equipments. Refrigerations and heating mode could be set through the menu, the procedure has been set the power outage permanent function.

Features:

When the sensor short circuit or detect the environment temperature is higher than the uppper temperature limit of 110 degree, delink and display HHH and stop the output load;

When the sensor works normal and detect the environment temperature is lower than floor temperature limit of -50 degrees, blink and display LLL and stop the output load.

Specinfication:

• Measure range: -40°C ~+ 120°C
• Slew range of temperature: 1°C-30°C
• Resolution: 0.1°C
• Accuracy:± 1°C (-50°C~70°C)
• Power supply: 110V AC, 50/60Hz
• Power consumption: less than 3W
• Relay contact capacity: Cool(10A/250VAC); Heat(10A/250VAC)
• Data retention: Yes
