AC 110V Digital Temperature Temp Controller Incubation Thermostat Switch Sensor

Specifications

AC 110V Digital Temperature Temp Controller Incubation Thermostat Switch Sensor

Description:

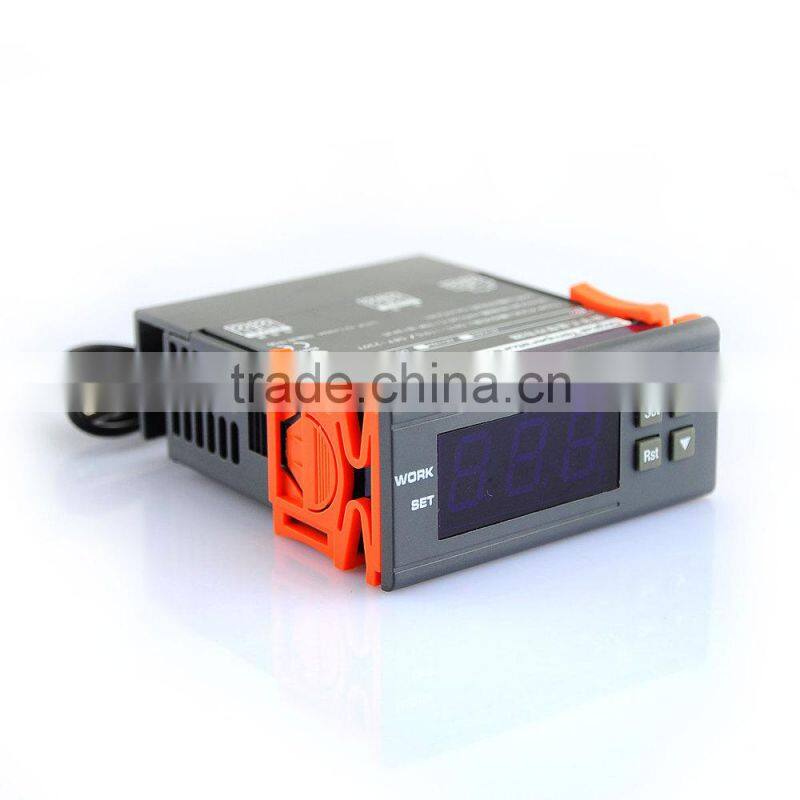

A mini digital temperature controller. With large and clear LCD display for better readability. Wide temperature measuring range. Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. Used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems. Contents listed ONLY! Others not included.

Specinfication:

• Working voltage: 110V

• Rated current: 10A

• power consumption:<3W

• Measurement range: -58F - 194F

• Measurement precision: 0.1F

• Measurement error: 1F

• Control range: -58F - 194F

• Control precision: 1F

• Working temperature: -30F - 150F

• Temperature sensor: NTC 25C=10K B3435

Parameter:

• Condition: New

• Quantity: 1pc

• Rated voltage: 110V

• Maximum current: 10A

• Cable length: 1m

• Size: 3" x 3.8" x 1"


• Data Storage: Yes

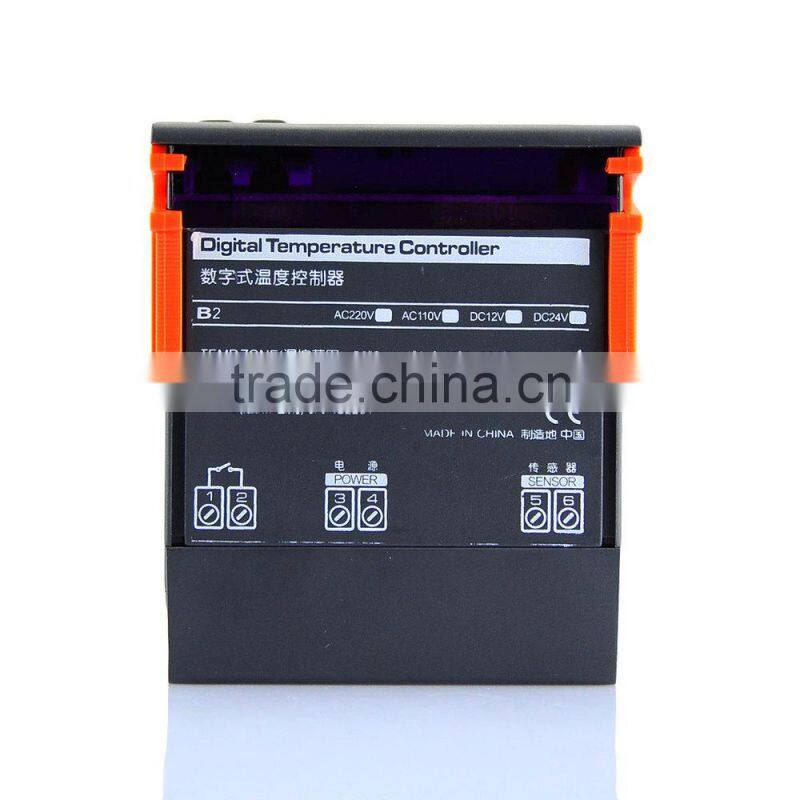

• Wiring diagram as the menu shown

• LCD color: Red

If you are interested in our product,pls don't hesitate to contact me.
