5000 square meters pre engineered steel structure factory building
Huayuan Steel Structure Co, .Ltd, established in September 2000 with manufacturing base in Liaocheng city, Shandong Province, is a new professional high-tech enterprise that specialized in designing, manufacturing, processing and installing of various steel structure projects, prefab houses and container houses.
We are professional manufacturer of steel structure with 15 years experience, and we were awarded state class one qualification(top class) for steel structure production & contracting, also approved by ISO and CE EN1090 certification. Huayuan Steel Structure Co, .Ltd is always committed to the development of steel structure.

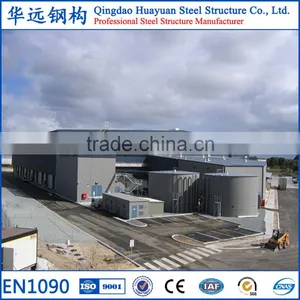

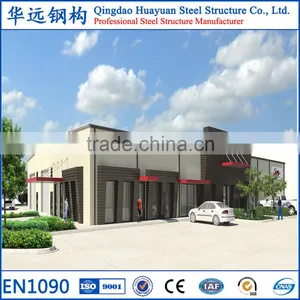

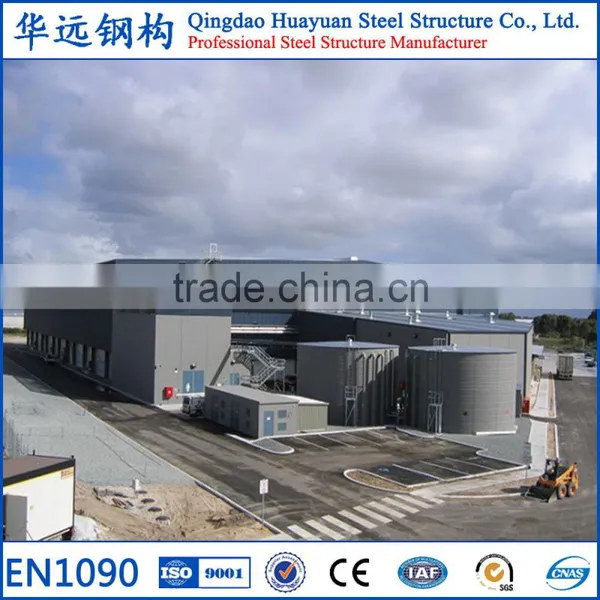

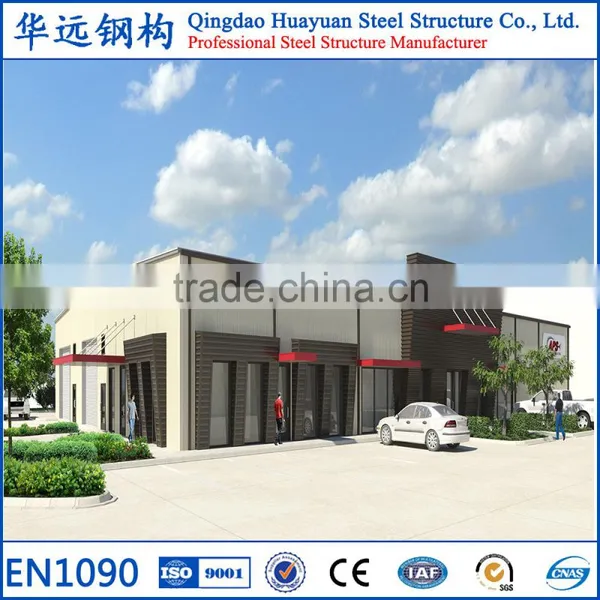

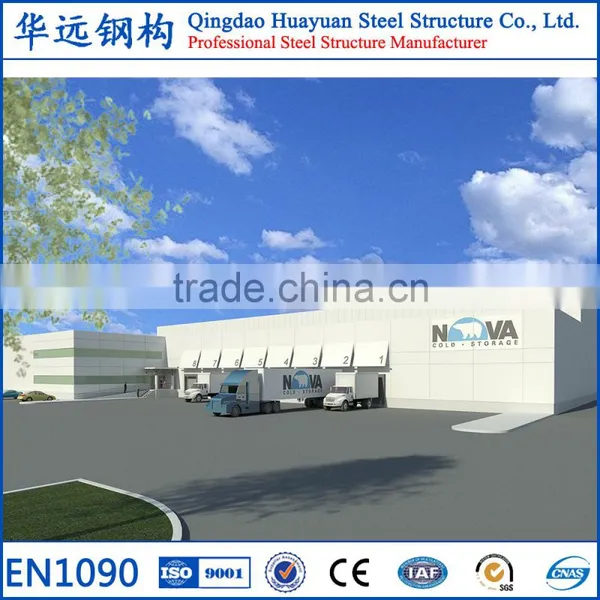

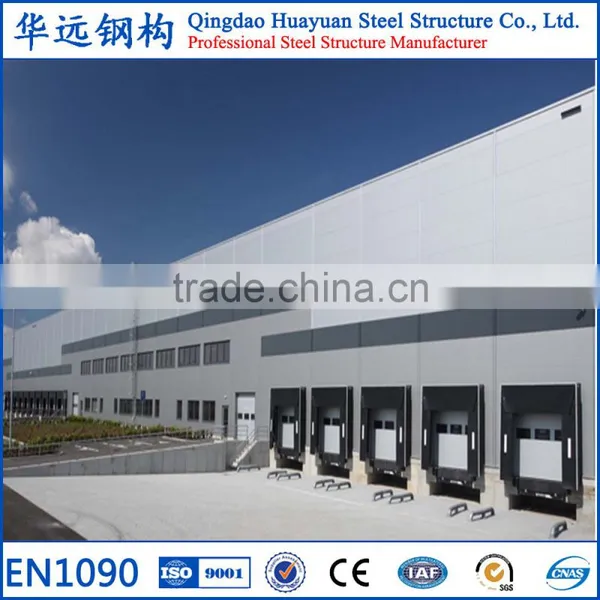

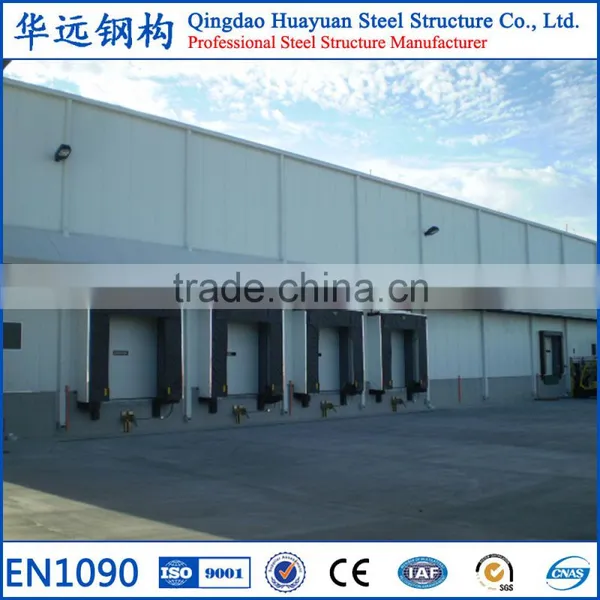

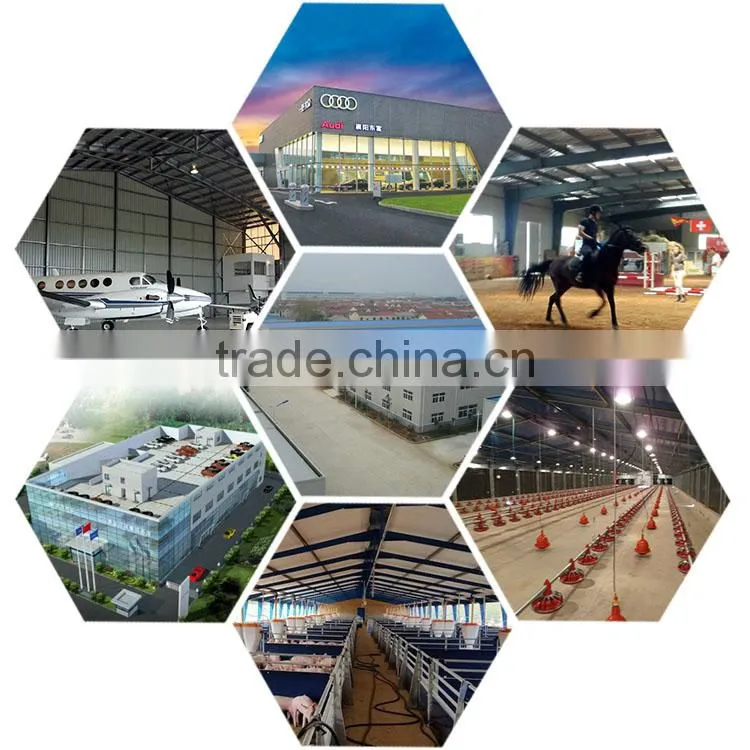

Steel structure building is composed of light/heavy steel frame and sandwich panel cladding for wall/roof, it is widely used for steel structure warehouse, steel structure workshop, multi-storey building, cold storage, car exhibition hall, aircraft hangar, shopping mall and so on.
Steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof an walls using a variety of panels and other components such as windows, doors, cranes, etc.. Steel structure building is widely used in warehouses, workshops, large factories, etc.
Characteristics
Wide span: single span or multiple spans, the max span clear distance is 36m without middle columns.
Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
Fast construction and easy installation.
Long term service life: more than 50 years.
Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
Material list and specification:
Main Steel Frame System | |
Main structure |
H section steel Q345, alkyd painting, two primary painting, two finish painting. |
Roof purlin |
XZ160*60*20*2.5, galvanized |
Wall purlin |
XZ160*60*20*2.5, galvanized |
Intensive bolt |
Grade 10.9 |
Turn buckle bolt |
M20+2, steel Q235, processing |
Anchor bolt |
M24, steel Q235, processing |
Ordinary bolt |
Galvanized bolt M20 |
Ordinary bolt |
Galvanized bolt M12 |
Brace nut |
Galvanized bolt M12 |
Bracing System | |
Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover |
0.4mm color plate, angle Alu. |
Fittings & accessories |
Nails, glue etc. |
Unpowered ventilator |
Diameter Φ600, stainless steel |
Skylighting band |
1.2mm FRP, double layer |

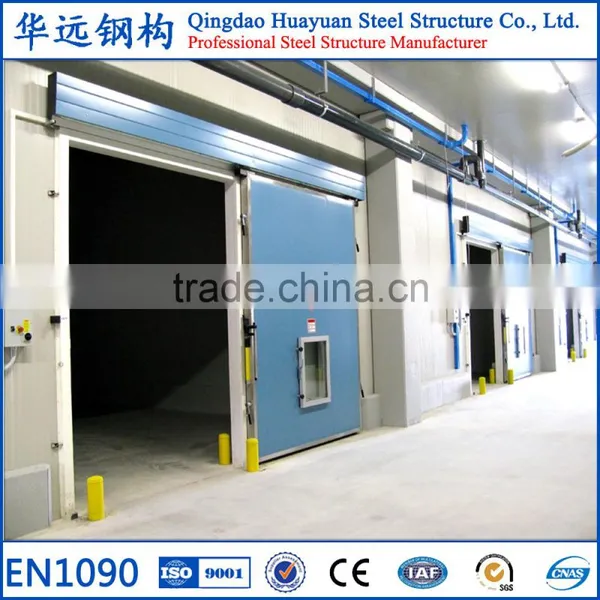

Sliding door |
sandwich panel door |
Roof drainage system | |
Gutter |
0.8mm color steel plate |
Rainspout pipes |
Φ160 PVC pipe |
We can produce various steel structure components like welded H beam, box column, grid column, round column etc..
3 heavy steel structure production lines
5 light steel structure production lines
5 C section steel production lines
2 sandwich panel production lines
production capacity of steel structure components: 12000 tons
production capacity of various sandwich panel: 200,000 m2
total area of finished steel structure projects: 1.2 million m2
Steel structure columns and bems will be loaded into 40ft OT container
Sandwich panel, windows, doors and other accessories will be loaded into 40ft HQ container.
What’s your company strength?
Huayuan has strong capability of design and production for steel structure. At present, we have 24 constructors, 20 senior engineers, 36 assistant engineers as well as 120 professional skilled workers with intermediate and above technical certificate. With abundant technical strength, we are large scale steel structure domestic enterprise integrating professional design, modern production equipment, scale production and integral construction.
What are your main markets?
Guided by global field of vision, our products have been exported to many countries and regions with its good quality and good service, such as France, UAE, South East Asia, Africa and so on. We will be glad to establish sincere business cooperation with you in the near future.
Do you offer designing service for us?
Yes, we have more than 20 design engineers. We could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc..
What is the delivery time?
Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposite.
Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training for you. We can also send our professional technical engineer to supervise installation on site overseas, and we have our own abroad guiding installation team consisting of more than 30 people.
