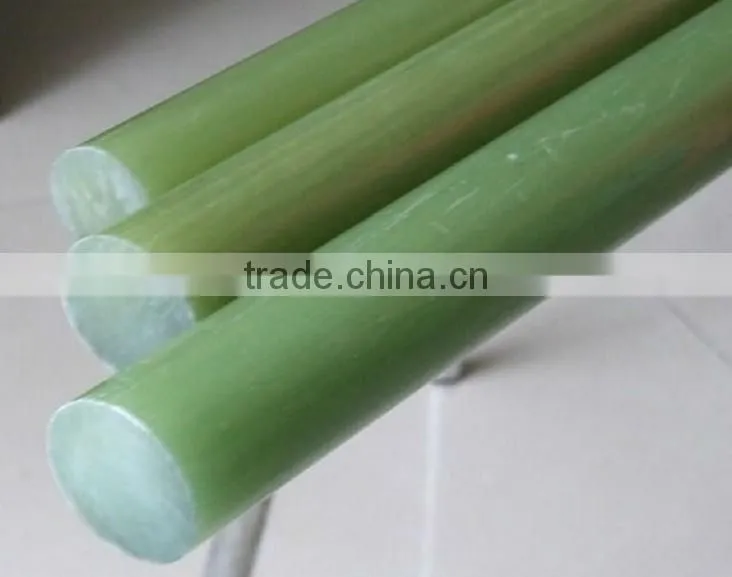

Help CenterDurable High-strength Solid Rods/fiberglass Rod/frp Round Bar
Related Products
-
Fiberglass Bar Frp RodUS$ 0.13 - 0.6MOQ: 1000 Pieces -
Fiberglass Circular Tube/ Frp Circular Tube/glass Cylinder TubeUS$ 12 - 13MOQ: 100 Meters
-
FRP Tubing/hollow Circular Tube/frp PipeUS$ 8 - 30MOQ: 200 Meters
-
Made in China Glass Fiber Tube,grp Tube,frp Circular PipeUS$ 2 - 5MOQ: 200 Meters
-
High Strength Glass Fiber Pipe Sewage TubeUS$ 50 - 100MOQ: 200 Meters
The product description
Glass fiber reinforced plastic round rod is composed of unsaturated polyester resin, continuous glass fiber yarn, glass fiber mat, pultrusion process control, process is irreversible, it can't melt or form again, again has high strength, light weight, antiseptic, beautiful, impact resistance and other characteristics, widely used in petroleum, chemical industry and other corrosion environment of stairs and railings, operating platform, corridor, bracket, etc.
Product specification
| Round Pipe | OD*ID(mm) | Weight(g/m) | OD*ID(mm) | Weight(g/m) | |
| 4*2 | 19 | 5*2 | 33 | ||
| 6*2 | 50 | 6.5*3 | 52 | ||
| 7*3 | 63 | 7.5*4 | 63 | ||
| 8*4 | 75 | 8.5*4 | 88 | ||
| 9*5 | 87 | 9.5*5 | 102 | ||
| 10*6 | 100 | 11*7 | 113 | ||
| 12*5 | 126 | 12.7*8 | 153 | ||
| 14*10 | 151 | 15*10.5 | 180 | ||
| 16*12 | 178 | 18*13 | 243 | ||
| 19*14.5 | 237 | 20*15 | 275 | ||
| 22*16 | 258 | 24*18 | 396 | ||
| 25*20 | 353 | 25.4*20 | 385 | ||
| 26*20 | 433 | 28*24 | 327 | ||
| 30*25 | 432 | 32*27 | 463 | ||
| 35*30 | 510 | 38*30 | 854 | ||
| 40*30 | 1099 | 50.8*40 | 1552 | ||
| 76*60 | 3416 | 100*90 | 2983 | ||
Product advantage
(1) high strength Pultrusion profiles is 150-300 mpa tensile strength, bending strength of 200-300 mpa, the 1000 h after artificial accelerated aging of bending strength retention rate can reach 78%.
(2) low deformation rate Glass fiber reinforced plastic pipe by 1000 h after artificial accelerated aging change in length is + 0.03%, the width of the rate of 0.07%.Therefore making products with the pultrusion profiles geometric shapes and sizes can keep the long-term stability.
(3) high thermal deformation temperature Pultrusion profiles of the thermal deformation temperature of 186 ℃, high temperature softening, 60 ℃ the same crisp, to ensure the normal use of various kinds of ambient temperature.
(4) the bibulous rate is low General purpose bibulous rate is less than 0.5%, and the bibulous rate of pultrusion profiles is only 0.257%, suitable for use in damp environment.
(5) low coefficient of heat preservation and heat insulation heat transfer coefficient of pultrusion profiles with hard PVC close, made of the single frame of the double glass window insulation thermal insulation coefficient of only 2.69 W/(m2K), and with the same type of steel, aluminum ingot the coefficient of heat preservation and heat insulation of the window is as high as 4.0 W/(m2K), shows that FRP doors and Windows of energy saving is obvious.
1.Do you provide OEM service?
Yes, we do.Please send us your design draft to us, we will arrange to shape.
2.How to pay?
Telegraphic transfer (T/T or L/C.
3 how long is delivery time?
According to the quantity of the goods, it will be 10 to 30 days.
4 packaging?
We usually use carton or according to customer's requirement.
5.Do you arrange shipment?
Yes, we will arrange shipment for you, if necessary.
6.After the shipment of documents?
After shipment, we will put all documents sent to your E-mail, include packing list, commercial invoice, bill of lading, certificate of other requirements of the customer.
7 do you have a warranty on glass fiber reinforced plastic products?
Glass fiber reinforced plastic grille has 10 years of guarantee.We will free replacement if broken.
