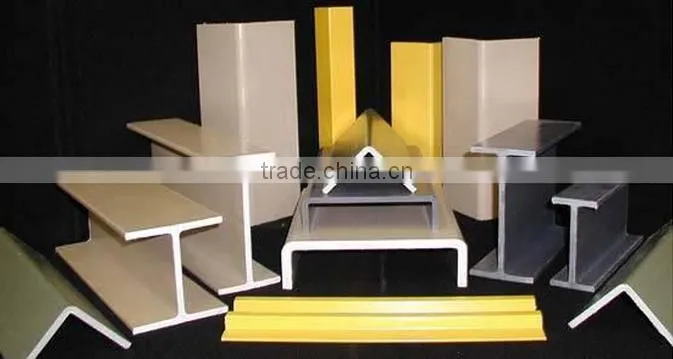

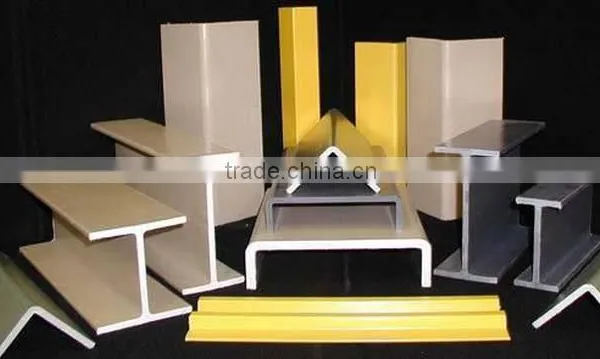

Corrosion resistance fiberglassH beam, framework support beams size
Fiberglass H beam is a kind of glass fiber reinforced plastic products.Materials including glass fiber roving seam, continuous glass fiber mat, glass fiber mat and surface veil and unsaturated polyester resin, vinyl resin, phenolic resin as matrix material. frp h beam is constantly being formed after the high temperature heating.It can resist acid, alkali, corrosion and other gas or liquid, organic solvent and compounds.This product is a kind of new building structure framework, can also be used in industry, farming and other industries.
Fiberglass H beam main raw material
1 .Reinforcement material: fiberglass, continuous strand mat.
2. Basis material: unsaturated polyester resin, epoxy resin, vinylester resin.
Fiberglass H beam properties
1. Corrosion resistance, aging resistance.
2. Water proof, fireproof.
3. Light weight, high strength, impact resistance.
4. Good dimension stability.
5. Insulation, good magnetic permeability.
6. Bright color, attractive appearance.
7. Long service life, maintenance free.
8. Easy to cut and install.
Fiberglass H beam molding process
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
Fiberglass H beam specification
Company can also customize product according to customer requirements, such as perforation sizes, different shapes, different sizes, different load requirements, maximize meet customer demand, and reduce losses to a minimum, cost savings for customers.
Name |
Size |
Weight(kg/m) |
I-beam |
25.4*15 |
0.41 |
I-beam |
38*15 |
0.48 |
I-beam |
100*50*9 |
2.25 |
Fiberglass H beam application
Fiberglass H beam are often used in chemical processing plants, Marine construction, food and beverage processing, oil refining, paper industry, in areas such as sewage treatment and transport.Company can according to customer request a variety of, professional design, carefully produced to meet customer needs all kinds of profiles.Can reach the standard of GB, ASTM, ENISO, and mechanical performance test report issued to the customer.
Company was founded in 1993, we introduced the most advanced fully automatic pultrusion production equipment, products and materials including instruments imported from the United States.In addition, the company all staff by the specialist training in the United States.For more than 20 years, through the efforts, we constantly innovation, enlarge the range of products.Our company has become one of the best production of FRP pultrusion products manufacturers.
1. High quality
Our company ensures our product light weight, high strength, anticorrosion, resist heat, UV and so on
2. Competitive price
We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
3. Professional
Experienced technical support team. We have very experienced R&D engineers. Maoshengyuan is a leading and professional manufacturer of fiberglass product for 20 years, We are special in producing and sells, as development, methods and handling.
4. Best service
For all your inquires about us or our products, we will reply you in detail within 24 hours.
