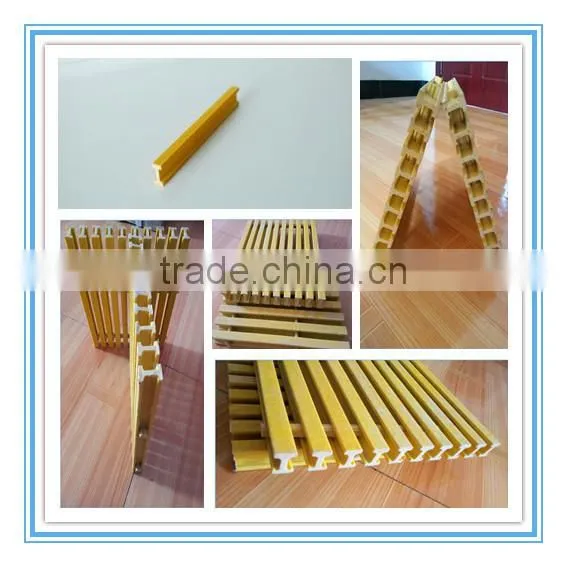

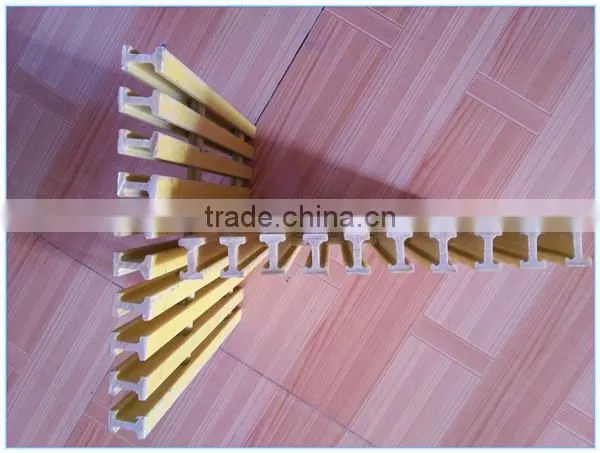

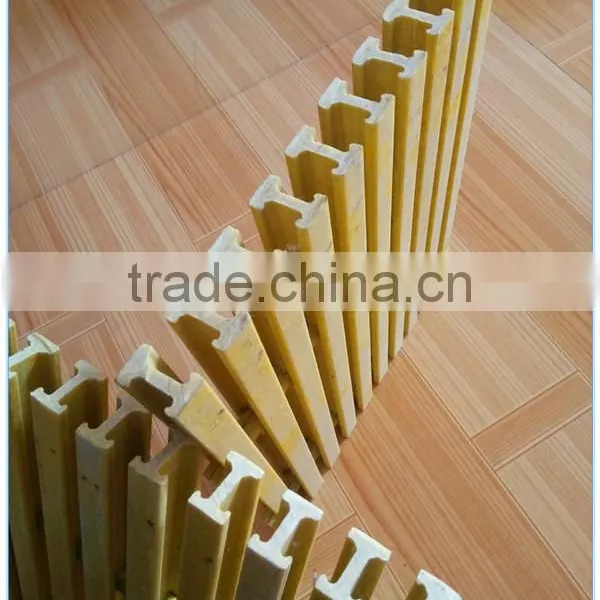

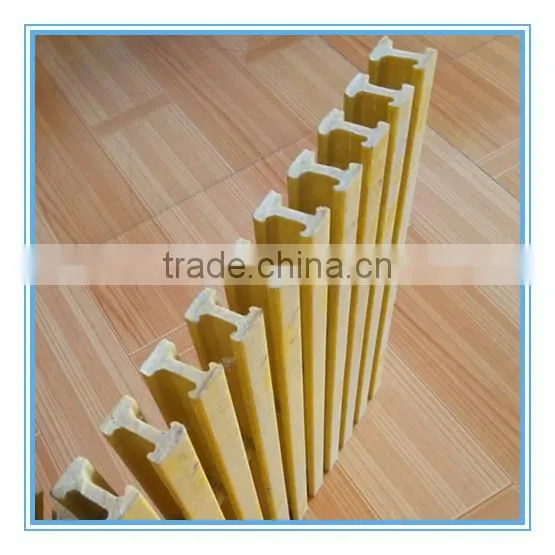

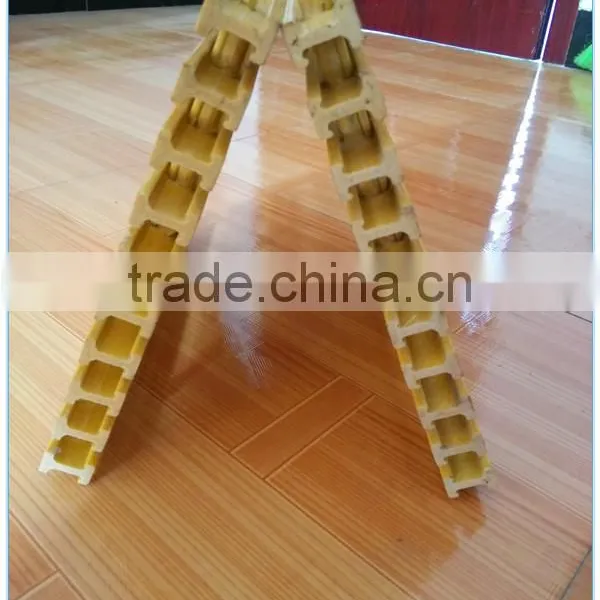

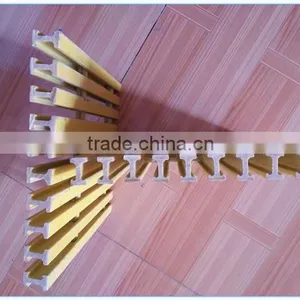

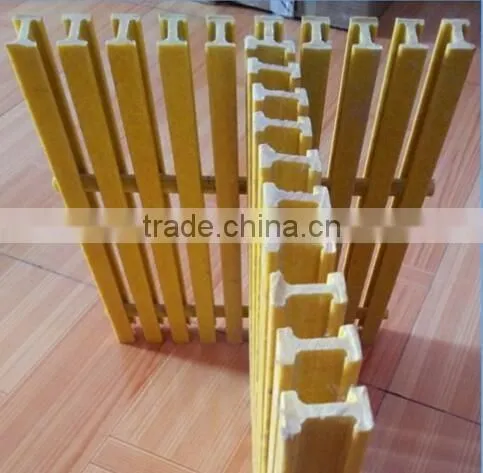

Fibre Glass Reinforced Plastic(FRP) grating, Pultruded I-beam Profile
- 1000 Square Meter / Square Meters per Month
- qingdao tianjin
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | maoshengyuan | Model Number: | GRP Gratings |
Application: | Construction | Surface Treatment: | Smooth | Technique: | Pultrusion |
Dimensions: | Requirement |
Product Description
FRP grating, pultruded frp grating, fiberglass grating, frp pultrusion grating, trench grating, drain grating, grating walkway, platform grating
1-25mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;
2-Easy to install;
3-Can be cut at any lengths you need; open area is decided by customer
4-Grating clamps are available.
MaoShengYuan fiberglass floor grating specification list:
Item | high A (inches) | top wide B (mm) | bottom wide D (mm) | top space wide C (mm) | theoretical weight (KG/M2) |
25mm I | 1 | 30 | 30 | 13 | 13 |
25mm I | 1 | 30 | 30 | 30 | 10 |
25mm I | 1 | 15 | 15 | 10 | 17 |
25mm I | 1 | 15 | 15 | 23 | 11 |
38mm I | 1.5 | 15 | 15 | 10 | 26 |
38mm I | 1.5 | 15 | 15 | 15 | 22 |
38mm I | 1.5 | 15 | 15 | 23 | 18 |
40mm I | 1.6 | 40 | 20 | 27 | 19 |
40mm I | 1.6 | 40 | 20 | 40 | 17 |
40mm I | 1.6 | 40 | 20 | 60 | 14 |
40mm I | 1.6 | 30 | 30 | 20 | 14 |
40mm I | 1.6 | 30 | 30 | 30 | 12 |
40mm I | 1.6 | 30 | 30 | 45 | 10 |
58mm I | 2.2 | 15 | 15 | 10 | 32 |
58mm I | 2.2 | 15 | 15 | 15 | 27 |
58mm I | 2.2 | 15 | 15 | 23 | 22 |
65mm I | 2.5 | 30 | 30 | 20 | 17 |
65mm I | 2.5 | 30 | 30 | 30 | 15 |
60mm I | 2.5 | 30 | 30 | 45 | 12 |
Pultruded frp grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
Bridge walkways

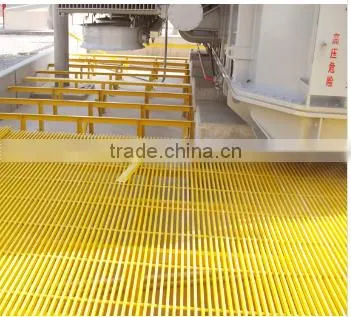

Platforms

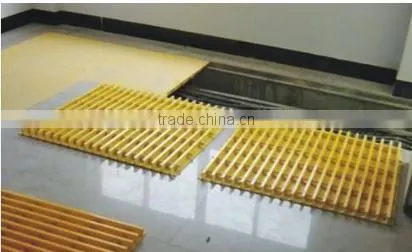

Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios
Pultruded fiberglass grating superior features compare with molded grating
Strength: 2 to 3 times stronger than molded grating, suitable for wide support span,carry great load bearing.
Impact resistance: The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating,high ultimate strength prevents impact damage.
Pultruded fiberglass grating superior features compare with steel grating
Corrosion resistant: resists most acid,austics and salts.
Safety: low electrical conductivity,non-skid surface.
Lightweight: 1/4 the weight of steel,2/3 the weight of aluminum.Easy for transport and filed fabricated.

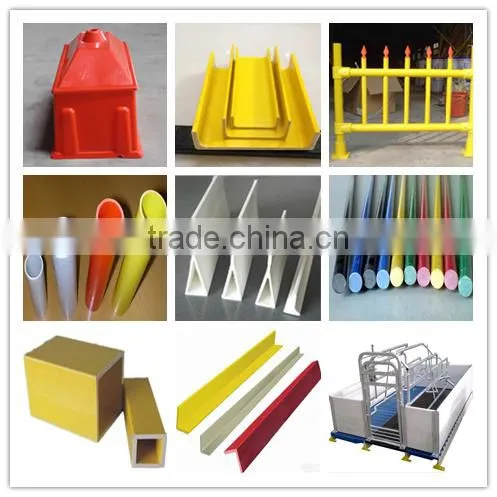

Our fiberglass profile including | Application |
Fiberglass rods FRP tube (round tube, gear shape tube, square tube, rectangular tube) FRP channel FRP angle H shape beams FRP triangle support beams FRP plate other structural profiles
Window frame Shutter blade Movable Insulative Ladderspan FRP ladders and stairs Walking platform FRP handrail system FRP fence Fiberglass grating (Pultruded) Cooling tower FRP components (Filler supports, anti-freeze board) Fiberglass structure support |
|
