frp grilling/plastic floor grating/fiberglass grating
Pultrusion technique
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
Frp Product Main Raw Material
1 .Reinforcement material: fiberglass, continuous strand mat.
2. Basis material: unsaturated polyester resin, epoxy resin, vinylester resin.
FRP Profile Properties
1. Corrosion resistance, aging resistance.
2. Water proof, fireproof.
3. Light weight, high strength, impact resistance.
4. Good dimension stability.
5. Insulation, good magnetic permeability.
6. Bright color, attractive appearance.
7. Long service life, maintenance free.
8. Easy to cut and install.

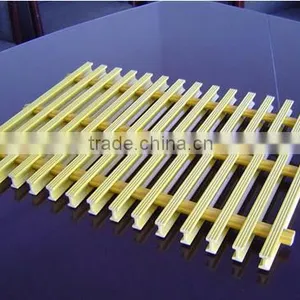

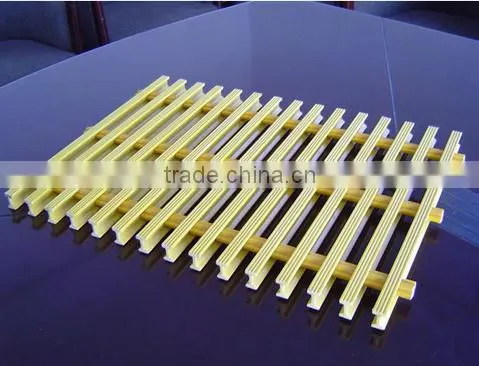

FRP grating:

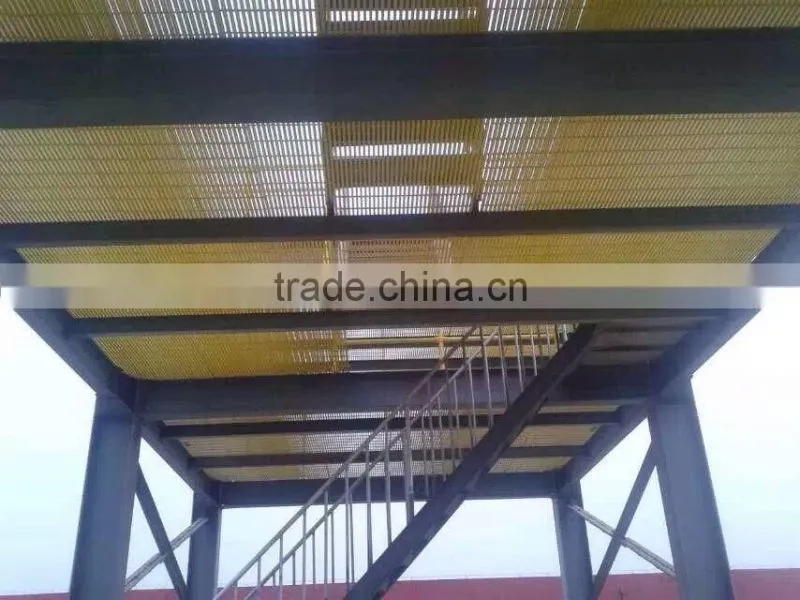

FRP grating is one kind of new composite material, made of different resins reinforced with fiberglass, by molded technology.It is widely used in operation platform, checking and repairing walkway, drilling platform, terrace, stair step, equipment walkway, trench cover, pedestrian overpass, filler support, deck of ship,falsework, ventilation fence, rail, corrosion resistance shelf,etc.
Company was founded in 1993, its predecessor is a joint venture company, through optimization and enterprise restructuring become Qingyun Maoshengyuan Composite Material Co. We have over 20 year' experience of producing frp farm equipment. We own well equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in farms and others. Our company has been grown into one of the best manufacturers in the production of FRP pultrusion structural sections. Beyond domestic market.
1. Do you provide OEM service?
Yes, we do. Please send us your design draft to us, we will arrange molding.
2. How long is the delivery time?
According to the quantity of goods,it would be 10 to 30 days.
3. How is the packing?
We usually use carton or according to customer's requirement.
4. Do you have warranty about the FRP products?
The FRP grating has ten years guarantee. We will free replacement If it breaks down.
