Glass fiber platform plastic grating/Frp grating sheet
- 5000 Square Meter / Square Meters per Month
- QINGDAO TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | Maoshengyuan | Model Number: | Various models |
Application: | Chemical plant, sewage treatment, oil industry, operating platform | Surface Treatment: | smooth | Technique: | Pultrusion |
Dimensions: | Any size |
Product Description

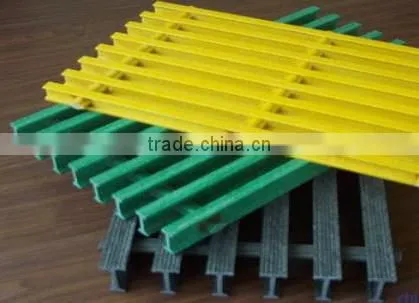

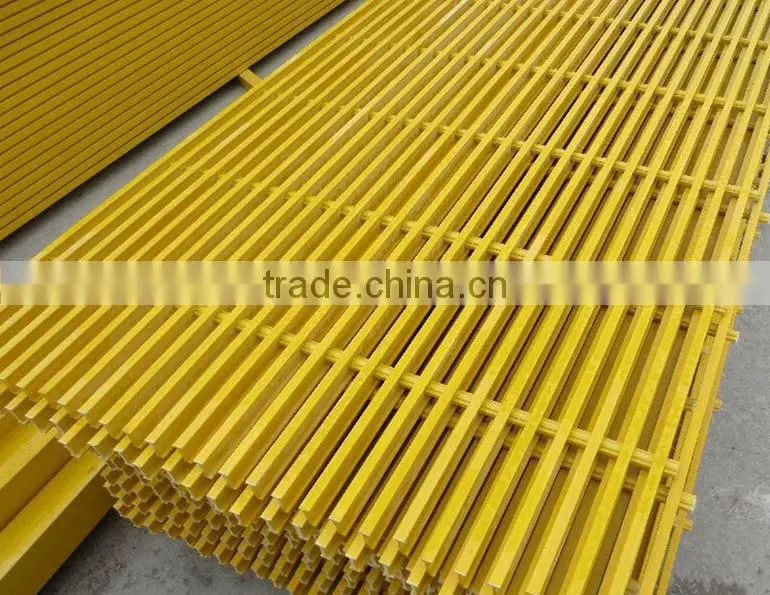

Glass fiber platform plastic grating/Frp grating sheet
Frp grating sheet is produced by Glass fiber braiding, casting resin Integral moulding,
with many regular distribution of the rectangle and square space of glass fiber reinforced plastic grille plate, has two-way mechanics characteristics.

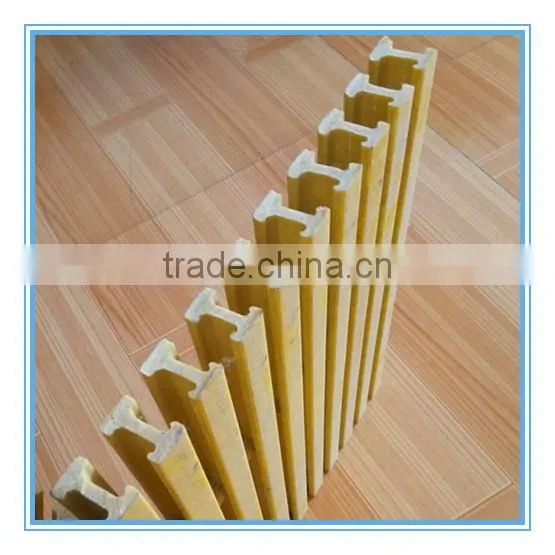

FRP grating sheet pultrusion process
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
FRP grating sheet specification
Company can also customize product according to customer requirements, such as perforation sizes, different shapes, different sizes, different load requirements, maximize meet customer demand, and reduce losses to a minimum, cost savings for customers.
NO. | Picture | Type | Concentrated load/kg | Uniformly distributed load/kg | Weight(kg/sqm) |
1 |
| I-10-40 | 7410 | 14100 | 17.1 |
2 | I-10-50 | 6180 | 11750 | 14.2 | |
3 | I-10-60 | 4950 | 9000 | 11.2 | |
4 | I-15-40 | 10710 | 20400 | 22 | |
5 | I-15-50 | 8925 | 17005 | 19.1 | |
6 | I-15-60 | 7140 | 13600 | 16.1 | |
7 | T-10-18 | 4365 | 8300 | 13.2 | |
8 | T-10-35 | 3495 | 6650 | 11.2 | |
9 | T-20-33 | 12945 | 24650 | 19.6 | |
10 | T-20-50 | 9705 | 18500 | 15.2 |
FRP grating sheet advantage
1. The corrosion resistance. Has very excellent acid-proof, alkali resistance, resistance to organic solvents and salt, and many other gas and liquid medium corrosion performance, has the incomparable superiority in the field of anti-corrosion
2. security. It has excellent electrical insulation, 10 kv voltage without breakdown;Without electricity, magnetic available in sensitive to magnetic devices;Glass fiber reinforced plastic grille special structure also has the characteristics such as non-slip, anti-fatigue.
3. Flame retardant. Ordinary flame retardant grille flame propagation rate (ASTM E - 84) is not
more than 25;Advanced flame retardant vinyl grille the flame propagation rate of no more than 10.Oxygen index is not less than 28 (GB 8924).
4. Light weight, high strength, corrosion resistance, aging and cutting, makes the pipes easier to install.

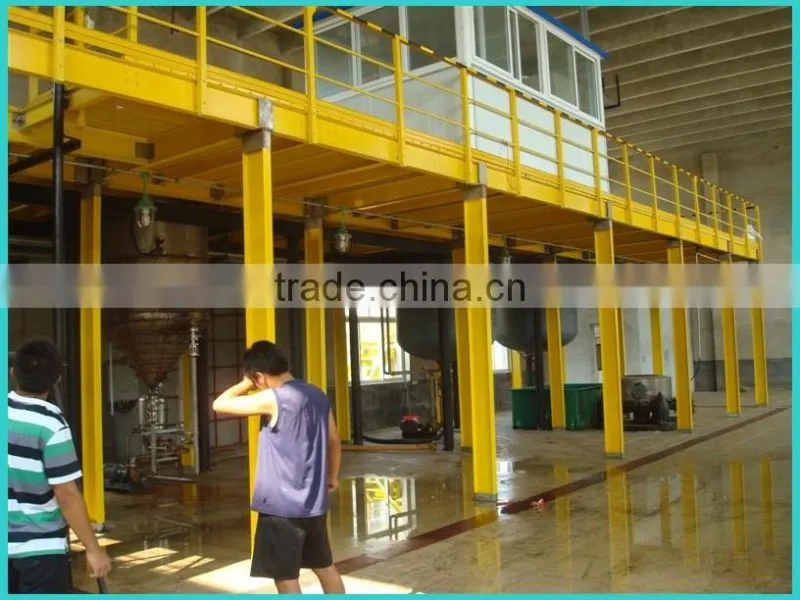

FRP grating sheet application
Frp grating sheet can be widely used in petroleum, chemical industry electronic, electric power, paper, printing and dyeing, electroplating, sewage treatment and other industries, Marine exploration work platforms, equipment platforms, drilling platform, walkway, and so on, is the ideal product in the corrosive environment, at the same time can also be applied to civil construction facilities.
Company was founded in 1993, we introduced the most advanced fully automatic pultrusion production equipment, products and materials including instruments imported from the United States.In addition, the company all staff by the specialist training in the United States.For more than 20 years, through the efforts, we constantly innovation, enlarge the range of products.Our company has become one of the best production of FRP pultrusion products manufacturers.
1.Do you provide OEM service?
Yes, we do.Please send us your design draft to us, we will arrange to shape.
2.How to pay?
Telegraphic transfer (T/T or L/C.
3 how long is delivery time?
According to the quantity of the goods, it will be 10 to 30 days.
4 packaging?
We usually use carton or according to customer's requirement.
5.Do you arrange shipment?
Yes, we will arrange shipment for you, if necessary.
6.After the shipment of documents?
After shipment, we will put all documents sent to your E-mail, include packing list, commercial invoice, bill of lading, certificate of other requirements of the customer.
7 do you have a warranty on glass fiber reinforced plastic products?
Glass fiber reinforced plastic grille has 10 years of guarantee.We will free replacement if broken.
Contact Us
- Qingyun Maoshengyuan Composite Material Co., Ltd.
- Contact namejingsheng Han
- Phone86-534-3225366
- AddressEast side north head of Kaiyuan street, Qingyun county, Dezhou city, Shandong province. Dezhou,Shandong
