Chinese manufacturers direct sales frp U-shaped channel steel
Frp channel steel is a kind of glass fiber reinforced plastic products.Materials including glass fiber roving seam, continuous glass fiber mat, glass fiber mat and surface veil and unsaturated polyester resin, vinyl resin, phenolic resin as matrix material. fiberglass steel channel is constantly being formed after the high temperature heating.It can resist acid, alkali, corrosion and other gas or liquid, organic solvent and compounds.This product is a kind of new building structure framework, can also be used in industry, farming and other industries.

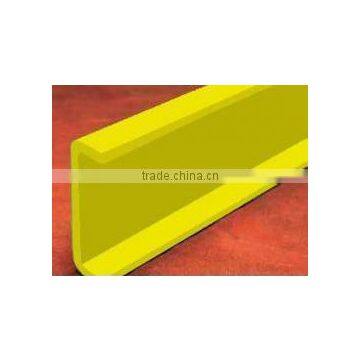

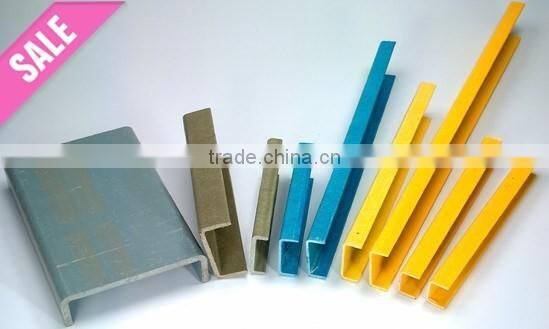

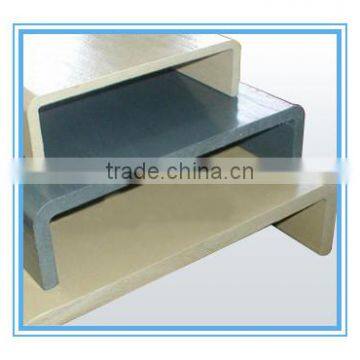

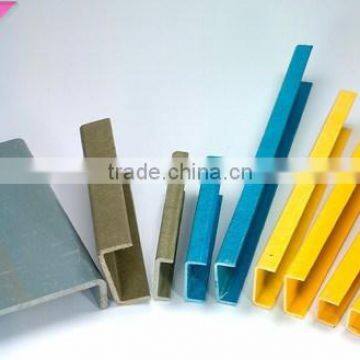

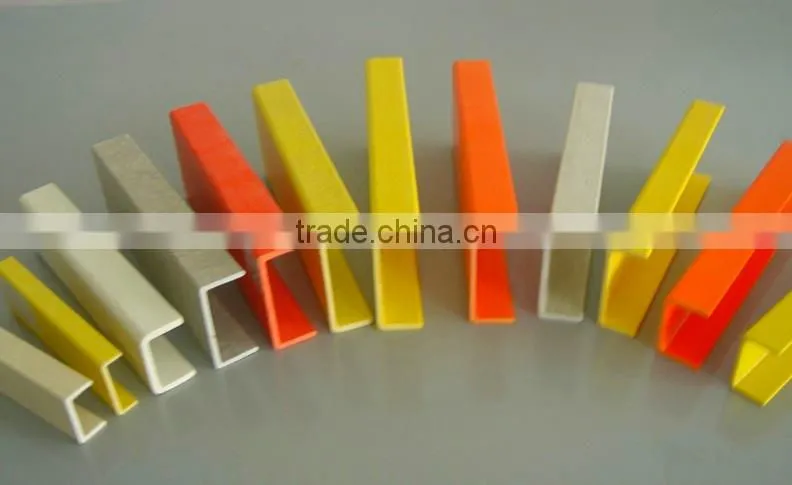

Channel steel picture
Channel steel production process
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
Channel steel specification
Name |
Size |
Weight(kg/m) |
channel steel |
50*30*20*3 |
0.55 |
channel stee |
50*25*5 |
1.075 |
channel steel |
50*50*5 |
1.45 |
channel steel |
52*61*6 |
1.83 |
channel steel |
75*40*5 |
1.55 |
channel steel |
75*56*6 |
1.96 |
channel steel |
100*40*5.5 |
1.7 |
channel steel |
154*41*6 |
2.5 |
Company can also customize product according to customer requirements, such as perforation sizes, different shapes, different sizes, different load requirements, maximize meet customer demand, and reduce losses to a minimum, cost savings for customers.
Channel steel advantage
1.No rust corrosion resistance, easy maintenance, long service life.
2.Light weight, high strength., only a quarter of the density of steel, light weight, easy to handle.
3. Fatigue resistance, allowing repeated bending without permanent deformation.
4.Which can effectively reduce the influence of ultraviolet (uv) radiation.
5. Fire prevention, flame retardant
6. Good electrical insulating materials. Suitable for magnetic sensitive equipment area, flammable and explosive place.

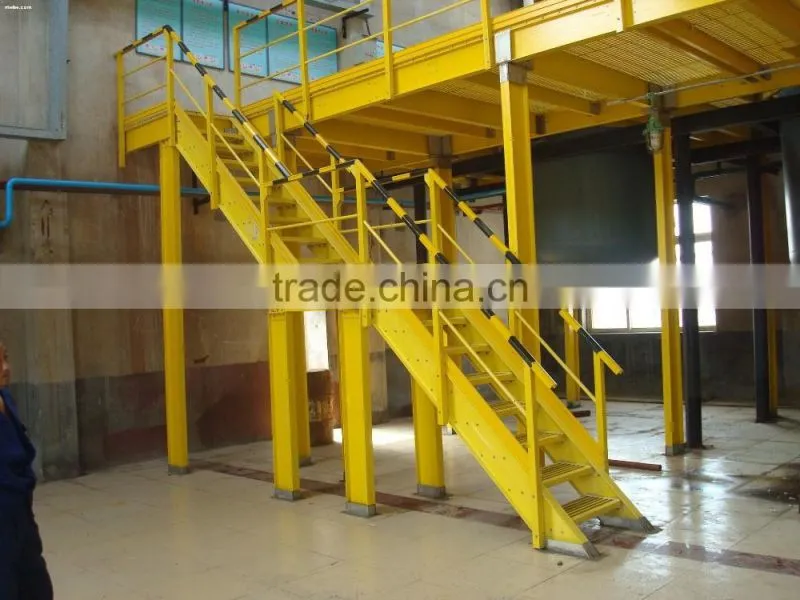

Channel steel application
Fiberglass steel channel are often used in chemical processing plants, Marine construction, food and beverage processing, oil refining, paper industry, in areas such as sewage treatment and transport.Company can according to customer request a variety of, professional design, carefully produced to meet customer needs all kinds of profiles.Can reach the standard of GB, ASTM, ENISO, and mechanical performance test report issued to the customer.
Company was founded in 1993, its predecessor is a joint venture company, through optimization and enterprise restructuring become Qingyun Maoshengyuan Composite Material Co., LTD.
Company management idea : high quality is the way to survive; creation is the way to development; effective management is the way to profit.
Company aim : Ensuring the quality of products is our responsibily; realizing the co-development is our goal; pursuing the satisfaction of ourcompany is our mission.
Our Services
1. High quality
Our company ensures our product light weight, high strength, anticorrosion, resist heat, UV and so on.
2. Competitive price
We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
3. Professional
Experienced technical support team. We have very experienced R&D engineers. Maoshengyuan is a leading and professional manufacturer of fiberglass product for 20 years, We are special in producing and sells, as development, methods and handling.
4. Best service
For all your inquires about us or our products, we will reply you in detail within 24 hours.
