Fiberglass frp angle steel size 50*50*5mm
Fiberglass reinforced angle steel is one of our products; it is made from high strength glass fibers along with extremely durable resin. The glass fibers impart strength to the product while the resin imparts excellent corrosion resistance properties in harsh chemical and alkaline environments. Thus they have the features of light weight, high strength, anti-corrosion and long service life.

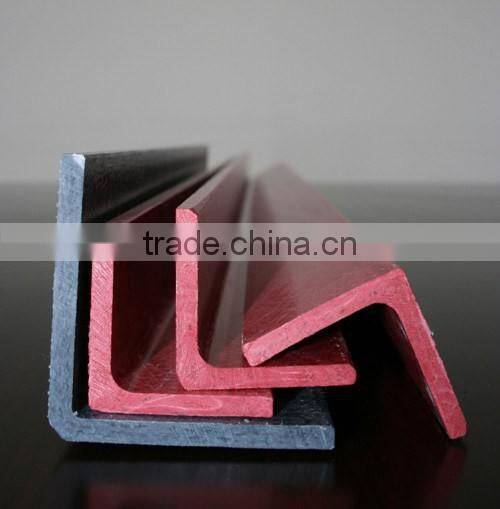

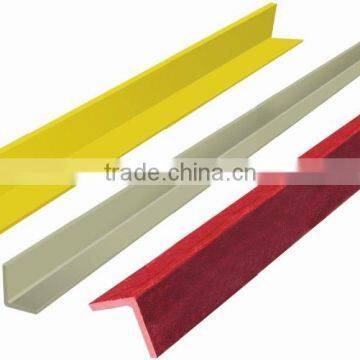

Angle steel Picture

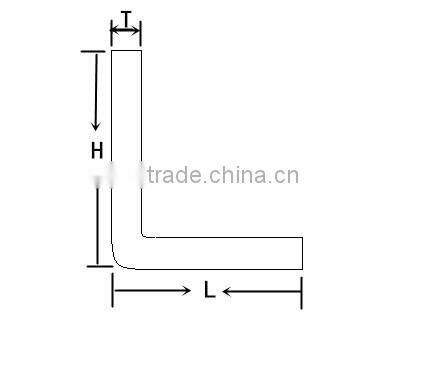

Angle steel specifications
| NO. | Picture | Size(H*L*T)/mm | Weight/(kg/m) |
| 1 |
|
50*50*5 | 0.85 |
| 2 | 40*40*3 | 0.37 | |
| 3 | 230*106*3 | 3.85 | |
| 4 | 100*60*6 | 2 | |
| 5 | 100*50 |
Angle steel Properties
1. Corrosion and chemical resistant
Corrosion is a major problem for metal or wooden grating, stair treads and other products in many different industries such as chemical plants, food and beverage factories, water and wastewater facilities, power facilities. According to different environmental requirements, such resins as orthophthalic polyester, is ophthalmic polyester, vinylester or phenolic are chosen as matrix material.
2. High strength-to-weight ratio
As a composite of continuous fiberglass strands and high quality resin is integrally constructed for strength, but it is less than one-half the weight of steel grating allowing easy removal for access below floor level and installation with no heavy equipment and less manpower.
3. Fire retardant
we have flame spread rating of 25 or less depending on different resin systems as tested in term of ASTM E-84. Test Report can be offered upon request. Special fire retardant requirements can also be met by adding extra additives.
4. Slip-resistant
molded grating has a concave top surface for slip resistance after it is extracted from the mold. Should a grit surface be specified, the grit would be either bonded to the top of the completed grating as a secondary operation or embedded to the top of grating before heating, both providing superior slip resistance. Diamond cover top or gritted cover top are also available upon request.
Angle steel Main Raw Material
1 .Reinforcement material: fiberglass, continuous strand mat.
2. Basis material: unsaturated polyester resin, epoxy resin, vinylester resin.

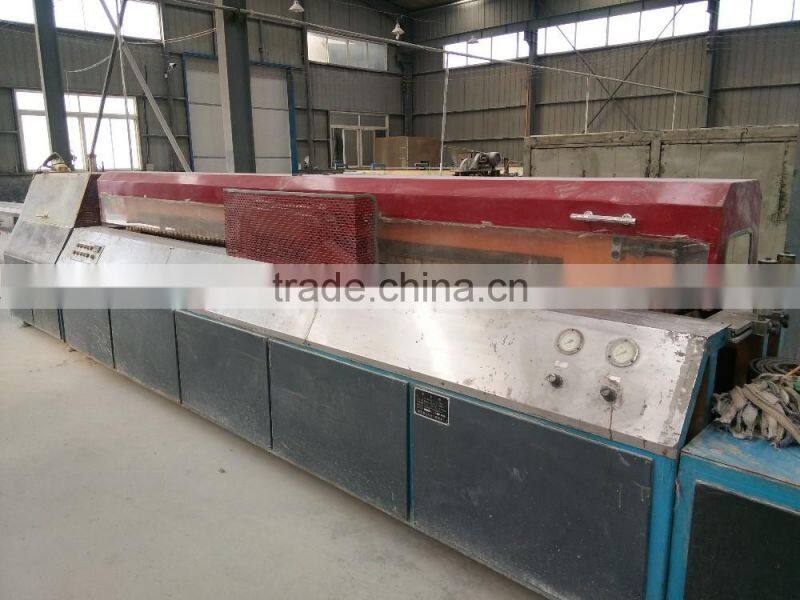

Angle steel Pultrusion Technique
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
Packing:
We usually packaging in carton or bag , also can pack according to your requirement.
Shipping:
We will transport the goods to Qingdao port or tianjin port, and then loading the goods shipped to the customers.
Company was founded in 1993, its predecessor is a joint venture company, through optimization and enterprise restructuring become Qingyun Maoshengyuan Composite Material Co., LTD.
Company management idea : high quality is the way to survive; creation is the way to development; effective management is the way to profit.
Company aim : Ensuring the quality of products is our responsibily; realizing the co-development is our goal; pursuing the satisfaction of ourcompany is our mission.
Our company has over 20 years experience in the design of FRP profiles and introduced the most advanced full-Automatic pultrusion production equipment, we has own design team and the patents, Beyond that, we provide customized service. We have strict quality inspection process and Best after-sales service.
Warranty
We are 100% responsible for damage of full container goods, if it is caused by improper packing of our goods. We have a very strict quality control team, in the product warranty period, any problem can contact us. We are responsible for processing and solve the problem, until you are satisfied.
