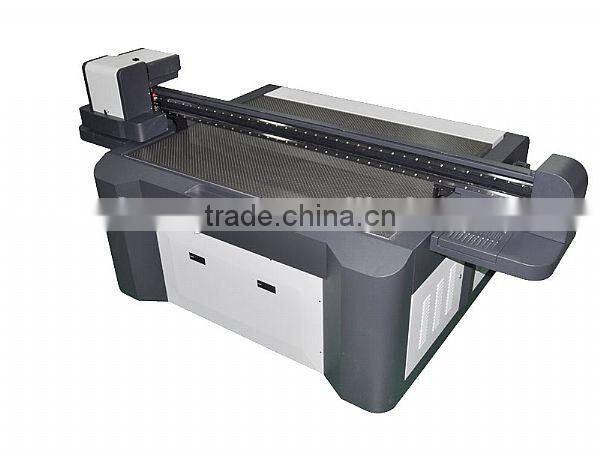

Help Center2014 WZH-FA Advanced Flatbed Printer
Related Products
-
2014 WZH-FA Advanced Flatbed PrinterNegotiableMOQ: 1 Set -
Advanced Toner Refill MachineNegotiableMOQ: 1 Set
-
Precise Toner Refill Machine for 1 Colors PriceNegotiableMOQ: 1 Set
-
Precise Toner Refill Machine for 3 Colors PriceNegotiableMOQ: 1 Set
-
2014 New Design Laser Toner Refill Machine for 3 Colors PriceNegotiableMOQ: 1 Set
Specifications
advanced flatbed printer1. lots of main parts imported from USA and Japan
2. very advanced and smart
3. beautiful appearance
1. Descriptions
* High precision :2- 5 grayscale piezo nozzles, variable drop printing, minimum 7pl maximum 21pl, photo- precision, can be clearly printed 2pt font.
* Structural Stability : The frame is precision gantry milling, grinding screw with institutions of high-density double linear guide rail beams ensures accurate, stable and reliable mobile ; positioning sprinklers car fixed linear grating, ensuring high-precision printing positioning more precise , repeated printing without bias.
* Speed : 4 PASS bidirectional : 20 m / h ; 6 PASS bidirectional : 13 m / h ; 8 PASS bidirectional : 10 m 2 / hour.
* Powerful:
With automatic cover white, white , spot color and other 16 kinds of white ink print mode, and you can print three kinds of varnish with special effects ;
Super strong vacuum plate system can be firmly adsorbed on the printing platform , the material susceptible to thermal deformation is particularly applicable ;
Have significantly improved productivity automatically jump white printing capabilities that can automatically identify and avoid the blank part of the screen ;
Powerful nozzle compensation available alternative fault functioning nozzle ink jet printing nozzle , ensuring that the picture does not appear grin or PASS Road ;
Powerful features with intelligent , user-friendly software RIP (SEEGET or ONYX), a different picture may still overlap after output , which greatly facilitates the daily work of the school color proofing , showing a substantial increase in efficiency
High-end industrial grade careful maintenance and repair sprinklers can only use 2-3 years
Device is equipped with multiple emergency brake switch, to ensure personal safety equipment.
Grayscale printing technique by adjusting the size of the droplet of ink to adapt to change image color depth , so you can save ink used.
* More environmentally friendly : The free VOC ( volatile organic compounds ) of environmentally friendly UV -curable ink - the next new trend !
- 2. Parameters
Product parameters:Parameters
Print Head: Ricoh/7PL
Number of nozzles: 4+1
Printing Area:1600MM*1000MM(The length can be customized according to demand)
Print Medium thickness:1MM~50MM
Ink Category: environmentally friendly UV-curable inks, excluding VOC)
Speed: 20SQM/H (4PASS),10SQM/H (8PASS)
Zoom mode:: Head movements
Input Format: Adobe Postscript Level 3,PDF, JPEG,TIFF,EPS,AI.
Software Interface: Windows,Seeget,Onyx
Power: 220VAC (±10%),50 / 60 Hz ,4.5 KW (20A)
Environmental: Temp18~26,humidity20~80%RH
Packing: 130 cm × 152cm × 283 cm
