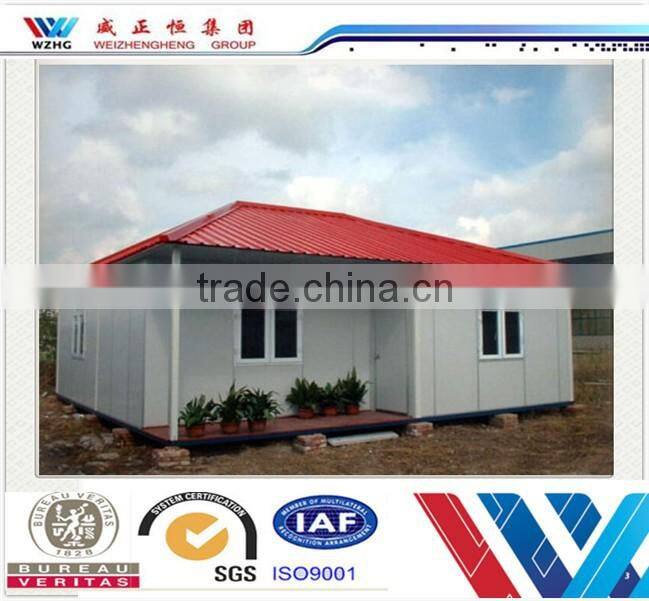

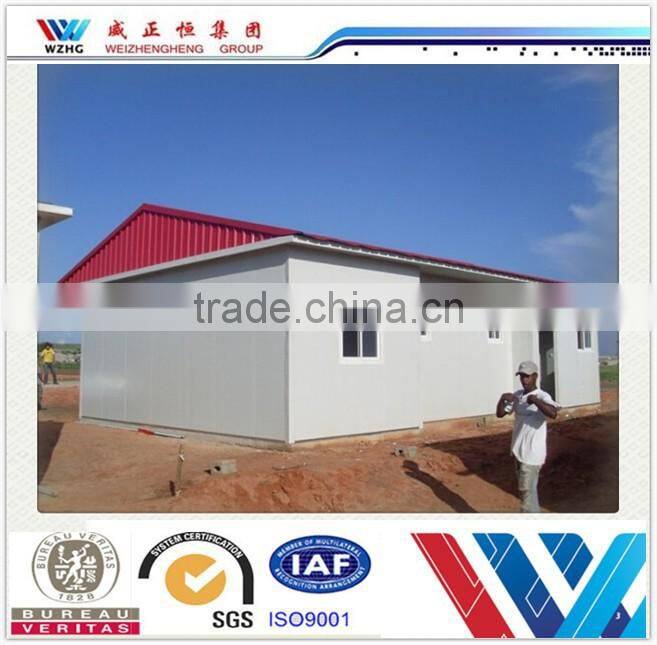

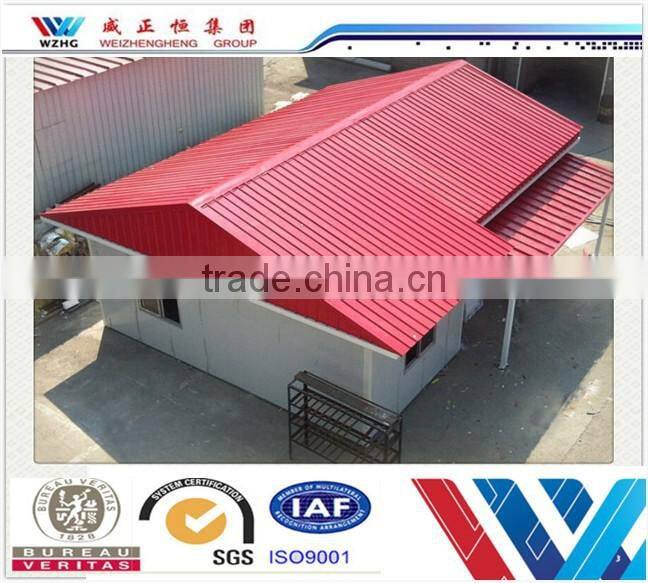

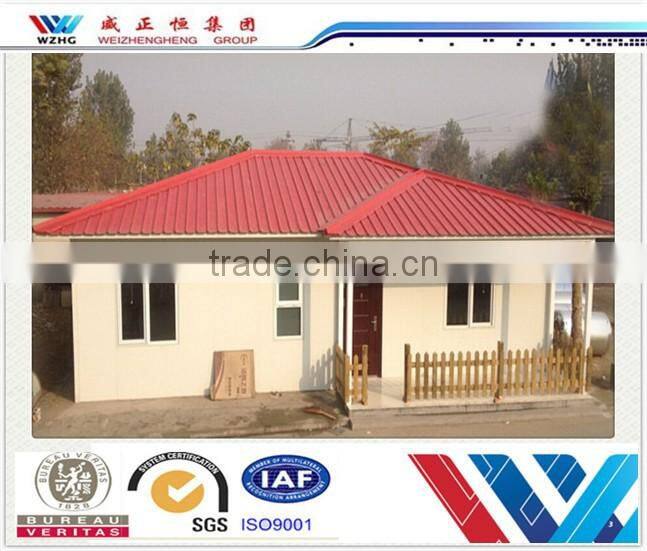

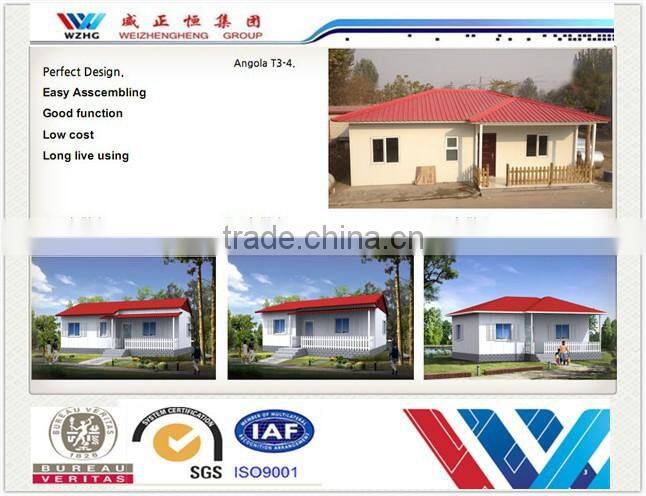

prefab house by EPS sandwich panel steel structure
- Steel Frame: high quality steel structure 4mm steel profile
- Wall Panel:
1) 50mm/75mm/100mm sandwich board(with EPS, PU for its interlayer)
2) Cement & EPS sandwich panel - Roof Panel:
1) 50mm/75mm/100mm sandwich board(with EPS, PU for its interlayer)
2) Color-glazed roof sheet - Windows: Aluminum alloy window or plastic steel windows
- Doors: sandwich board door or aluminum alloy door
- Bathroom:it will be equipped with one toilet bowl,one wash basin,one shower equipment( alternative)
- Kitchen: it will be equipped with one kitchen cabinet(alternative)
- Electricity: we will supply all the electricity system and equipment(alternative)
- Color: you can choose any color you like(both for the outside and inside)
Technical Data | ||
Item |
Name |
Specifications |
|
Standard Accessories |
Ground Main Beam |
H248X124X5X8,material: Q235 |
Roof Beam |
C180*70*20*3.0, material: Q235 |
|
Wall Column |
square tube 70*70*3.0,material: Q235 |
|
Corner column |
pressured angle steel sheet, material: Q235 |
|
Floor |
wooden floor |
|
Door |
colored steel sandwich panel door, size: 750mm*2000mm |
|
Window |
plastic-steel window, size: 600mm*800mm |
|
|
Design Parameter |
Roof Live Load |
0.5KN/sqm |
Wind Load |
wind scale: 10, wind pressure: 0.5KN/sqm, designed wind speed: 28m/S |
|
|
Heat Transfer Coefficient |
wall: 0.30~0.18 w/sqm.k ceiling: 0.28~0.13 w/sqm.k floor:0.33~0.15 w/sqm.k |
|
Earthquake Resistance |
7 degree |
|
Suitable Temperature |
suitable temperature range: -50℃~+50 ℃ |
|

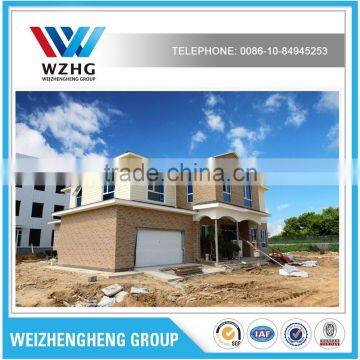

Light steel frame prefabricated villa
1.Standard export packing
2.Galvanized metal fluted rings on inner and outer edges, galvanized metal and waterproof paper wall protection disk, galvanized metal and waterproof paper around circumference and bore protection
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
