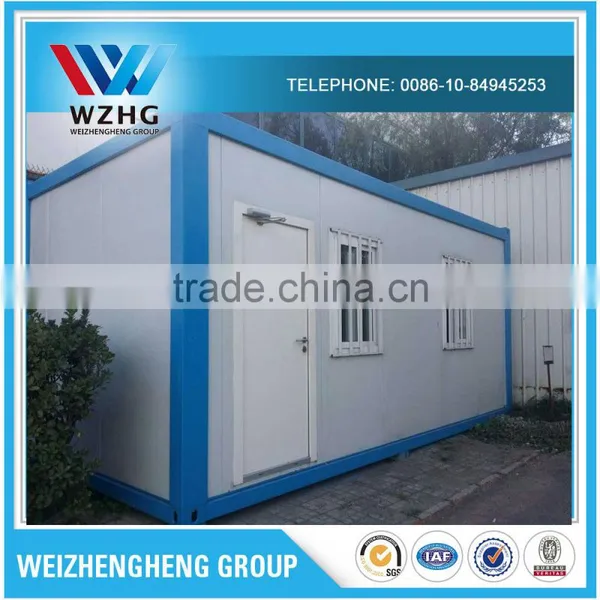

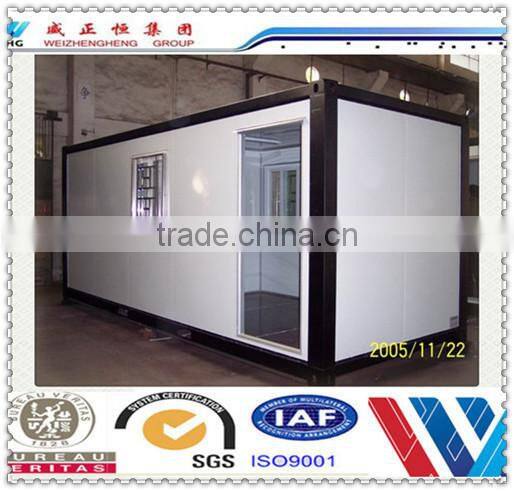

Sandwich Panel steel structure Container house/sandwich panel house 20FT container house container living homes

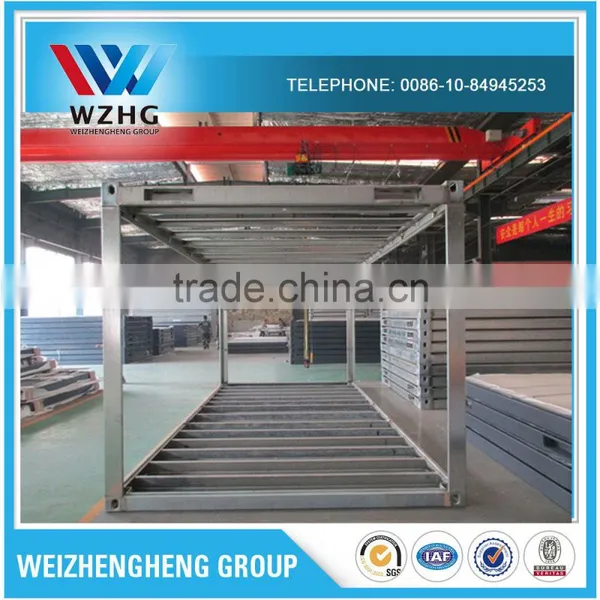

The container home adopt the steel structure frame design, with prefect stability, the wind resistance capacity can be more than 210km / h, and the Seismic resistance capacity can be more than 8 Grade. This container house is consist of chassis, housetop, and wall system

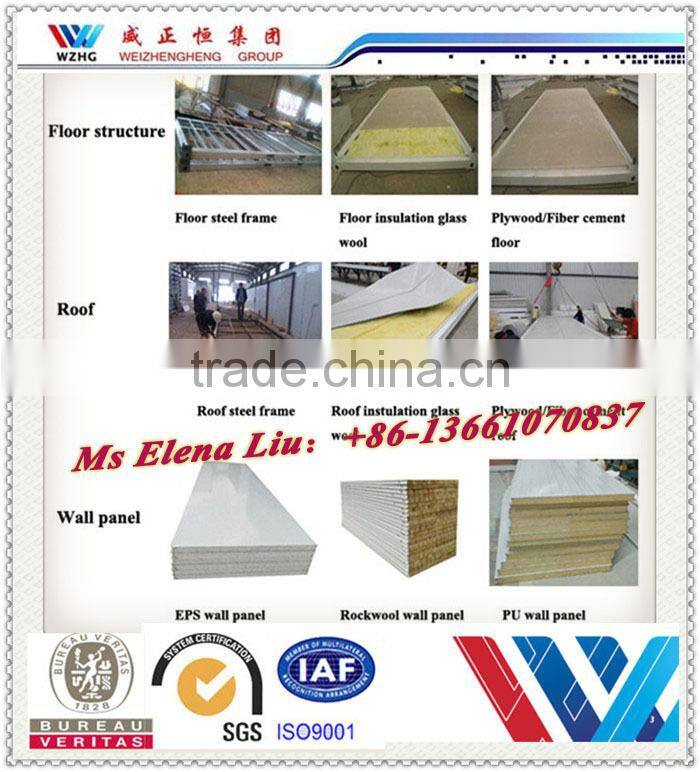

The wall system is made of sandwich panel, and the core material for this is kind of sandwich panel have EPS/Mineral wool/PU, etc., the thickness is from 50mm to 100mm., the steel sheet is made from colored steel ( the Pattern can be optional).The roof and floor are prefabricated at our factory, is made the installment easier. The roof is adopt the overall design, it has enhanced the air tightness, and water-resistance.

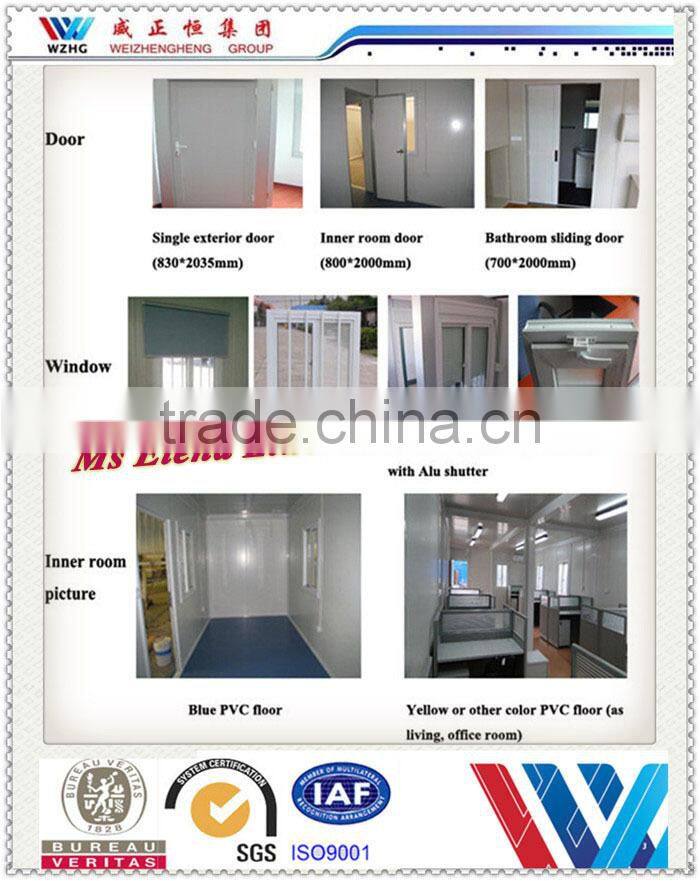

This kind of container house is made according to the size of shipping container (6058*2438*2591, it can be composed of 1-3 floors of multi-housing in the horizontal and vertical space.. The Stairs, doors, windows, partition position and dimensions can be diversification, meeting the more requirements of customer, and the interior decoration can be produced according to customer demands.
Product’s characteristic: Beautiful appearance, with good thermal insulation, wind resistance and seismic resistance, convenience for disassembly transportation, repeated use, and so on.
Item |
Sort |
Name |
Specification and parameter |
1 |
product model |
standard intensity |
standard product, the dimension can be designed by the customers’ requirement |
2 |
removable performance |
the house are divided into components in transportation and built into a whole hoisted house |
|
3 |
specification |
Length |
6055mm and 12055mm |
4 |
width |
2435mm |
|
5 |
height |
2740mm or Customized-made |
|
6 |
clear height indoor |
2400mm or Customized-made |
|
7 |
standard component |
Ground beam |
3mm galvanized |
8 |
Roof beam |
3mm galvanized |
|
9 |
central column |
3mm galvanized |
|
10 |
column on the corner |
3mm galvanized |
|
11 |
wall panel |
75mm thickness EPS,Rockwool,PU sandwich panel |
|
12 |
roof panel |
75mm thickness integrated PU sandwich board |
|
13 |
secondary beam |
Z-shaped galvanized steel iron |
|
14 |
roof insulation |
75mm polyurethane |
|
15 |
Floor panel |
20mm cement-fiber +2mm PVC |
|
16 |
door |
Steel Security door,860mmx2050mm |
|
17 |
window |
PVC Sliding window with Rolling shutter,1100mmx800mm |
|
18 |
electronics, water supply and drainage |
the plan, design and construction can be provided according to the related law of the country |
|
19 |
furniture and appliance |
Customized-made |
|
20 |
designing parameter |
roof load |
0.5KN/sqm(If the criteria were exceeded, it can also load by reinforcing the structure) |
21 |
wind pressure load parameter |
designing wind speed 210km/h (Chinese standard) |
|
22 |
seismic fortification intensity |
magnitudes 8 |
|
23 |
suitable temperature |
suitable temperature scope.-50°C~+50°C |
|
24 |
construction |
construction tools |
convenient construction ,the tools are spanner, bolt driver and so on |
25 |
construction efficiency |
4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet |
|
26 |
transportation |
container trunk |
container with 12 meters can load 8 houses with the dimension of 20 feet,4 houses with the |
Inner size:
Main materials:

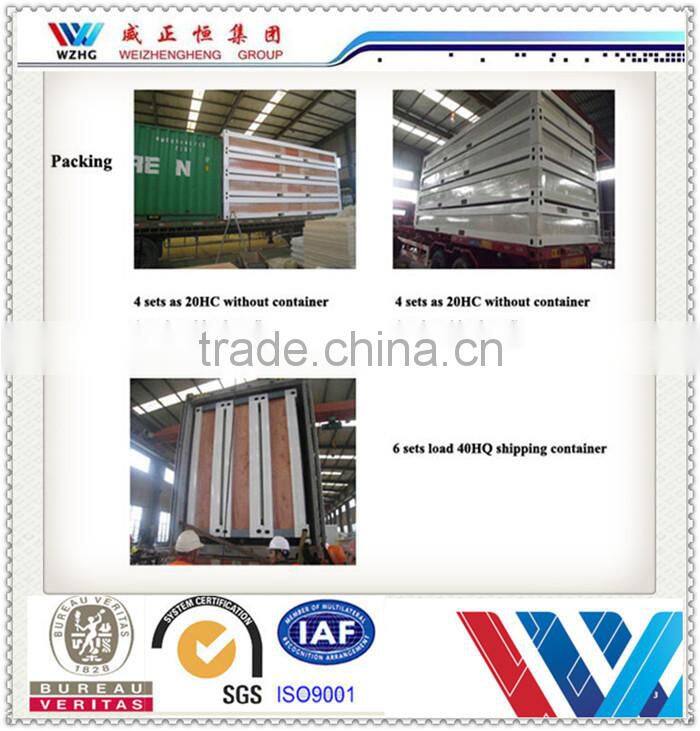

1)Flat packing, 4 units in one package, all knocked down, ship in SOC(shipper owned containers)
2)Flat packing, 7 units loaded into one 40'HQ
Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.
We are the china supplier of the follow metal building materials :
Steel Structure , Prefabricated House , Galvanized Steel Coil , Galvalume Steel Coil , PPGI / PPGL , Galvanized Steel Sheet , Galvalume Steel Sheet , Cold Storage Panel , Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel , Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel, Glass fiber mat .
1. Sample free. the freight cost will be paid by sustomer.
2. You are very welcome to visit our factory before the order, or during the prodction or ater the production before loading.
3. We are very proffecionel in all the kinds of different payment term, FOB, CIF, CFR, CIP by sea container or bt train.
4. For the steel frame you are very welcome to orffer your own design, or you give us your idea,we supplier our design, the production,the loading all for you.
