poultry shed

Specifications

1.steel frame for main structure
2.sandwich panel for enclosure
3.cement for flooring
4.low in cost

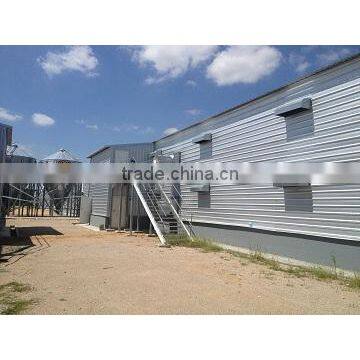

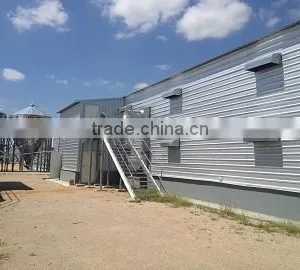

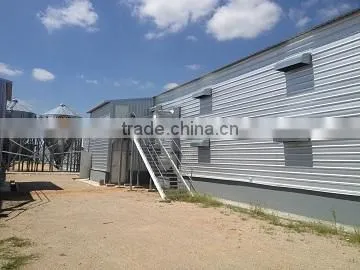

   Easy assembly steel structure chicken shed





1.Structure of the shed:



Steel Structure Main Components
Main Structure	beam and column,material is C or H section steel
Second Structure	purline,tie bar
Brace	cross support, angle brace, brace between purlin/column/beam
Bolt	anchor,ordinary,high strenght bolt
Roof &Wall	sandwich panel or steel plate
Sandwich panel materials	EPS, polyurethane, rock wool, glass wool
Window	Plastic steel
Door	sliding or rolling door





(1) Delivers feed from the silo to the hopper in the poultry house.

(2) There is one feed sensor at the end of main feed line which control the motor on and fully

automatic to release automatic delivery.





3.Sandwich panel for enclosure material:



Product  name	EPS ,Rockwool ,Glasswool sandwich panel;
Usage	Wall and Ceiling;
Effective width	For wall: 950/1150/1200;For ceiling: 950/980mm;
Structure	Upper and lower layer is color steel sheet and EPS,Rockwool,Glasswool in middle
Character	Light in weight,good in quality,
Conventional  color	Ocean blue,crimson,tephrosious;



5.Design technical data:

• Wind load:0.6KN/sqm
• Roof dead load:0.35KN/sqm
• Roof live load:0.5KN/sqm
• Location temperature:-25ºC to 45ºC

6. Equipment for raising poultry(part):



• Feeding and drinking system

•

  No. of grilles per pan	14
  No. of birds per pan could feed	40-55
  Distance per grille	70mm
  Density of broiler	13-18birds/M2
  Max feed per pan for one bird per day	180g/bird
  Dimension	330mm×330mm

• Temperature control system
• Veltination and cooling equipment

•

  	36” Fan	50” Fan
  air capacity	21000 m3/h	43000 m3/h
  size	1000*1000*450mm	1380*1380*450mm
  noise	≤64dB	≤65dB
  power	0.75kw	1.1kw
  voltage	380V	380V
  electric current	1.6A	2.8A
  weight	66kg	88kg
