Good Quality & Lower Perice Steel Structure Building

Good Quality & Lower Perice Steel Structure Building thumbnail-1

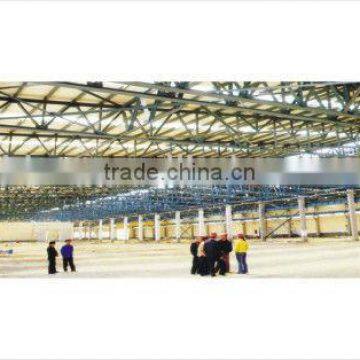

Good Quality & Lower Perice Steel Structure Building photo-1
US$ 35 - 95 MOQ: 50 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JDCC
Material:
Other, Steel, steel+sandwich panel
Contact Supplier Request Quote Chat Now
Jingdao Credit Construction (Beijing) International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JDCC
Material Other, Steel, steel+sandwich panel
Use Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant


ISO9001 prefab steel structure/steel frame warehouse/ light steel frame structure



1) . Easy to install, fire proof, good insulation
2). Certification: ISO9001:2000, SGS Standard

 Technical Parameters:

1.The steel structure of the connection method: welding connection
2.Steel structure design common norms are as follows: "Steel Design Code" (GB50017-2003) Cold-formed steel structure technical specifications" (GB50018-2002) "Construction Quality Acceptance of Steel" (GB50205-2001) "Technical Specification for welded steel structure" (JGJ81-2002, J218-2002) "Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
3.The characteristics of steel Light weight steel structure Higher reliability of steel work Steel anti-vibration (earthquake), impact and good Steel structure for a higher degree of industrialization Steel can be assembled quickly and accurately Large steel interior space Likely to cause sealing structure Steel corrosive Poor fire-resistant steel Recyclable steel shorter duration
4.Commonly used steel grades and performance of steel Carbon
structural steel: Q195, Q215, Q235, Q255, Q275, etc.



1. Brief instruction of the prefabricated steel strucutre/building/ warehouse:







Light steel structure project  includes three process:design, producing and construction. It main



has three systems: main steel structure system, secondary steel structure system and envelope system...





2. The following the detailed spefication of the prefabricated steel structure/building/warehouse:







Main steel structure
NO Item Specification Remarks
1 Column H:HN200-550*100-200*5-10*8-16 Painted  Q235 or Q345
2 Roofing beam HN550*200*10*16 Painted Q235 or Q345
3 Crane beam 5Tons-15 TONS Q235
4 Foundation bolt M24-M45 0.5M-1.3M
5 High strengh bolt 10.9S
Secondary steel structure
1 wall purlin C160*60*2.5 Painted  Q235 or Q345
2 roofing purlin C200*70*3 Painted  Q235 or Q345
3 roofing beam support L100*63*6 Painted  Q235 or Q345
4 column support L100*63*6 Painted  Q235 or Q345
5 bracing 8mm-15mm round steel Painted
6 stay tube 38mm*1.5mm-3mm  round tube Painted
Envelope system
1 Door 4m*5m or 1.8m *2.1m Engine rolling door
2 window 0.8m *2m plastic steel swing window
3 wall panel 950mm*50-100mm white grey 0.4mm eps or rockwool
4 roofing panel 960mm*50-100mm white grey 0.4mm eps or rockwool
5 Ridge 333mm 0.5mm prepainted steel
6 Accessory self-tapping scew,rivet, side and front closure,gutter,skylight window



3. For the prefabricated steel structure/factory/building/warehouse,we need to know the following



    information to design it for you:





No Item Specification
1 Dimension

1.Total width: 2.Total length: 3. Building area 4.side wall height   5.Span



6.Column spacing 7.roofing pitch  8. Surface treatment 9. usage of the builidng
2 Design Index

1.Design live load(KN/M2) on floor     live load(KN/M2) on wall



3. Max crane load(Ton)            4. Max crane lift height (M)



5.Max window Load (KN/M2)  6. Max Rain Load (KN/M2)



7.Max snow load (KN/M2)       8. Max earthque Load (KN/M2)
 3

Enclosing

system



1.Exterior wall-material and thickness    2. roofing material and thickness



3.partition wall -material and thickness
 4 Window



1.style: swing,sliding, or rolling  2. manual or engine 3. Size     4. quantity     5. position


 5  Door



 1.style: swing, sliding or rolling   2. manual or enging3. size       4. quantity     5. position


 6  Others



 1.drainage system   2.ventilation  3.skylight
