Product Details
Place of Origin: | Beijing, China | Brand Name: | JDCC | Model Number: | JDCC-S1115 |
Product Description
flat roof steel building
steel structure workshop Introduction:
The load bearing parts for steel structure workshop are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. Steel workshops are divided into Light Steel Workshops and Heavy Steel Workshops. The Main Structure are usually made of Q345 Steel while the Purlins and Bracing System are made of Q235 Steel. They are the most common steel materials used for steel structure in China.
Advantages of Steel Structural Workshop:
1).Large span for great strength with light deadweight;
2).Short finishing time and low cost;
3).Fire proof and rust proof;
4).Convenient to assemble or disassemble.
steel structure workshop Technical Parameters:
1.Main Structure: Steel Welded H Section
2.Purlin: C Section Channel or Z Section Channel
3.Roof Cladding: Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil
4.Wall Cladding: Sandwich Panel or Corrugated Steel Sheet
5.Tie Rod: Circular Steel Tube
6.Brace: Round Bar
7.Column & Transverse Brace: Angle Steel or H Section Steel or Steel Pipe
8.Knee Brace: Angle Steel
9.Wrapping Cover:Color Steel Sheet
10.Roof Gutter: Color Steel Sheet
11.Rainspout: PVC Pipe
12.Sliding Sandwich Panel Door or Metal Door
13.Windows: PVC/Plastic Steel/Aluminum Alloy Window
14.Connecting: High Strength Bolts
Main parts and materails of steel structure workshop :
No. | Ltem | Spec. | Grade | Unit. |
1 | Main Steel System | |||
Main Steel Frame | Q345B | T | ||
Manufacture charge | T | |||
2 | Secondary part Steel system | |||
Roof purlin | C180*70*20*2.5 | Q235B | T | |
Wall purlin | C180*70*20*2.5 | Q235B | T | |
Brace between column, Horizontal support | Angle steel Φ20 | Q235B | T | |
Knee bracing | Steel Angle L50*4 | Q235B | T | |
Tie bar | Square tubeΦ114*2.5 | Q235B | T | |
Support bar | round tubeΦ32*2.5 | Q235B | T | |
Brace between purlin | round barΦ12 | Q235B | T | |
3 | roof System | |||
Roof panel | 0.5mmthickness corrugated steel sheet V820 | m | ||
Skylight panel | 1.2mm thick | m | ||
Standard Parts | Self-tapping screw,sealing tape,sealant | m | ||
Non-standard Parts | Colored profile parts for ridge,roof | m | ||
Gutter | m | |||
Downpipes | m | |||
4 | Wall System | |||
wall panel | 0.45mm thick corrugated steel sheet V820 | m | ||
Standard Parts | Self-tapping screw,sealing tape,sealant | m | ||
Non-standard Parts | Colored profile parts for edge cover,flashing | m | ||
Door | Colored steel panel door | m2 | ||
Window | Plstic Steel Window | m2 | ||
Awning | m2 | |||
5 | Fastners | |||
Foundation bolts | M24x70 | SET | ||
High strength bolts | M20 | SET | ||
Common bolts | M12 | SET |

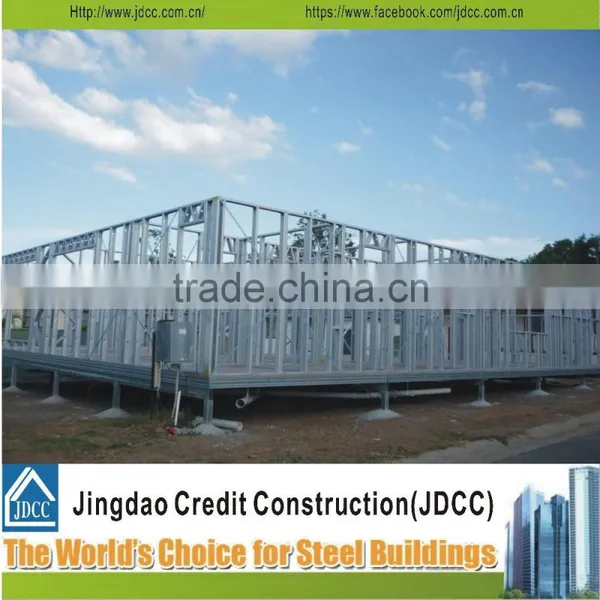

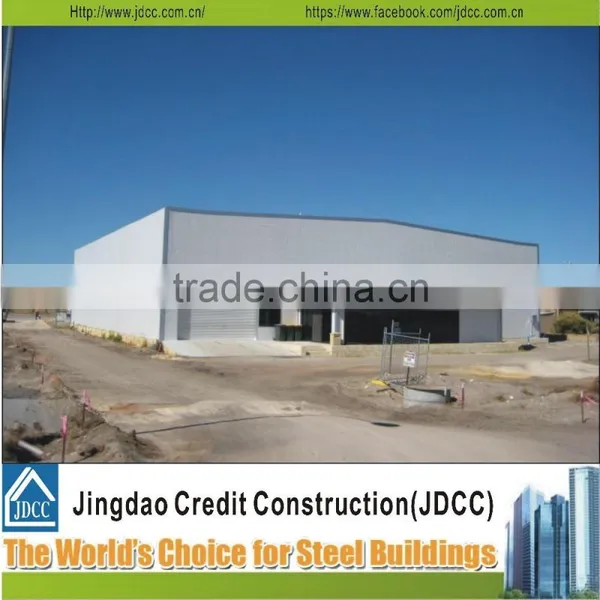

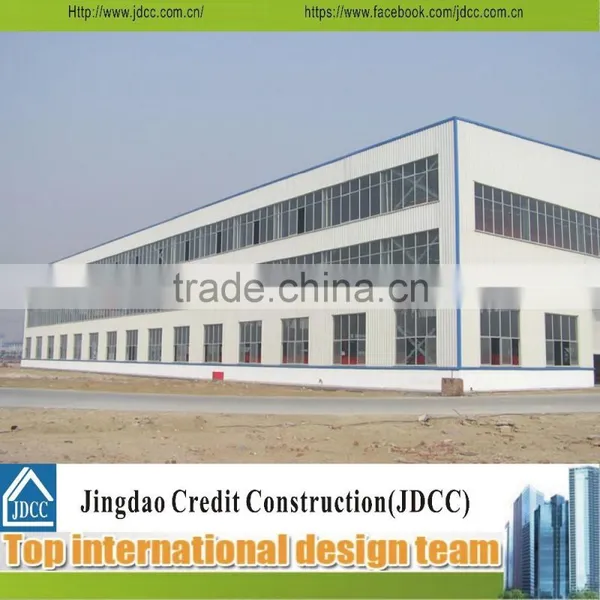

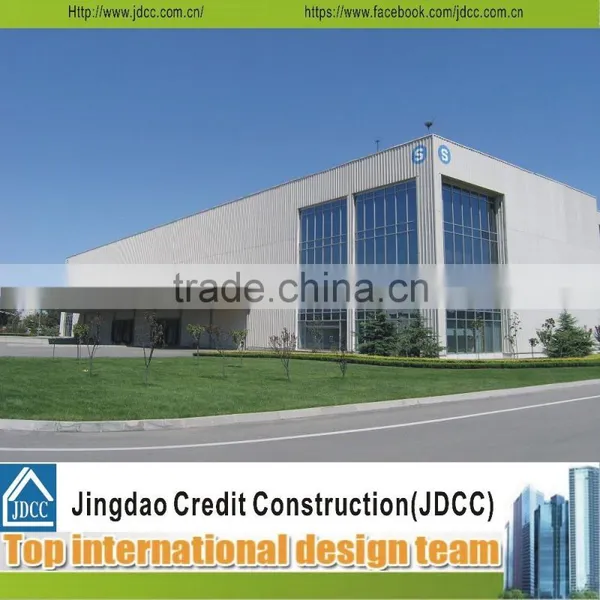

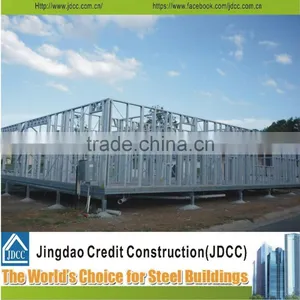

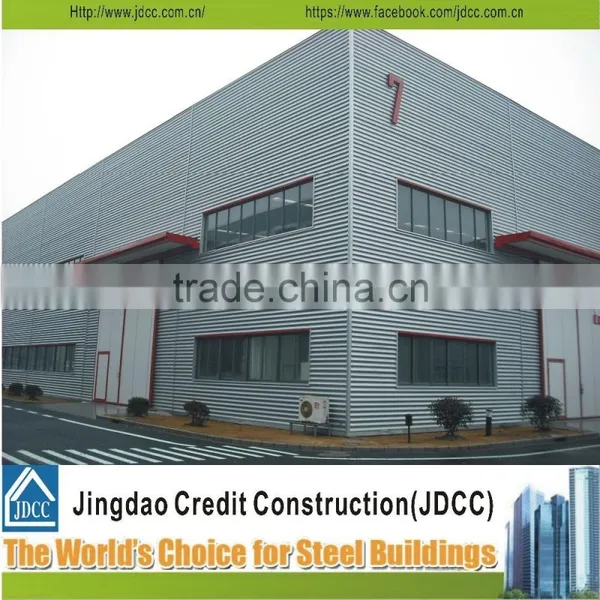

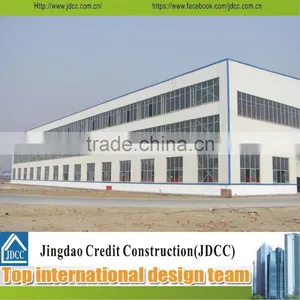

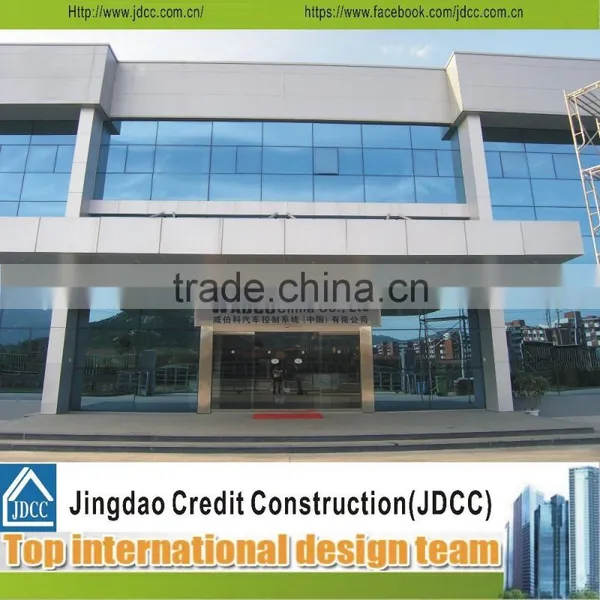

steel structure workshop Products Display :
steel structure workshop Installation Site:
steel structure workshop Projects :
