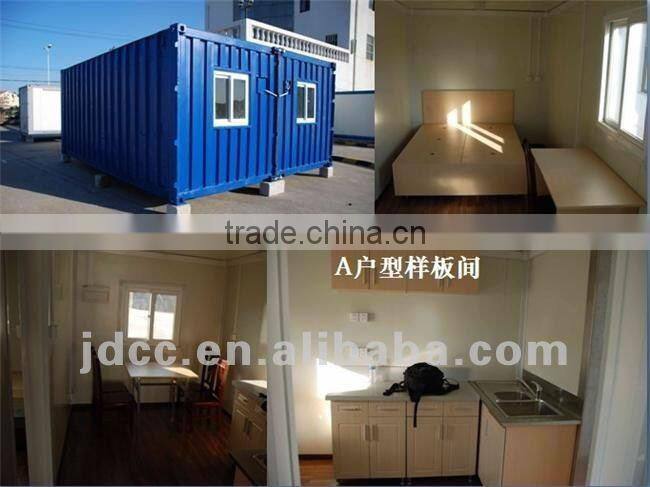

Container House
The details and specifications of the portable container house are as follow:
Wall and Roof Materils : Sandwich panel
Structure : light steel structure container house
Window : PVC Sliding window with Rolling shutter,1100mmx800mm
Door : Steel Security door,740mmx1950mm
Size : 20 feet ; 40 feet
Applications:
Container house has a wide range of applications. It can be used in temporary construction site, commercial industry, civil, military and other fields.
Detailed parameters:
Item |
Sort |
Name |
Specification and parameter |
1 |
product model |
standard intensity |
standard product, the dimension can be designed by the customers’ requirement |
2 |
removable performance |
the house are divided into components in transportation and builded into a whole hoisted house |
|
3 |
specification |
length |
6058mm and 12058mm |
4 |
width |
2438mm |
|
5 |
height |
2591mm |
|
6 |
clear height indoor |
2400mm |
|
7 |
standard component |
ground beam |
3mm galvanized |
8 |
roof beam |
3mm galvanized |
|
9 |
central column |
4mm galvanized |
|
10 |
column on the corner |
4mm galvanized |
|
11 |
wall panel |
75mm double-faced coloured steel EPS sandwich board |
|
12 |
roof panel |
75mm double-faced coloured steel PU sandwich board |
|
13 |
secondary beam |
Z-shaped galvanized steel iron |
|
14 |
roof insulation |
75mm polyurethane |
|
15 |
Floor panel |
18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm PVC |
|
16 |
door |
Steel Security door,740mmx1950mm |
|
17 |
window |
PVC Sliding window with Rolling shutter,1100mmx800mm |
|
18 |
electronics, water supply and drainage |
the plan,design and construction can be provided according to the related law of the country |
|
19 |
furniture and appliance |
Customized-made |
|
20 |
designing parameter |
roof load |
0.5KN/sqm(If the criteria were exceeded, it can also load by reinforcing the structure) |
21 |
wind pressure load parameter |
designing wind speed 210km/h (Chinese standard) |
|
22 |
seismic fortification intensity |
magnitudes 8 |
|
23 |
suitable temperature |
suitable temperature scope.-50°C~+50°C |
|
24 |
construction |
construction tools |
convenient construction ,the tools are spanner, bolt driver and so on |
25 |
construction efficiency |
4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet |
|
26 |
transportation |
container trunk |
container with 12 meters can load 8 houses with the dimension of 20 feet,4 houses with the |
