Chinese Easy Install Low Cost Poultry Shed
US$ 30 - 50
MOQ: 500 Square Meters
Key Specifications
Get Latest Price
Use:
Chicken
Type:
shed
Material:
grade Q235B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese Easy Install Low Cost Poultry ShedUS$ 30 - 50MOQ: 500 Square Meters -
Sealed Two Storey Steel Structure Chicken HouseNegotiableMOQ: 1 Set
-
Sealed Steel Structure Poultry HouseNegotiableMOQ: 1 Set
-
Steel Structure Design Poultry Farm ShedNegotiableMOQ: 1 Set
-
Light Steel Structure Chicken CoopNegotiableMOQ: 1 Square Meter
Use
Chicken
Type
shed
Material
grade Q235B
Brand Name
JDCC
Model Number
JDCC-PS-007

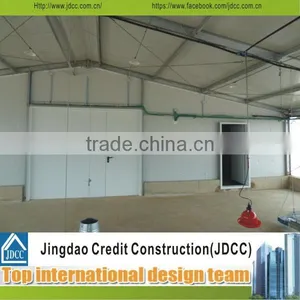

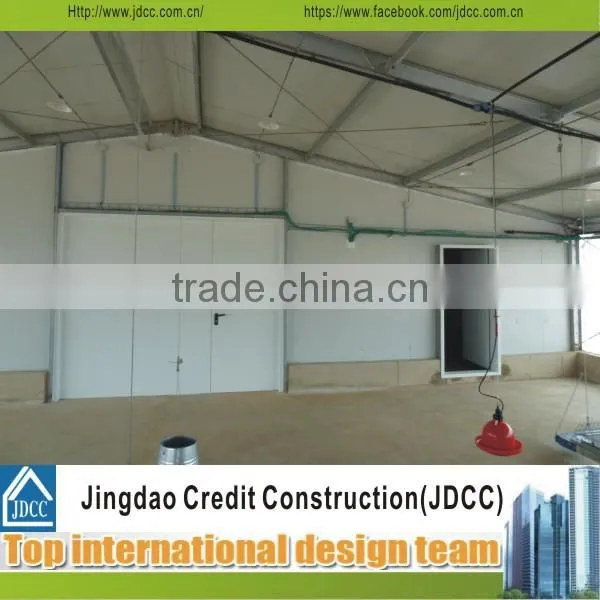

Easy assembly steel structure chicken shed
1.Structure of the shed:
| Steel Structure Main Components | |
| Main Structure | beam and column,material is C or H section steel |
| Second Structure | purline,tie bar |
| Brace | cross support, angle brace, brace between purlin/column/beam |
| Bolt | anchor,ordinary,high strenght bolt |
| Roof &Wall | sandwich panel or steel plate |
| Sandwich panel materials | EPS, polyurethane, rock wool, glass wool |
| Window | Plastic steel |
| Door | sliding or rolling door |
(1) Delivers feed from the silo to the hopper in the poultry house.
(2) There is one feed sensor at the end of main feed line which control the motor on and fully
automatic to release automatic delivery.
3.Sandwich panel for enclosure material:
| Product name | EPS ,Rockwool ,Glasswool sandwich panel; |
| Usage | Wall and Ceiling; |
| Effective width | For wall: 950/1150/1200;For ceiling: 950/980mm; |
| Structure | Upper and lower layer is color steel sheet and EPS,Rockwool,Glasswool in middle |
| Character | Light in weight,good in quality, |
| Conventional color | Ocean blue,crimson,tephrosious; |
5.Design technical data:
- Wind load:0.6KN/sqm
- Roof dead load:0.35KN/sqm
- Roof live load:0.5KN/sqm
- Location temperature:-25ºC to 45ºC
6. Equipment for raising poultry(part):

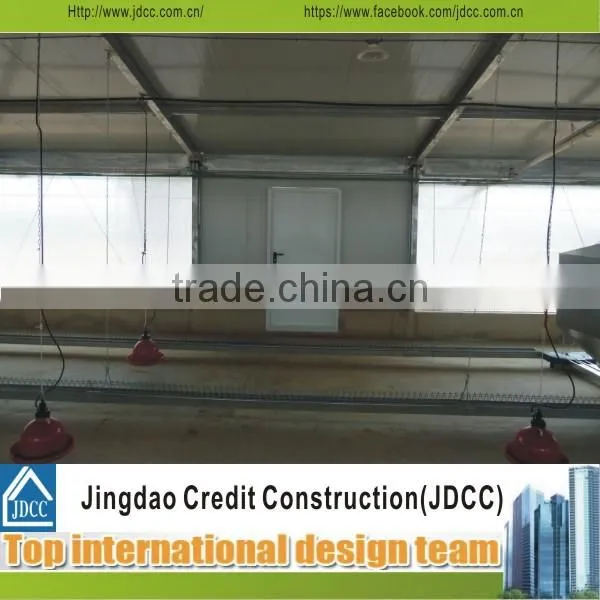

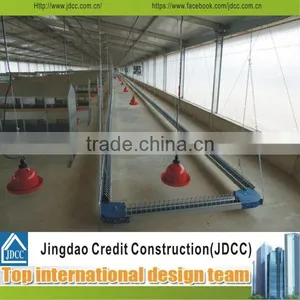

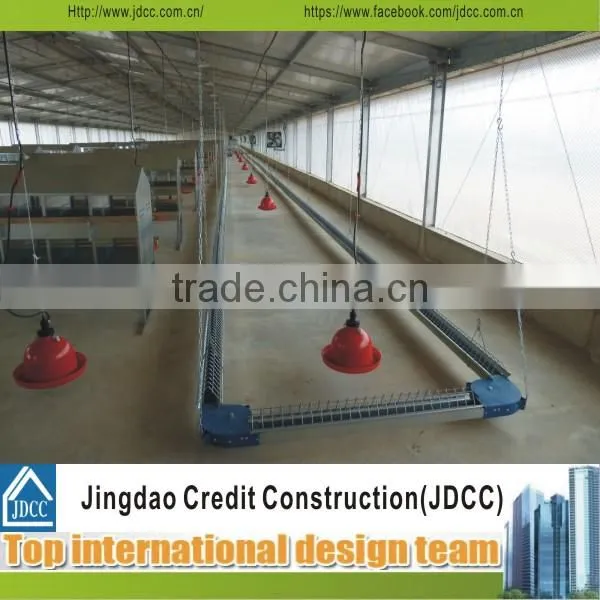

- Feeding and drinking system
No. of grilles per pan
14
No. of birds per pan could feed
40-55
Distance per grille
70mm
Density of broiler
13-18birds/M2
Max feed per pan for one bird per day
180g/bird
Dimension
330mm×330mm
- Temperature control system
- Veltination and cooling equipment
36” Fan
50” Fan
air capacity
21000 m3/h
43000 m3/h
size
1000*1000*450mm
1380*1380*450mm
noise
≤64dB
≤65dB
power
0.75kw
1.1kw
voltage
380V
380V
electric current
1.6A
2.8A
weight
66kg
88kg
