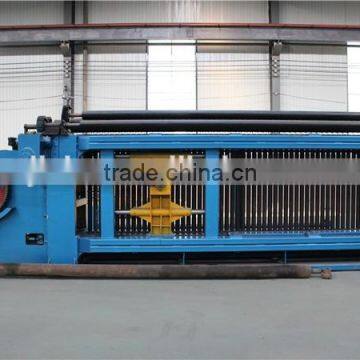

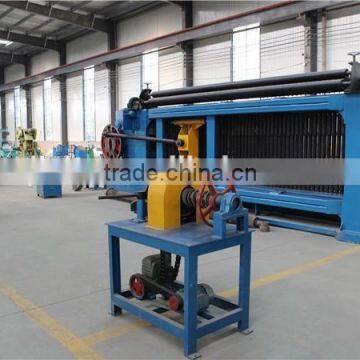

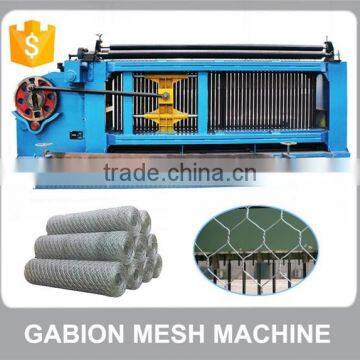

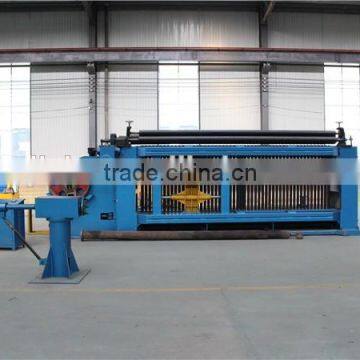

Gabion mesh machine
wire diameter :1.6-3.5mm
Mesh hole: 80*100mm
Max width of mesh :5.6m
Capacity: 195m/hour
Motor:22kw
>>Contact Us
Gabion mesh machine is also called Heavy duty hexagonal wire mesh machine,Which is
widely used to make gabion mesh , the mesh is widely used to make stone wire mesh cages
which is widely used to protect and support the seawall, hillsides, road , bridge and so on.
Model | Mesh hole(mm) | Max width(mm) | Wire diameter(mm) | Twisting number | motor | Capacity(m/h) |
LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 11 | 165 |
LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | |||
LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | |||
LNWL23-120-2 | 120*150 | 1.6-3.2 | 255 | |||
LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 15 | 165 | |
LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | |||
LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | |||
LNWL33-120-2 | 120*150 | 1.6-3.5 | 255 | |||
LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 22 | 165 | |
LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | |||
LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | |||
LNWL43-120-2 | 120*150 | 1.6-3.2 | 255 | |||
LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 22 | 165 |
LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | |||
LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | |||
LNWL43-120-3 | 120*150 | 1.6-3.2 | 255 |
Q: what's the delivery time of gabion mesh machine ?
A: 45 days after we received the deposit.
Q: Could we install the machine by ourselves?
A: yes, if u can. if u have any problem, u could ask us.
Q: Could u install the machine in our factory?
A: Yes, If u need, we will arrange our engineer install the machine in ur factory
Q: Could u make different voltage of this machine ?
A: we could make one type of voltage which is suited to ur country.
