JIAKE welded wire mesh panel machine for fence
Contact Person: Jeff Yang
Skype: jeffyang1125
QQ: 84647077(Wechat)
Mobile: +86-13831875295(whatsapp)
Machine Characteristic:

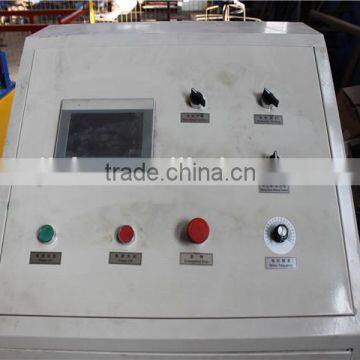

The machine adopt synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms,touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time,welding repeately ,The hopper adopts step motor ,brake motor wheels ,pulling wire by step motor .The greatest advantage is you can adjust the distance of weft wire randomly on the same piece of wire mesh sheet
Main technology
1. PANASONIC PLC program, WEINVIEW touch screen.
2. SCHNEIDER, TENGEN, MEAN WELL such famous low-voltage apparatus.
3. PANASONIC servo motor + planetary reducer for pulling mesh
4. DELTA variable-frequency drive
5. Inverter brake clutch motor and helical gear reducer connect the principal axis directly, high stability, big power. It is our patent technology.
6. New epoxy resin pouring type casting water-cooling transformers high efficiency.
7. Welding electrodes are made of pure red copper, durable.
Technical specification
wire diameter |
2.5-6mm |
longitude wire feeding |
pre-straightened&pre-cut |
longitude wire space |
50mm-300mm |
cross wire feeding |
pre-straightened &pre-cut |
cross wire space |
25mm-300mm |
rated electrical power |
125kva*6pcs |
width of mesh |
up to 2500mm |
rated voltage |
3Phase,380V/220V/415V/440V 50Hz/60Hz |
welding electrode |
48 pcs |
welding speed |
75times/minute |
Finished product &Application
the welding machine is used to weld the fence mesh useing in the highway ,railway ,road fenceing
Machine Loading Pictures:
