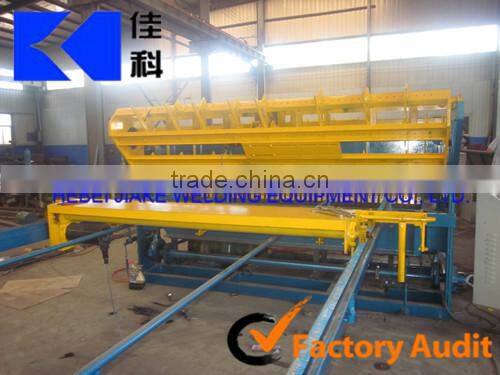

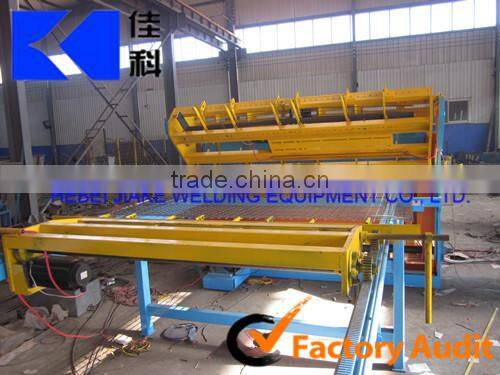

Wire mesh welding machine for fence (factory price)
This wire mesh fence welding machine is integrative welding machine, do without cutting edge(save material), adjustable of distance of Warp thread, input the distance of weft thread to computer, any character can be reach.
Our company developed weft putting in device, it make the putting in better than before, and we have apply the patent for this device.
Main Usage: welding of fence mesh for railway, highway, bridge and building etc.
Main Parameter:
Wire Diameter |
2.5-6.0mm |
Rated Voltage |
380V |
Line wire space |
50-300mm |
Rated Electrical Power |
180KVA |
Cross wire space |
50-300mm |
Motor power |
4.0KW |
Line wire |
Pre-cut wire |
Cross wire |
Pre-cut wire |
Width Of Mesh |
2500mm |
Overall Dimension |
8.48*3.16 *1.7m |
Number of Warp |
48 |
Machine Weight |
4.2T |
Welding Speed |
40-65(times/minute) |
|
|
