Specifications
1.Qualified material2.Flexible design
3.Fast installation
4.Convenient package for shipping
5.Good appearance&low cost

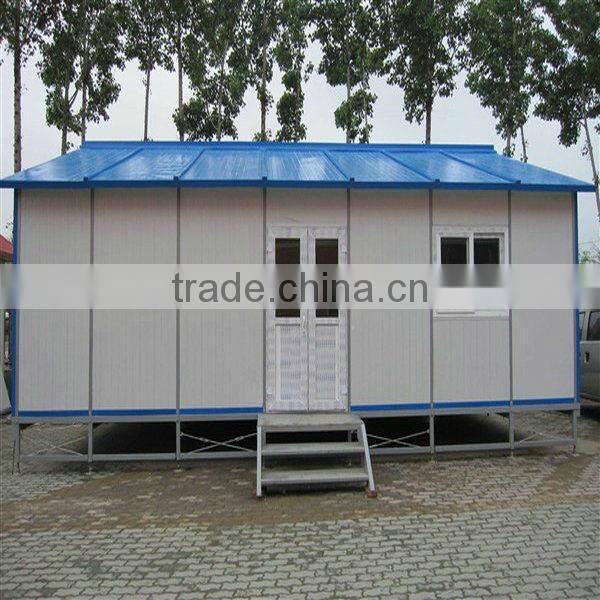

modular house is a standard house model. The size and layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
The detail information is as follow:
No. |
Sort |
Name |
Specification |
1 |
Specification |
length |
No limited |
2 |
Width |
Less than 15m |
|
3 |
Wall height |
3000 mm |
|
4 |
Clear height |
2600 mm |
|
5 |
Roof slope |
1:5 |
|
6 |
Standard accessory |
Wall board |
75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
7 |
Roof board |
75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
|
8 |
Outside door |
Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. |
|
|
Inside door |
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window(W-1) |
PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
|
Window(W-2) |
PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen. |
|
10 |
Channel |
Galvanized Steel Plain Sheet press moulding Material: Painted steel |
|
11 |
Post |
Square steel tube, Material: Painted steel |
|
12 |
Purline |
C style steel Material: Painted steel |
|
13 |
Roof truss |
Gabled truss, Material: Painted steel |
|
14 |
Decoration and connection |
Color steel sheet, 0.35mm thick |
|
15 |
Elevated ceiling |
Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen |
|
16 |
Option |
Decorative floor |
PVC, laminated or ceramic tile |
17 |
Drainage system |
Provided plan, design and construction |
|
18 |
Electric system |
Provided plan, design and construction |
|
19 |
Technical parameter |
Bearing load |
50kg/m2, can be adjusted according to climate |
20 |
Wind pressure: |
0.5KN/M2, can be adjusted according to climate |
|
21 |
Fire proof |
B2 grade |
|
22 |
Resistant temperature |
-25 to 50 |
|
23 |
The resistant earthquake grade |
7 fission activate. |
