Professional 1000 square meter warehouse building with great price
The warehouse in the pictures were designed, constructed and installed by BDSS who are professional and practical in designing, processing and installing. You may give us your own drawings to enable us construct as per your request or you might just give us your ideas, we can design the project based on your ideas. Welcome to contact us for anything you needed.
1.size:
MOQ is20Ton/Tons
2.type:
single slope, double slope, muti-slope ;single span,
double-span ,Multi-span, single floor, double floors
3.base:
Concrete and steel foundation bolts
lumn and beam:
material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,straight cross-section or Variable cross-section

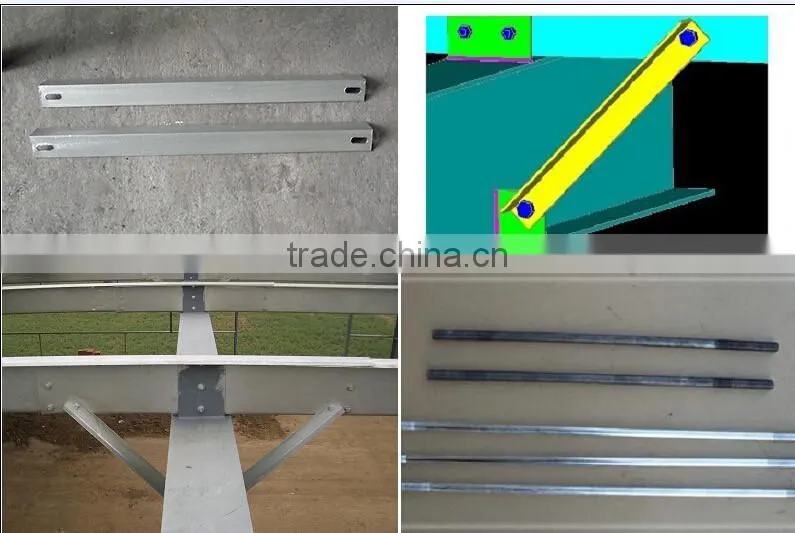

5.bracing:
X or V or other type bracing made from angle , round pipe etc.
6.c or z purlin,
size from C100~C320,Z160~Z300
7.roof and wall panel:
single colorful corrugated steel sheet0.326~0.6mm thick ,YX26-205-820(820mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX15-225-900(900mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX35-125-750(750mm wide),
single colorful corrugated steel sheet0.376~0.6mm thick ,YX51-380-760(760mm wide),
single colorful corrugated steel sheet0.376~0.6mm
thick ,YX51-470(470mm wide),
sandwich panel with EPS, ROCK WOOL , PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!
8.accessories:
semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
9.surfrace:
Paint or hot dip galvanized
10.packing :
main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ
If you need we design for you, pls supply us the following parameter together with detail size:
load on roof(KN/M2), live load on second floor(KN/M2) if have
d speed(KM/H) or wind load(Kn/M2)
3.snow load (Kn/M2) if have
4.earthquake load if have
5.crane (if have): crane span, crane type, crane quantity, crane lift height, max lift capacity, max wheel pressure and min wheel pressure
1 . How much time and personnel are required to complete the project with the building system of DreamHouse ?
1.1 . Villa: The construction period varies depending on the size and design. For a villa of 150m ² : 10 days are required for the basic structure and 20 days for decorating with 5 technicians .
1.2 . Mid-size building (home , hotel, office , schools , clinics, etc. ..)
For a 4-storey building with an area of 1500m ² ,20 days are required to complete the basic construction and 10 days for decoration. The number of technicians required is 20.
1.3 . Steel structure warehouse (factory, workshop , showroom , etc. ..)
Construction times vary depending on the size , the plan and the professional skills of workers. A warehouse of 1000m ², 1 month is required for installation and 20 people for the implementation .
1.4 . Other buildings (bungalows, container house , temporary dormitory , etc. ..)
Construction time : 2 days
Number of Technicians: 6
2 . How long does it take to produce a constructive system?
Generally, 30 days are required to produce a villa or a steel structure building steel structure warehouse or after confirming the architectural level. This is indicated in the quote
3 . How many containers required for my project ?
After confirmation of your request , we send our shipping calculate weight and overall dimensions of all building materials department . After the calculation, we send you our answer.
In general, a 40-foot container is required for the transport of a building with an area of 80m2.
4 . What are the mandatory information to send you to get a quote?
After receiving your first quote, we will send you a complete array that contains all the information we need.
5 . How to ensure that the structure meets the criteria for local buildings ?
Our structures are in line with national and European standards ( Eurocodes 8 TSR ) . We use the latest building technologies and calculations are made according to the rules of art. Finally, an auditor certifies each office building after an on-site inspection .
6 . How to become agent of your company?
First of all, thank you for your interest in our company. Generally , we take as agents that customers who bought our products at a given quantity .
After receiving your request, we will take it into consideration and make a careful assessment .
7.Your buildings are they resistant to hurricanes and earthquakes?
Ideally , the process of construcion based modular steel frames has been developed in Japan to address critical environmental conditions . The strength of steel and modular construction allow the absorption of large loads generated during disasters.
Buildings withstand earthquakes of level 7 on the Richter scale and cyclone with sustained winds up to 100km / h.
8. Do the houses have warranty?
If the goods are damaged in transit , or the house without problems in the case of external damage , we will send you the new goods in the next order. In this case, you can save the high sea freight !
You can call me in very time, 24 hours services,
