Specifications
1 materials: stainless steel, copper, synthetic fiber etc.2 wire dia:0.08mm-0.5mm
3 width:100mm-1200m
Knitted Wire Mesh
Knitted wire mesh is a highly adaptable and configurable material offering many advantages over other materials in air and liquid filtration, thermal shock and vibration applications.
Knitted mesh made by interlocking loops. These loops can move relative to each other in the same plane without distorting the mesh, giving knitted mesh a two-way stretch. This cannot be done with woven meshes, as there is always some form of connection between the wires at the corners of the square openings. From a functional point of view, it is this flexibility that gives knitted mesh its unique advantages for industrial uses.
1.Wire diameter range:0.10mm-0.55mm (common wire through is:0.20mm - 0.25mm).
2.Hole size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).
3.The common width of Knitted Wire Mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.
4.The surface condition of the Knitted Wire Mesh: the flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)
5.The main material of Knitted Wire Mesh: Aluminum wire,stainless steel wire, galvanized wire,fibre wire,plastic wire,PP,PC,PE,PVC,etc.
Stainless steel Knitted wire mesh :

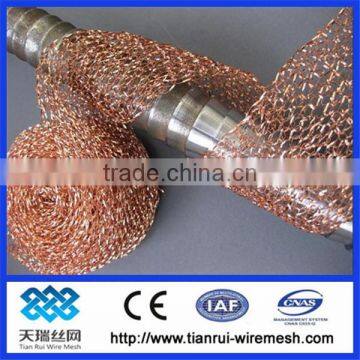

Copper knitted wire mesh :
PP Knitted wire mesh :
6.Main purposes: mainly used for processing demister for separation of the gas inside the droplets. Can also be extrusion molding, for manufacturing a filtration device
Our company owns more than 20 different types of weaving machine, which can produce with the wire diameters ranging from 0.08 mm to 0.3 mm. The molded meshwork can be rolled to wave type. And there are kinds of materials for the clients to choose. The standard of Knitted Wire Mesh in China.
Packing :
welcome to send inquiry to me :
