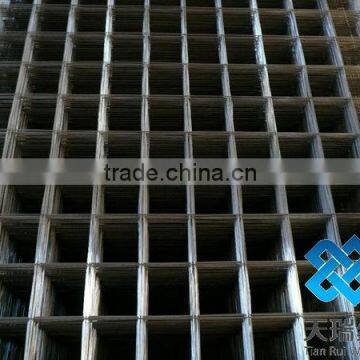

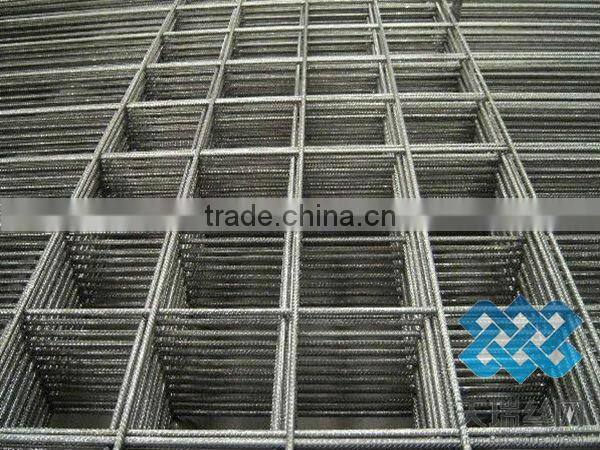

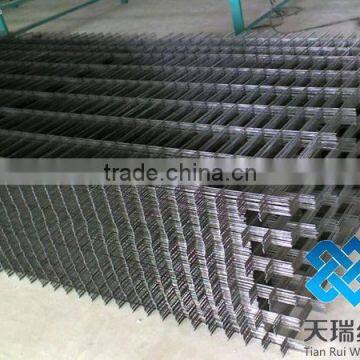

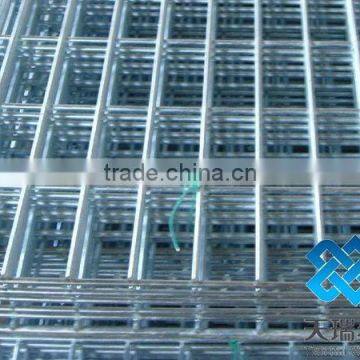

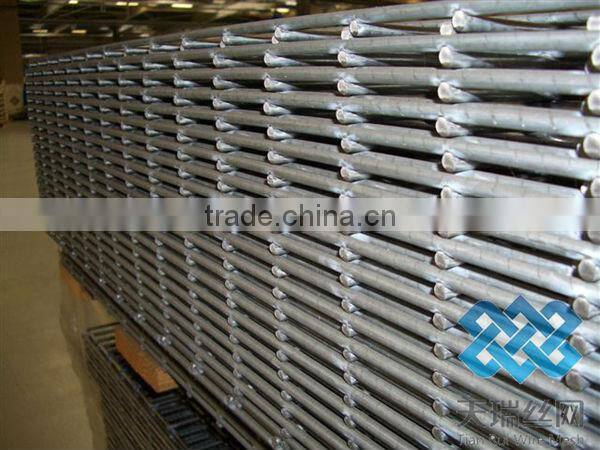

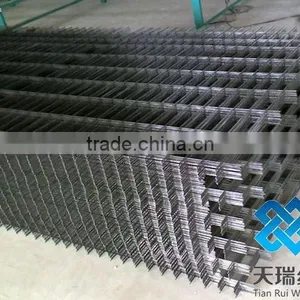

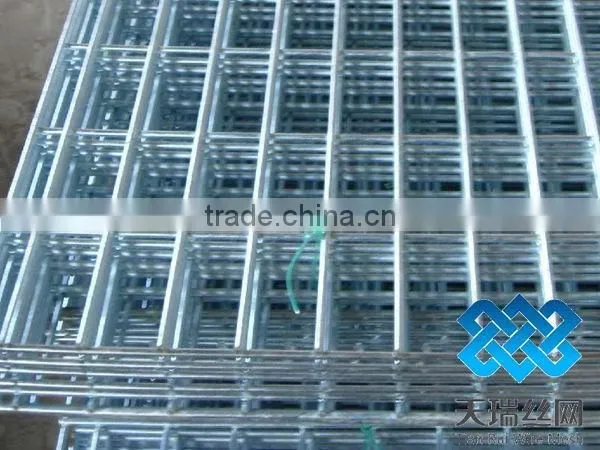

High quality of galvanized and black steel welded wire mesh panel
· Materials: low carbon steel wire, stainless steel wire
· Galvanized welded mesh panel is made of superior quality welded mesh, with flat even surface, firm structure, widely used in building, food, agriculture and more
· Wire diameter: 2 to 14mm
· Size: 3.5 x 12m or 2.3 x 11.8m
· Container size: Width: 2.35m Length: 11.9m
· Assortments: 1)welded stainless steel wire mesh panels,2)galvanized welded mesh panels (hot-dipped galvanized and electric galvanized) 3)PVC-coated welded mesh panel/frame welded wire mesh panel
· Features: smooth and trim, mesh surface, solid and uniform structure and superior integral performance, it won’t loosen even subject to local cutting or pressure, it has the characteristics of corrosion- and oxidation-resistant

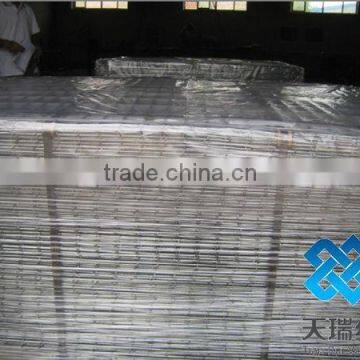

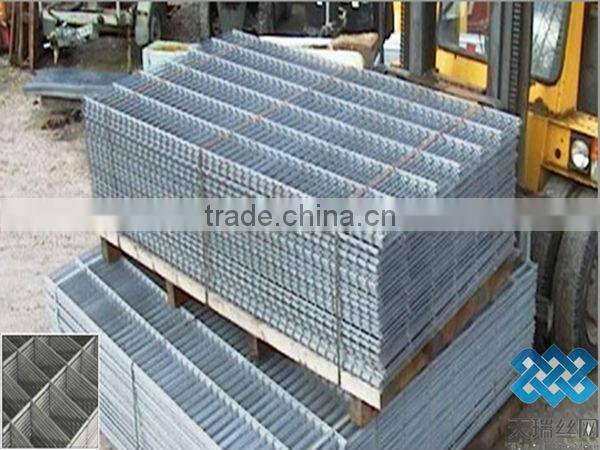

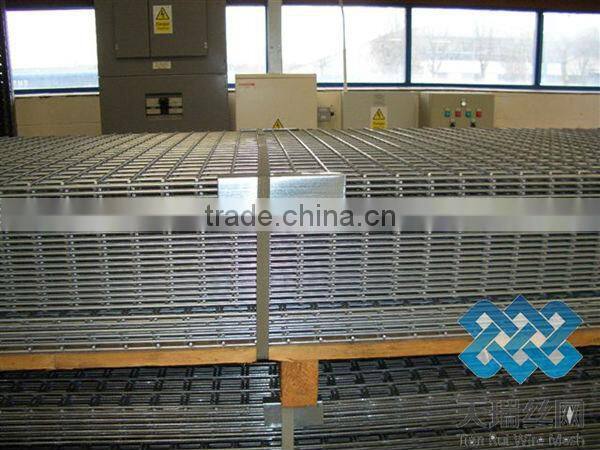

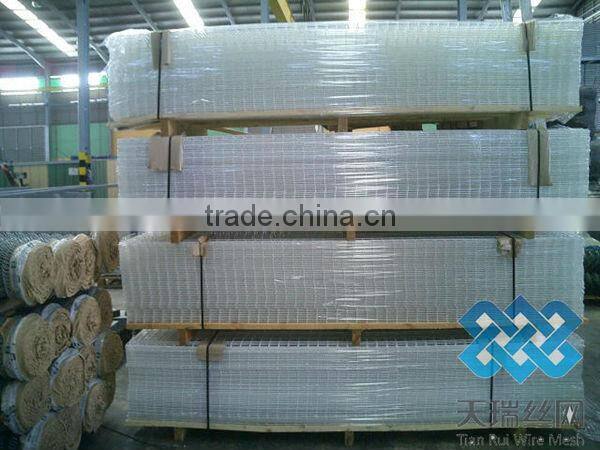

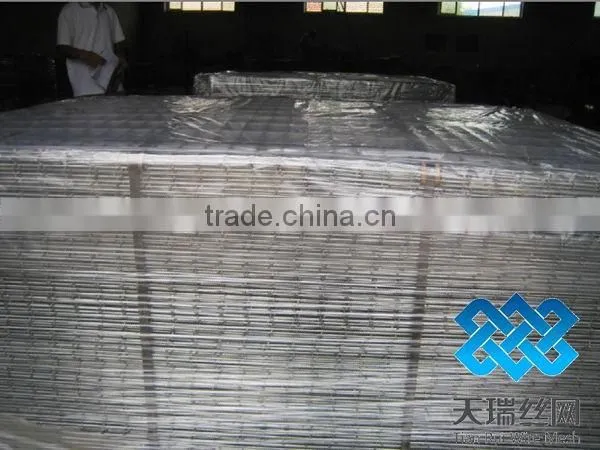

· Package: no bare/pallet
· Specifications:
o 1/4 x 1/4-inch/6.4 x 6.4mm/wire gauge: 22 to 24BWG/0.7 to 0.6mm
o 3/8 x 3/8-inch/10.6 x 10.6mm/wire gauge: 19 to 22BWG/1.0 to 0.7mm
o 1/2 x 1/2-inch/12.7 x 12.7mm/wire gauge: 16 to 23BWG/1.6 to 0.6mm
o 5/8 x 5/8-inch/16 x 16mm/wire gauge: 18 to 21BWG/1.2 to 0.8mm
o 3/4 x 3/4-inch/19.1 x 19.1mm/wire gauge: 16 to 21BWG/1.6 to 0.8mm
o 1 x 1/2-inch/25.4 x 12.7mm/wire gauge: 16 to 20BWG/1.6 to 0.9mm
o 1 x 1-inch/25.4 x 25.4mm/wire gauge: 14 to 21BWG/2.0 to 0.8mm
o 11/2 x 11/2-inch/38 x 38mm/wire gauge: 14 to 19BWG/2.0 to 1.0mm
o 1 x 2-inch/25.4 x 50.8mm/wire gauge: 14 to 16BWG/2.0 to 1.6mm
o 2 x 2-inch/50.8 x 50.8mm/wire gauge: 12 to 16BWG/2.6 to 1.6mm
Data Sheet:
Welded wire mesh panel | |||
Size |
Mesh (CM) |
Wire dia. (MM) |
Weight (KG) |
1MX2M |
3X3 |
2.0 |
3.22 |
1MX2M |
3X3 |
3.0 |
7.03 |
1MX2M |
3X3 |
4.0 |
12.10 |
1MX2M |
5X5 |
2.0 |
2.00 |
1MX2M |
5X5 |
3.0 |
4.34 |
1MX2M |
5X5 |
4.0 |
7.72 |
1MX2M |
8X8 |
2.0 |
1.29 |
1MX2M |
8X8 |
3.0 |
2.91 |
1MX2M |
8X8 |
4.0 |
5.18 |
Black panel |
Pvc coated panel |
||||||
|
Wire dia. |
Mesh(cm) |
L |
W |
|
Before/After dia. |
|
8# |
4.05 |
2 |
4 |
2 |
10.17 |
4.05/4.85 |
10.89 |
9# |
3.65 |
2 |
4 |
2 |
8.26 |
3.65/4.45 |
8.75 |
10# |
3.25 |
2 |
4 |
2 |
6.54 |
3.25/4.05 |
6.99 |
11# |
2.94 |
2 |
4 |
2 |
5.35 |
2.94/3.54 |
5.72 |
12# |
2.64 |
1 |
3 |
1.2 |
8.68 |
2.64/3.24 |
9.20 |
13# |
2.33 |
1 |
3 |
1.2 |
6.76 |
2.33/2.83 |
7.16 |
14# |
2.03 |
1 |
3 |
1.2 |
5.13 |
2.03/2.53 |
5.43 |

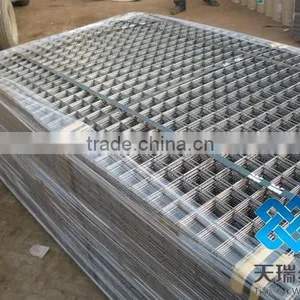

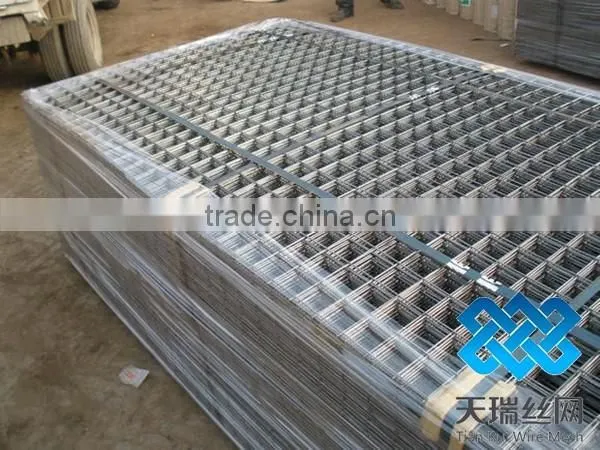

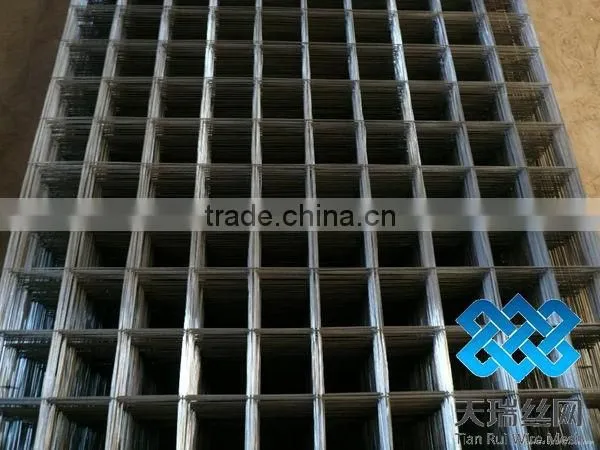

Products Display:
