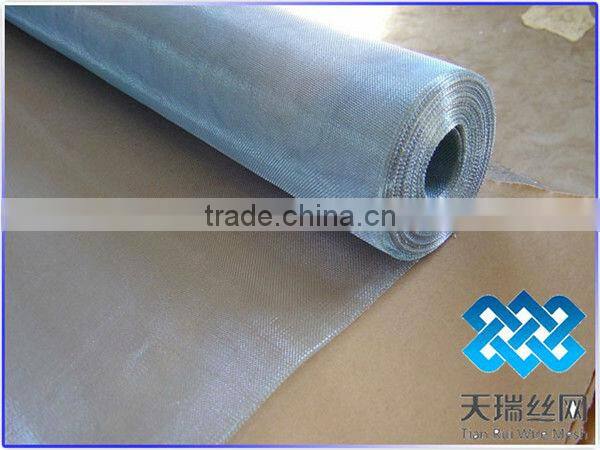

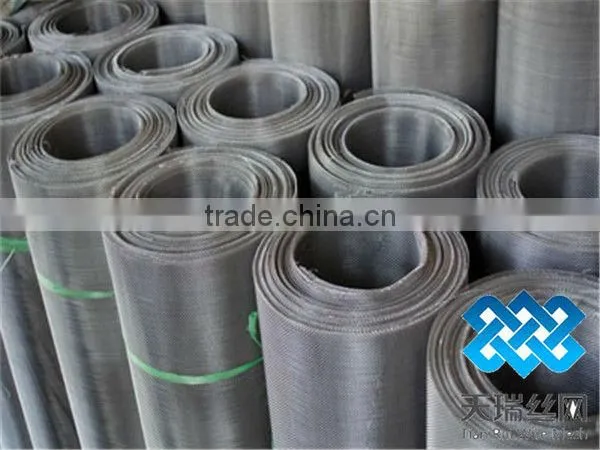

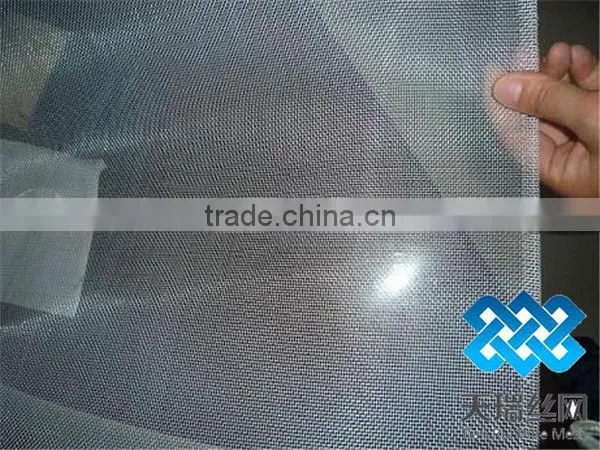

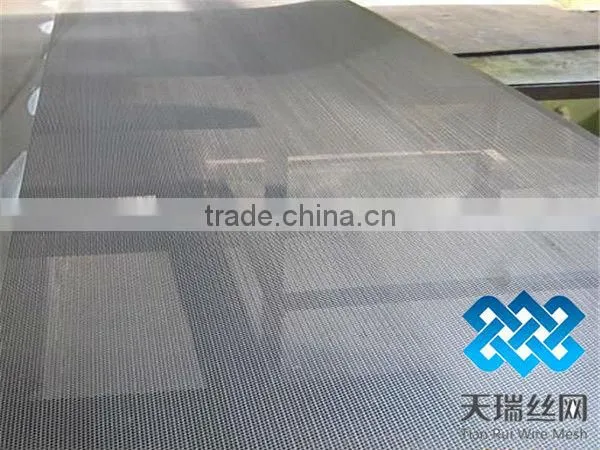

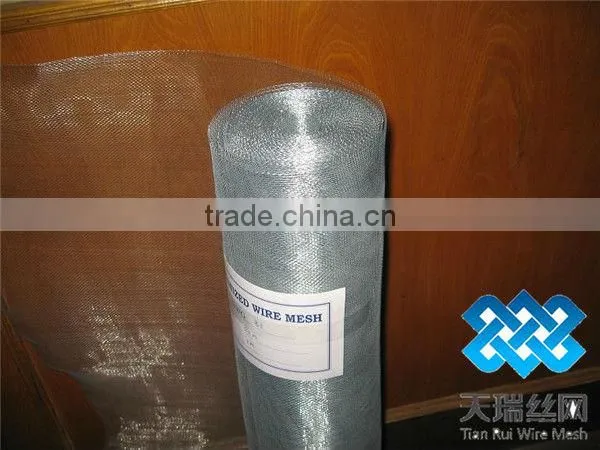

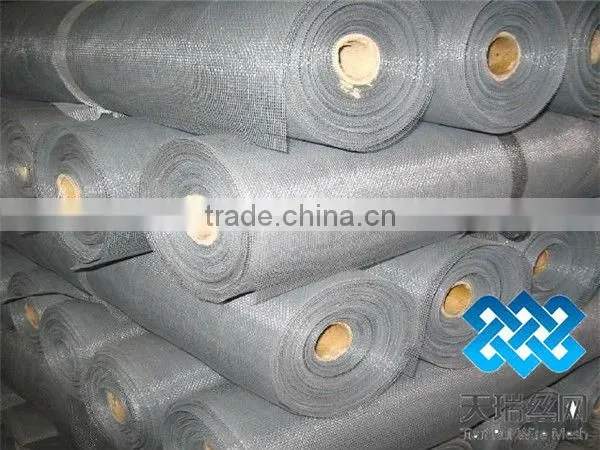

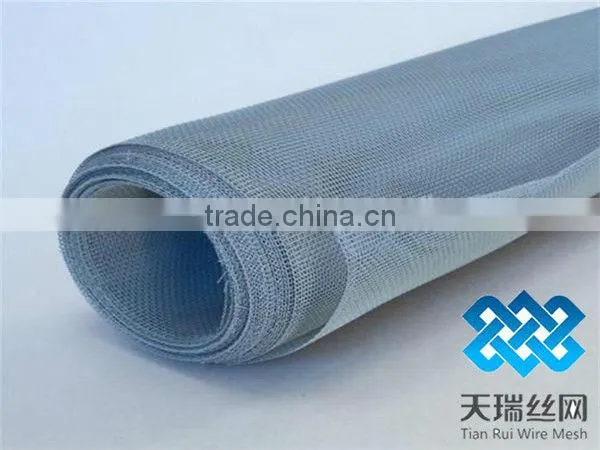

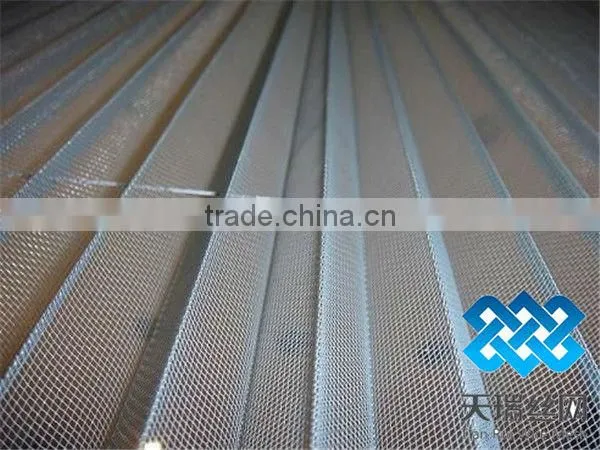

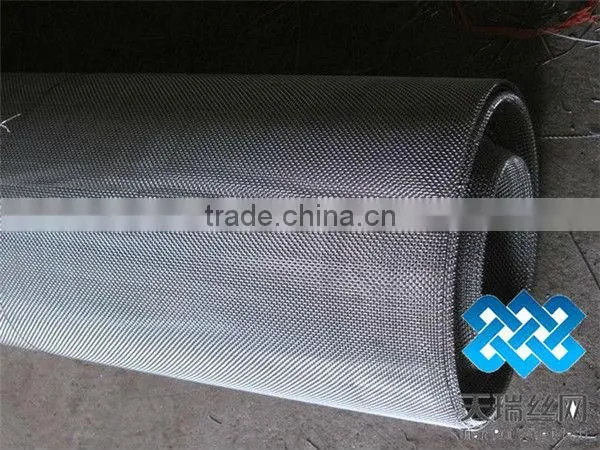

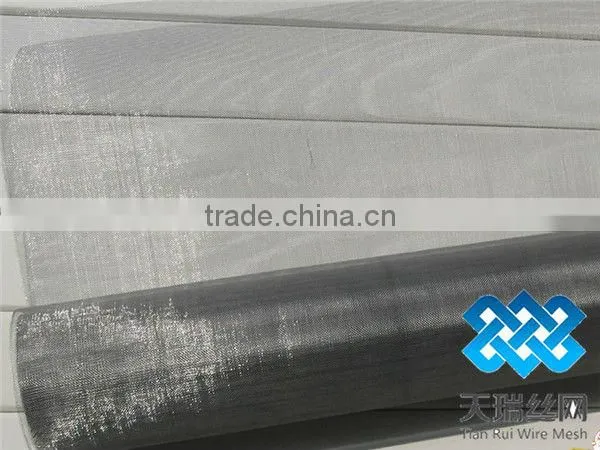

stainless steel window screen/stainless steel insect screening

Specifications

stainless steel insect screening
20x20x0.37mm
weight:38-41kg
material:302,304,316,316L,304L
0.6-1.5m breadth

 Stainless steel window screen



Wire diameter: 0.2mm-2.0mm

Mesh: 20*20,18*18,16*16,18*16,18*14

Material: SS304,304L,316,316L

Width :0.8-1.5m

Weave: plain weave and twill weave

We offer stainless steel window screen in different materials,widely used in hotels and buildings to prevent insects and bugs from entering.

Features: acid resistant, alkali resistant, high temperature resistant, high tensile force and wear resistance.

Property:keep out flies, wasps, bees, mosquitoes and other insects but not midges, provides excellent light transmission and allows good air-flow. Have Good stability and resistance to rust, heat, acid, alkaline and corrosion.







Advantages:
1. Allows superior airflow
2. Improved visibility and good stability
3. Anti-corrosion and rust resistance
4. Lighter weight
5. Nice appearance
6. Much stronger than standard insect screen
7.Heat and acid resistance, therefore it could be applied under high temperature workshops and civil construction .



Specification :

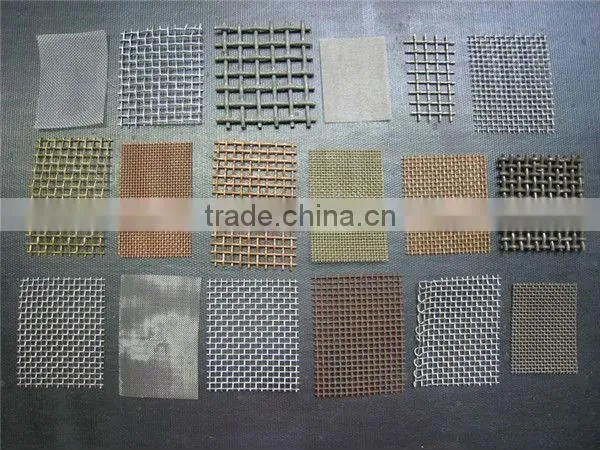

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
3mesh x 3mesh	14	6.27
4mesh x 4mesh	16	4.27
5mesh x 5mesh	18	3.86
6mesh x 6mesh	18	3.04
8mesh x 8mesh	20	2.26
10mesh x 10mesh	20	1.63
20mesh x 20mesh	30	0.95
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.30
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.060
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	50	0.0385
Roll width: 2'-8'

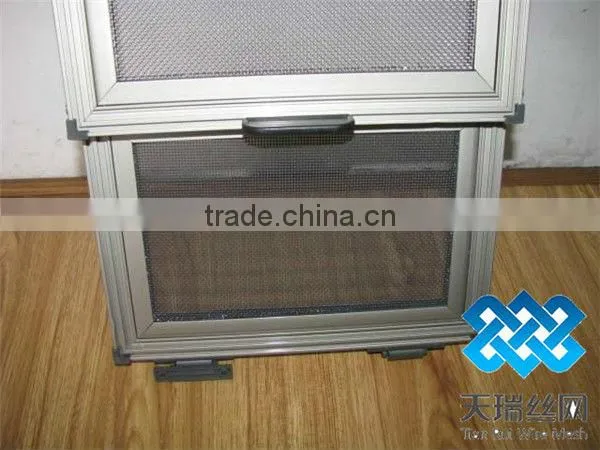

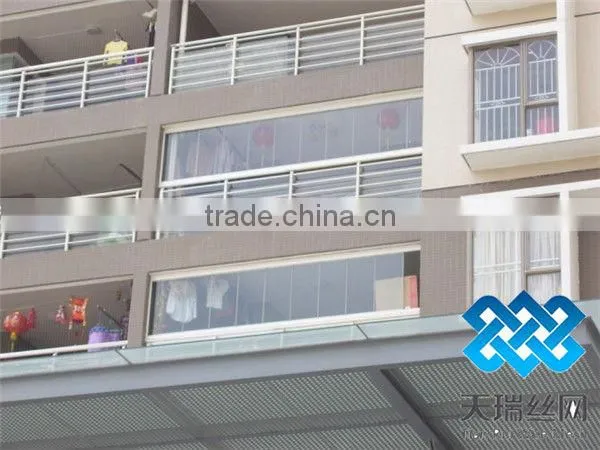

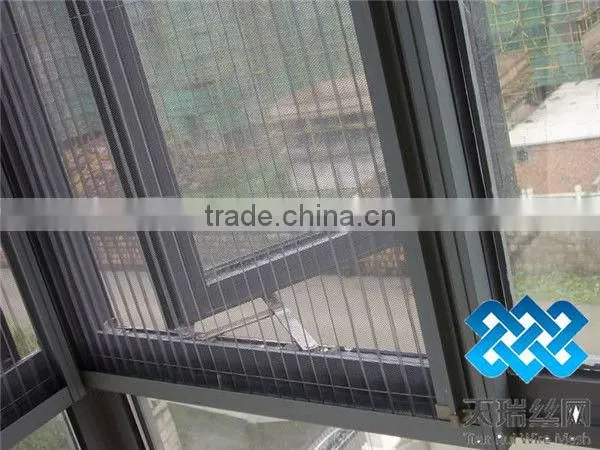

Application: Widely used for windows and corridors to prevent insects from interrupting widely used in architectures, husbandry, gardens, hotels and other sites that preventing mosquito









Packing :
