Specifications
Mesh: 2.5mm*2.5mm---10mm*10mmWeight: 45g/m2---260g/m2
Color:white. green, orange, biue and so on.
Roll length: 50/roll, 100m
1.Performance
Our fiberglass mesh have good grid fixity, and high strength, good adhesion with cement mortar, excellent fitting positioning, excellent alkali resistance is very prominent, resistant to high alkaline substances concrete erosion. Strength retention rate> 90%, elongation <1%, the durability of more than 50 years. High elastic modulus 80.4Gpa, is can't reach by other chemical fibers.
2.Specifications
1) Alkali resistant fiberglass mesh size: 2.5X2.5mm 4X4mm 5X5mm 10X10mm etc .
2) The weight of Alkali resistant fiberglass mesh :45g,60g,75g,100g,145g,165 etc .
3) We can produce many specifications and use different packagings according to customers' requests.
3.Technical date sheet
| Item Number | Yarn(Tex) | Mesh(mm) | Density Count/25mm | Finish Weight(g/m2) | Tensile Strength × 20cm | Woven Structure | Content of resin%(≥) | ||||
| Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||||
| 5x5-70 | 45×2 |
200 | 5 | 5 | 5 | 5 | 70 | 550 | 850 | Leno | 16 |
| 5x5-80 | 67×2 |
200 | 5 | 5 | 5 | 5 | 80 | 700 |
850 | Leno | 16 |
| 5x5-90 | 67×2 |
250 | 5 | 5 | 5 | 5 | 90 | 700 | 1050 | Leno | 16 |
| 5x5-110 | 100×2 |
250 | 5 | 5 | 5 | 5 | 110 | 800 | 1050 | Leno | 16 |
| 5x5-125 | 134×2 |
250 | 5 | 5 | 5 | 5 | 125 | 1200 | 1300 | Leno | 16 |
| 5x5-135 | 134×2 |
300 | 5 | 5 | 5 | 5 | 135 | 1300 | 1400 | Leno | 16 |
| 4x4-135 | 100×2 |
250 | 4 | 4 | 6 | 6 | 135 | 1000 | 1300 | Leno | 16 |
| 5x5-145 | 134×2 |
360 | 5 | 5 | 5 | 5 | 145 | 1200 | 1300 | Leno | 16 |
| 4x5-150 | 134×2 |
300 | 4 |
5 | 6 | 5 | 150 | 1300 | 1300 | Leno | 16 |
| 5x5-160 | 134×2 |
400 | 5 | 5 | 5 | 5 | 160 | 1450 | 1600 | Leno | 16 |
| 4x4-160 | 134×2 |
300 | 4 | 4 | 6 | 6 | 160 | 1550 | 1650 | Leno | 16 |
| 4x5-165 | 134×2 |
350 | 4 | 5 | 6 | 5 | 165 | 1300 | 1300 | Leno | 16 |

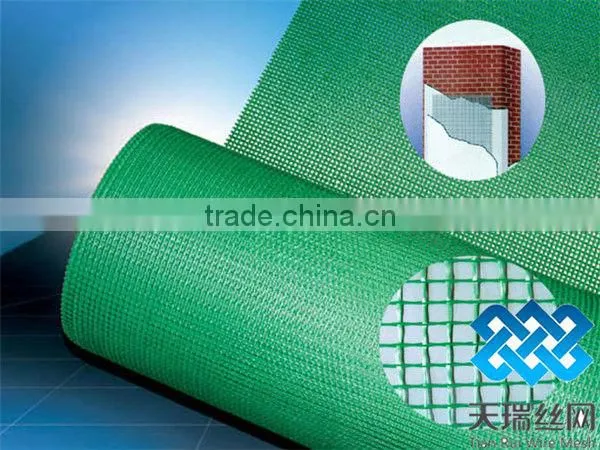

green colour fiberglass mesh :

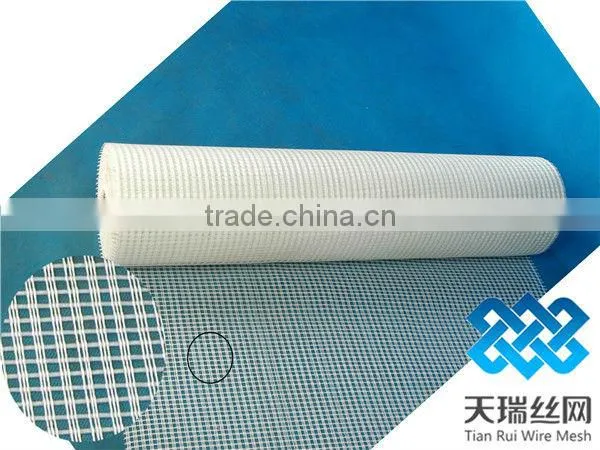

white colour fiberglass mesh:

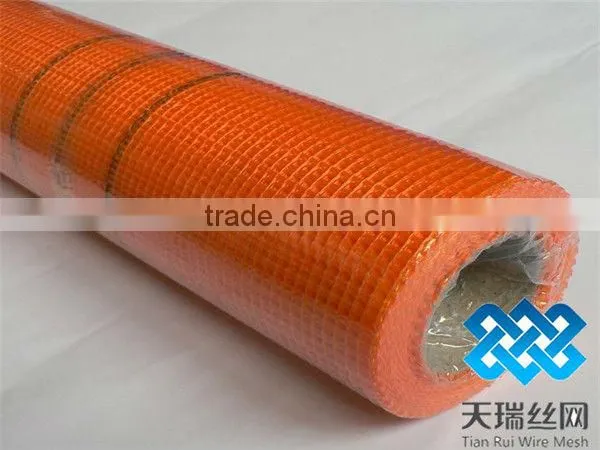

orange colour fiberglass mesh :

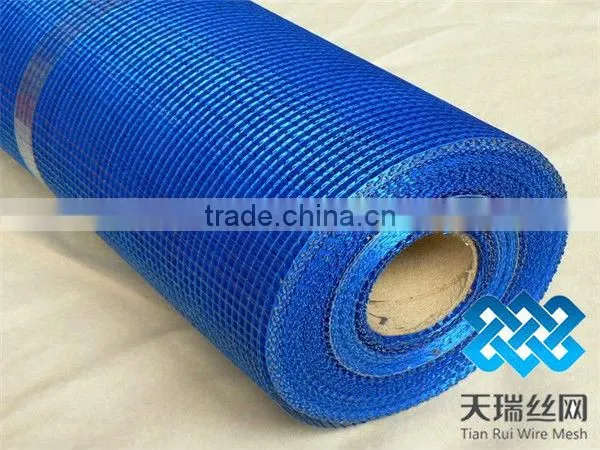

blue colour fiberglass mesh :
4.Application :
(1). 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
(2).110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
(3).145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).
(4).160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.
5.fiberglass mesh production process :
6.packing :
each fiberglass mesh roll is put in PVC bag, and then put in to carton or pallets.
welcome to send inquiry to me :
