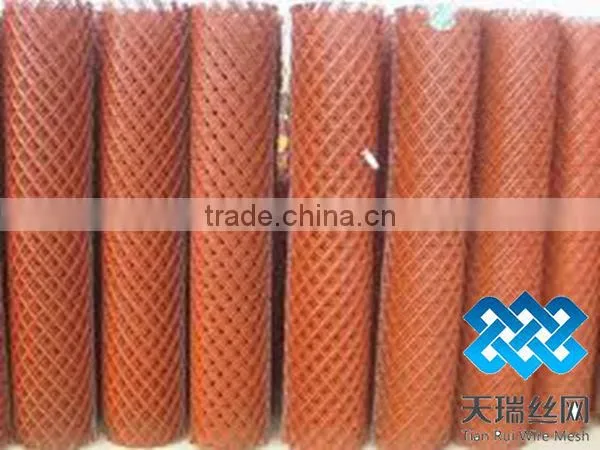

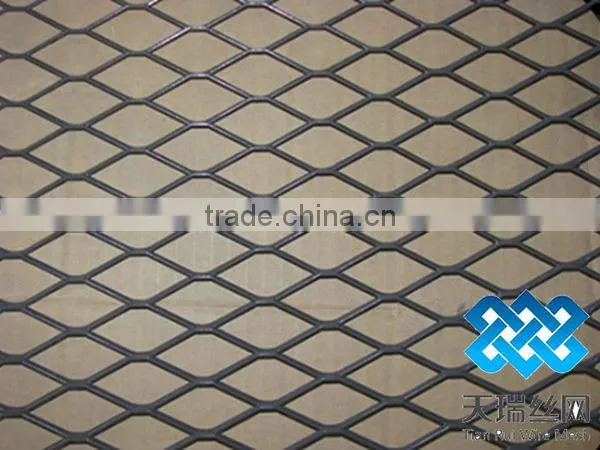

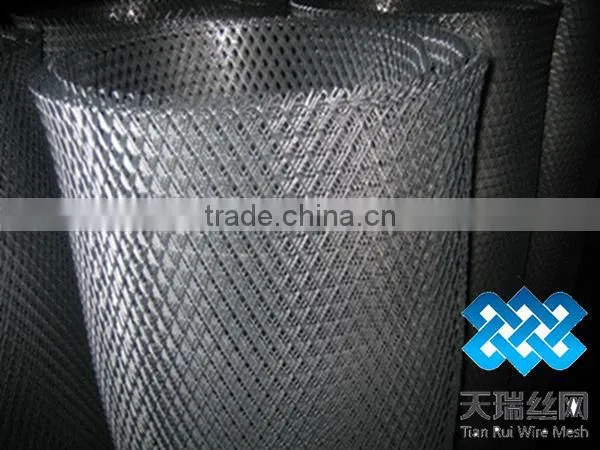

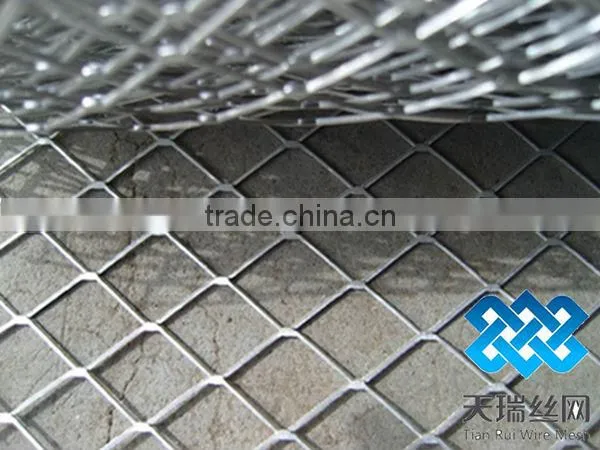

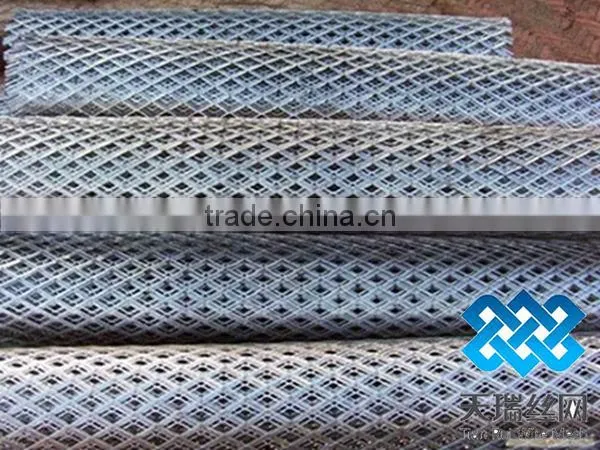

steel/aluminum expanded metal wire mesh (factory)
- 10000 Square Meter / Square Meters per Month
- XINGANG
- T/T Credit Card
Product Details
Standard: | AISI, ASTM | Grade: | metal sheet | Thickness: | 0.5-6mm, 0.5mm-6mm |
Place of Origin: | Hebei, China | Brand Name: | Tianrui | Model Number: | Em-77 |
Type: | Other, metal plate, expanded mesh | Technique: | Hot Rolled | Surface Treatment: | Other, stainless steel |
Application: | Other, construction, construction mesh | Special Use: | High-strength Steel Plate | Width: | 0.1-2m, 0.1-2m |
Length: | 1-30m, 1-30m |
Product Description

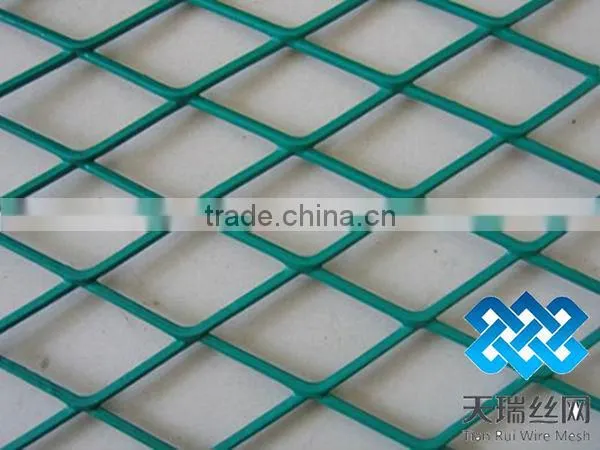

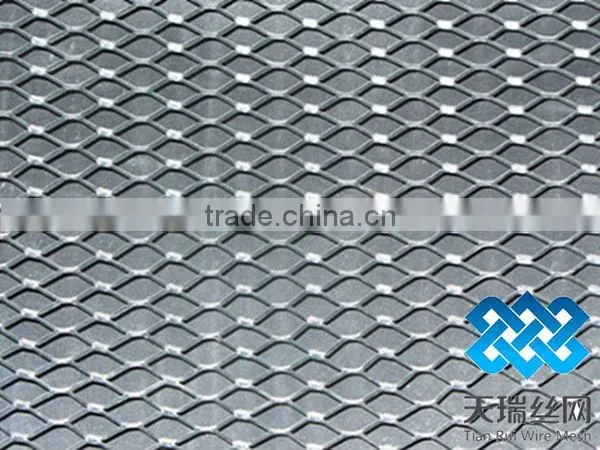

steel/aluminum expanded metal wire mesh (factory)
Material: Aluminium plate, thin low carbon steel plate, stainless steel plate, al-ag alloy plate, copper plate and nickel plate.
Weaving: Be made by punching and be classified as expanded aluminium plate, expanded steel plate and stainless steel plate. Opening shape: rhombus, square, round, triangle and scale -shaped opening.
Characteristics: Be fast, enduring&graceful.

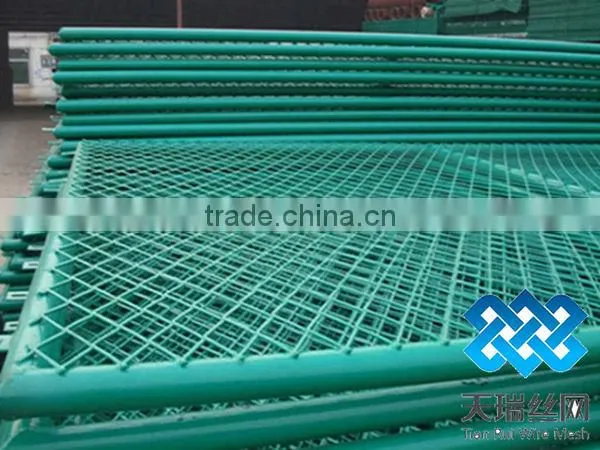

Usefulness: Be broadly used in the areas such as highway, railway, residence, irrigation works and the protection partition of machines, electrical appliances, windows and aquiculture.
Packing: in rolls or in wooden pallet.
Specification:
specifications | width (m) | length (m) | weight (kg/m2) | |||
mesh thickness(mm) | distance short(mm) | distance long(mm) | strip(mm) | |||
0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
