Home > Products > Expanded Wire Mesh > Expanded metal mesh,aluminum,stainless steel.copper,brass sheet
Expanded metal mesh,aluminum,stainless steel.copper,brass sheet
- 100 Piece / Pieces per Month
- xingang
- T/T Credit Card
Product Details
Standard: | AISI, ASTM, BS | Grade: | Aluminum, stainless steel. Galvanized iron | Thickness: | 0.5mm-6mm |
Place of Origin: | Hebei, China | Brand Name: | tianrui | Model Number: | yld12-11 |
Type: | Steel Plate | Technique: | Cold Rolled | Surface Treatment: | Galvanized |
Application: | Other, Protecting Mesh | Special Use: | Silicon Steel | Width: | 0.5-2m |
Length: | 4m |
Product Description
Specifications
1.Sheet thickness:0.5-6mm2.Aluminum stainless steel Galvanized iron
3Variety:small medium and heavy
4Shape:diamond hexagonal

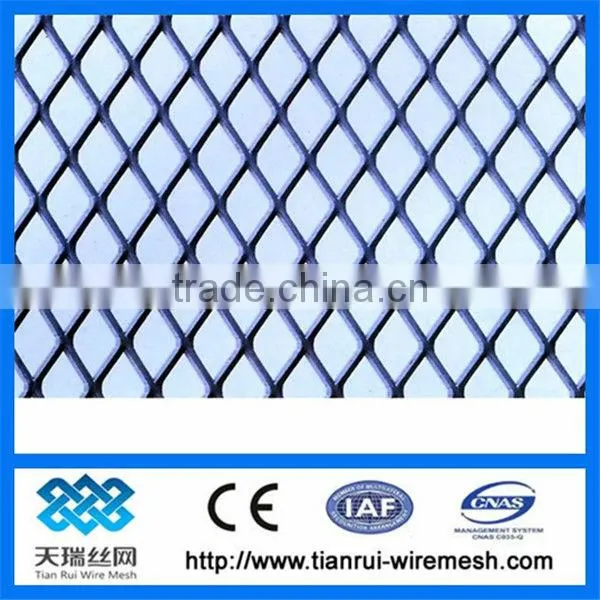

Expand metal mesh
Material:
ordinary plate rolling,galvanized plate,aluminum plate,steel plate,Ti plate,Ni plate.
Our products with high quality.
Variety:
small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
Use:
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Sizes:
•Long way of mesh: TB: 12.5-200mm
•Short way of mesh: 5-80mm
•Thickness: d: 0.5-8mm
•Expanded metal mesh at length from 600-4000mm and width from 600-2000mm
Specification :
specifications | width | length | weight | |||
mesh | distance | distance | strip(mm) | (m) | (m) | (kg/m2) |
thickness(mm) | short(mm) | long(mm) | ||||
0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Application :
Welcome to send inquiry to me :
