China main manufacturer of Hydraulic rubber hoses high-pressure pipes

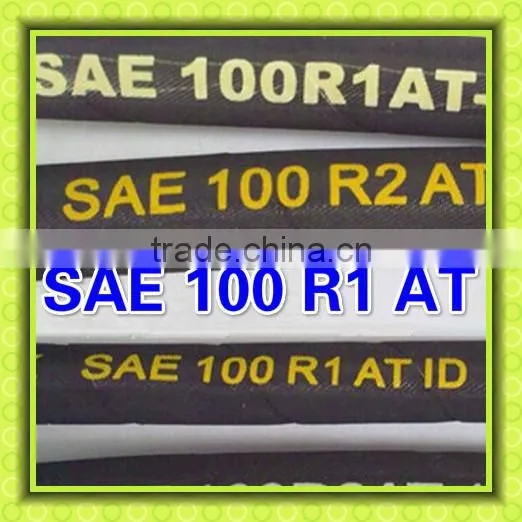

1>SAE 100 R1 AT / DIN EN 853 1SN :
SINGLE WIRE BRAID HOSES (SAE 100R1AT, EN 853 1SN)
rubber hose Tube: Oil resistant synthetic rubber
rubber hose Reinforcement: One steel wire braid
rubber hose Cover: Oil, abrasion and weather resistant synthetic rubber. MSHA approved
rubber hose Temperature Range: -40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).
rubber hose Application: ideally suited for medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.

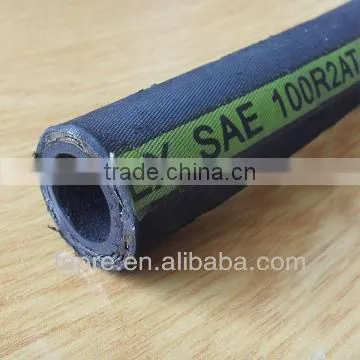

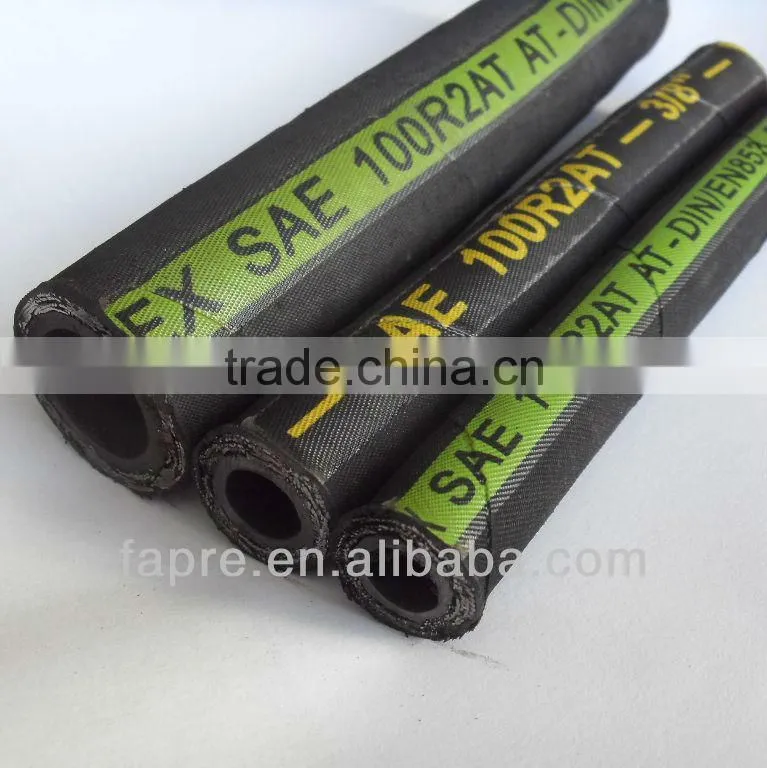

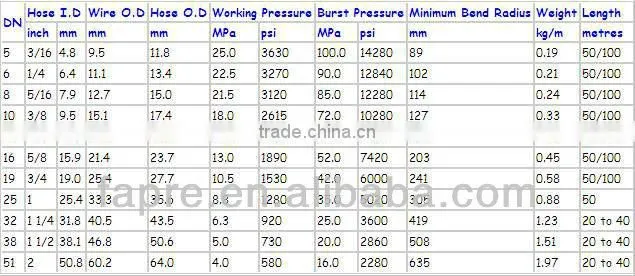

2>SAE 100 R2 AT / DIN EN 853 2SN :
Tube : Oil resistant synthetic rubber
Reinforceent : two high tensile steel wire layers 2 w
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

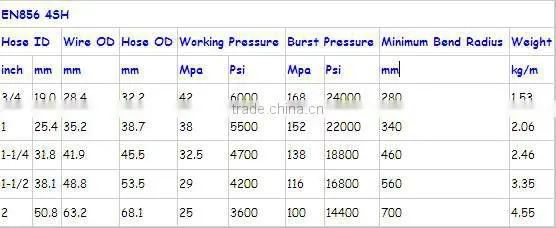

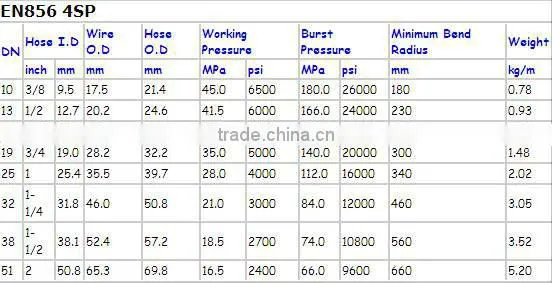

3>DIN-EN 856 4SH/4SP Hose :
1. Tube: Oil resistant synthetic rubber.
2. Reinforcement: Four high tensile steel wire spiral layers (4W/S)
3. Rubber hose Cover: Abrasion and weather resistant synthetic rubber, MSHA accepted.
4. Temperature range: - 40 Centigrade to + 125 Centigrade

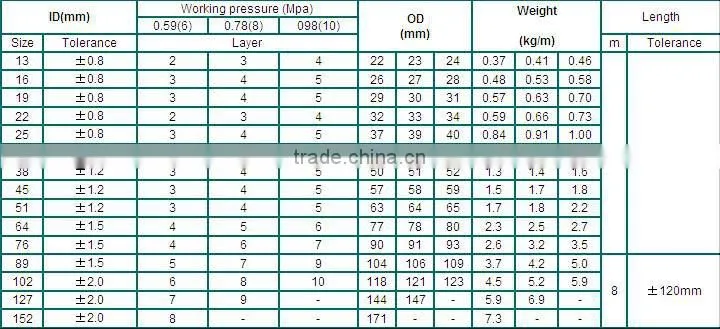

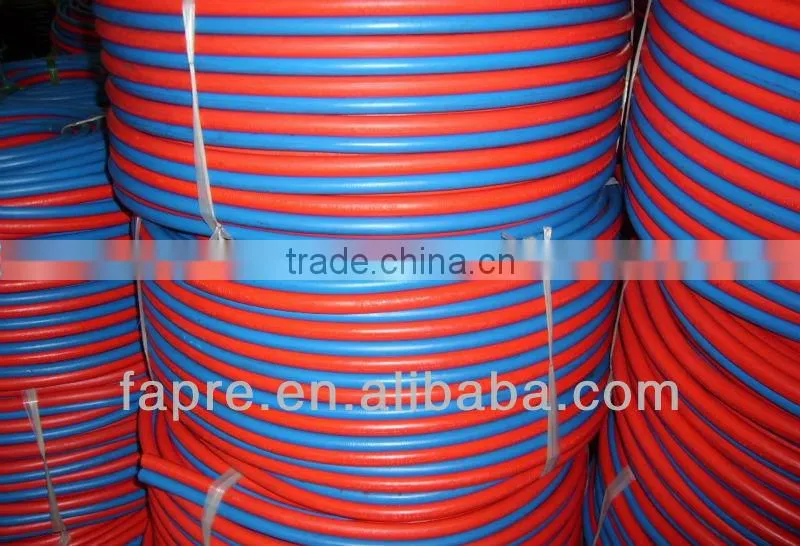

4>,Air rubber hose
Be applicable for transfer pressed air and inert gasses in mineral field, civil construction
This kind of rubber hose has excellent air tightness, old-resistance and abrasive-resistance Bursting pressure is not less 4 times than the normal working pressure

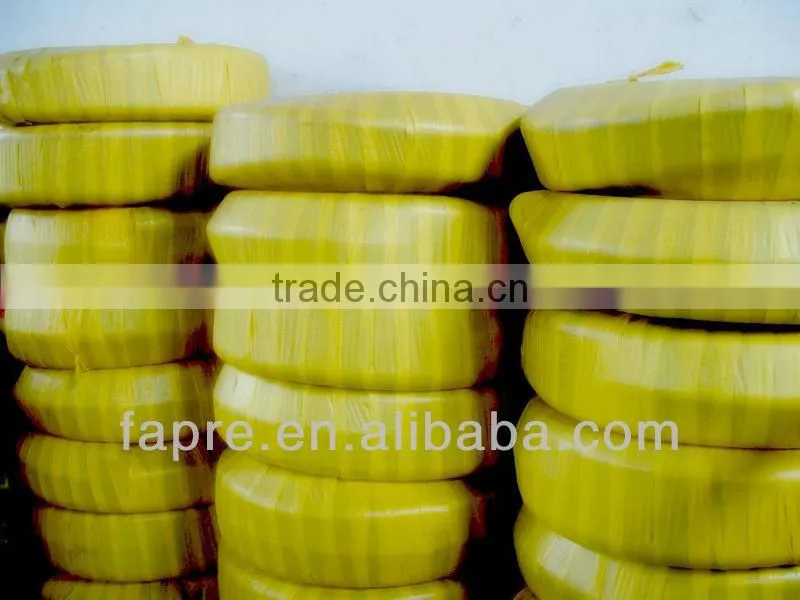

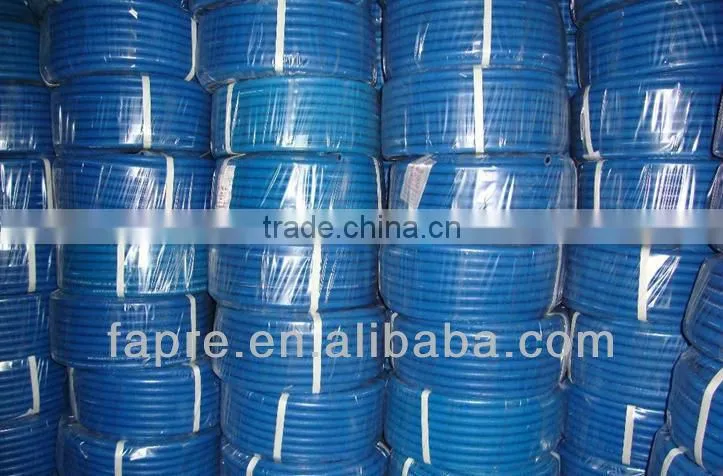

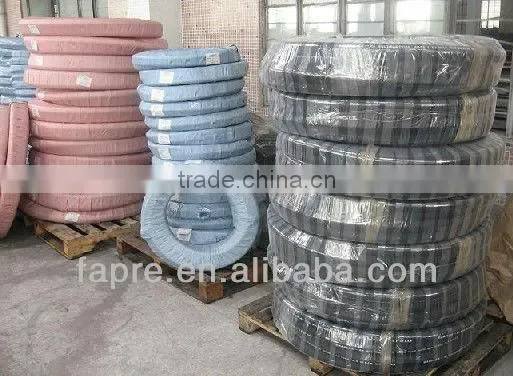

5>Package image:
More information pls visit our website .
Aimee Gao will be always at your service !!
