Wire Mesh Fences
1. Material: low carbon steel wire, Al-Mg alloy wire
2. Process: weaving and welding, Fence length 2m, 2.5m as standard
3. Use: Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
4. Sample: available
| PVC coated welded wire mesh | |||
| Gauge | Mesh | WXL | Note: |
| 2.0MM/2.6MM | 4"X 2" | 100mmX50mm | 1.gauge:bwg 12 to 24 |
| 1.9MM/2.5MM | 3"X 2" | 75mmX50mm | sh:1/4",3/8",5/8",1/2",3/4",1" to 6" |
| 1.9MM/2.5MM | 2"X 2" | 50mmX50mm | 3.width:2' to 7' |
| 1.9MM/2.5MM | 2"X 1" | 50mmX25mm | 4.length:10' to 300' |
| 1.9MM/2.5MM | 3"X 2" | 75mmX50mm | 5.packing:moister-proof paper or pvc film |
| 0.8MM/1.1MM | 1/2"X1/2" | 12.5mmX12.5mm | lor:green,black or as special requirements |
| 0.6MM/0.7MM | 3/4"X 3/4" | 19.5mmX19.5mm | |

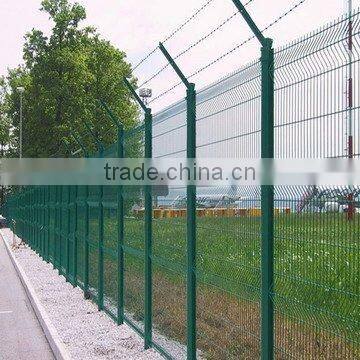

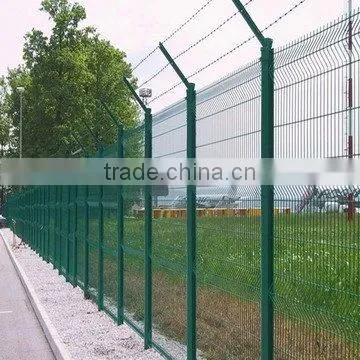

Garden fences are made of low carbon steel wire or aluminum alloy wire through welding and weaving.
Garden fences are mainly used as fences or protection materials in airport, residence area, sea ports, gardens, breeding and husbandry.
Garden fences enjoy the features of corrosion resistance, aging resistance, sunlight resistance and weather resistance. The forms of corrosion resistance include electro galvanizing, hot-dipped galvanizing, PVC coating or spraying.
| Specification of Wire Mesh Fences | Spotted by 4mm diameter quality mild steel wire |
| Opening (mm) | 75x150 |
| LxW (mm) | 1800x3000 |
| Frame (mm) | 20x30x1.5 |
| PVC coating thickness (mm) | 0.7-0.8 |
| With coating (mm) | 4.8 |
| Support post (mm) | diameter 48x2x2200 |
| Base for fence(mm) | 500x300x300 |
Panel:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1.8MM*2+6MM*1. It obtains high strong powers to resist the construction.
Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.
Post:
This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm) with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.
Fastenings:
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.
Application:
Boundary and anti intruder
Stand and finish:
Galvanized / Polyester coated green
other standard colors available on request
