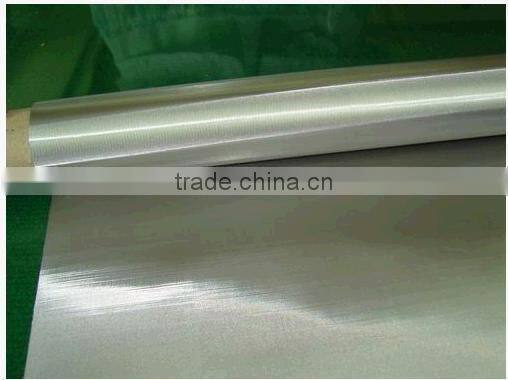

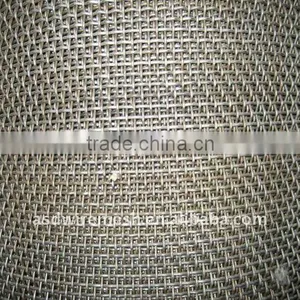

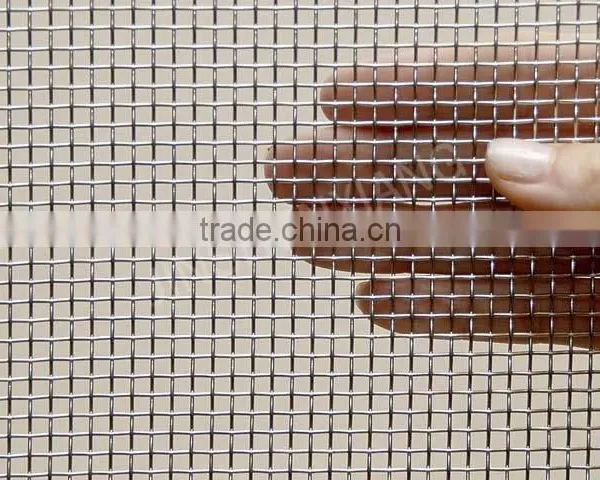

430 Stainless Steel Wire Mesh Dutch Weave(factory)
US$ 1 - 6.35
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Perforated Metal Sheet(factory)US$ 4 - 15MOQ: 100 Square Meters -
304 Perforated Metal Sheet(factory)US$ 15 - 45MOQ: 100 Square Meters
-
Perforated Metal Sheet(factory)US$ 15 - 45MOQ: 100 Square Meters
-
Perforated Metal Sheet(factory)US$ 15 - 45MOQ: 100 Square Meters
-
Perforated Metal Sheet(factory)US$ 15 - 45MOQ: 50 Square Meters
Place of Origin
Hebei, China
Material
Stainless Steel Wire
Type
Weave Wire Mesh
Application
Other, Filters, screen filter
Weave Style
Plain Weave
Wire Diameter
0.02----1.60mm
Technique
Woven
Model Number
GS-12
Brand Name
Guangshun
Wire Mesh Dutch Weave for Filtration
mesh,1-635mesh
width,24'"80"
material,ss302.304.304L,316.316L etc
length,50LF-330LF
Wire Mesh Dutch Weave for Filtration
We mainly produce Wire Mesh Dutch Weave in two weaving patterns, Twilled Dutch Weave and Plain Dutch Weave, in a variety of materials:
|
The Twilled Dutch Weave offers higher strength than regular Dutch Weaves. It packs even more wires in a given area. Generally, this weave has finer mesh counts and lower flow than other Dutch Weaves and can be made to filter particles as fine as 2 microns in diameter.
The Plain Dutch Weave is primarily used as a filter cloth. the openings slant diagonally through the cloth and cannot be seen by looking directly at the cloth. This weave has a coarser mesh and wire in the warp direction and a finer mesh and wire in the shute direction, giving a very compact, firm mesh with great strength.
|
Wire Mesh Plain Dutch Weave
|
| Gauge | Mesh | Wire Diameter | Reference values of particles passed |
| 40 | 10x64 | 0.55x0.42 | 260 |
| 50 | 12x75 | 0.45x0.35 | 220 |
| 80 | 24x110 | 0.35x0.25 | 160 |
| 100 | 25x140 | 0.28x0.20 | 100 |
| 120 | 30x150 | 0.25x0.18 | 80 |
| 140 | 35x180 | 0.20x0.16 | 70 |
| 160 | 40x200 | 0.18x0.13 | 60 |
| 180 | 45x220 | 0.16x0.12 | 56 |
| 200 | 50x250 | 0.15x0.11 | 50 |
| 240 | 60x300 | 0.14x0.09 | 45 |
| 260 | 65x320 | 0.13x0.08 | 36 |
| 280 | 70x400 | 0.125x0.07 | 34 |
| 300 | 80x700 | 0.11x0.039 | 32 |
| Gauge | Mesh | Wire Diameter | Reference values of particles passed |
| 80II | 20x250 | 0.28x0.2 | 38 |
| 120II | 30x300 | 0.25x0.18 | 36 |
| 200II | 50x500 | 0.14x0.11 | 34 |
| 320I | 80x700 | 0.11x0.08 | 32 |
| 320II | 80x780 | 0.10x0.07 | 30 |
| 360 | 90x780 | 0.10x0.07 | 25 |
| 400I | 100x780 | 0.10x0.07 | 22 |
| 400II | 100x900 | 0.10x0.063 | 20 |
| 500 | 120x1100 | 0.07x0.05 | 17 |
| 630 | 150x1400 | 0.063x0.04 | 16 |
| 650 | 180x1800 | 0.07x0.04 | 14 |
| 685 | 165x1400 | 0.063x0.032 | 13 |
| 795I | 200x1400 | 0.07x0.04 | 12 |
| 795II | 200x1800 | 0.05x0.032 | 10 |
| 850 | 2l0x1900 | 0.045x0.03 | 10 |
| 1000 | 250x2000 | 0.045x0.028 | 8 |
| 1125 | 280x2200 | 0.036x0.026 | 7 |
| 1225 | 300x2200 | 0.036x0.026 | 6 |
| 1280 | 325x2300 | 0.035x0.025 | 5 |
| 1600 | 400x2800 | 0.03x0.018 | 3 |
