Home > Products > Nylon Mesh > epoxy resin coated wire mesh
epoxy resin coated wire mesh
- 10000000 Meter / Meters per Month
- tainjin Port
- T/T Credit Card
- Stainless steel Security mesh/Crime safe security mesh/security mesh screen
- Wholesale Good Quality Steel Wire Mesh For Windows Security Mesh For Windows
- Security Stainless Steel Material Stainless Steel Window Screen Roll Screen Security
- Screen Security For Window And Door Stainless Steel Insects Net
- Stainless Steel Wire Mesh Window Screen Screen Security High Strength
- Direct Factory Steel Mosquito Net For Windows China Suppliers
Product Details
Place of Origin: | Hebei, China | Brand Name: | GuangShun | Model Number: | GS |
Screen Netting Material: | Nylon |
Product Description

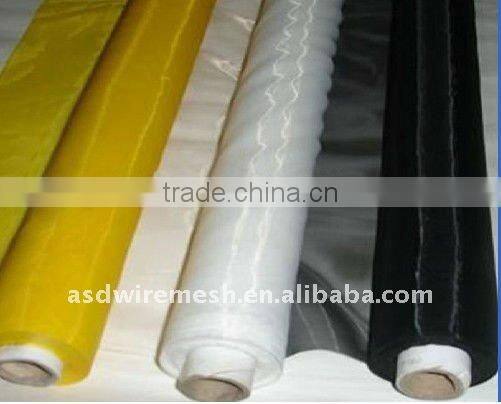

Nylon mesh
Features: excellent abrasion resistance, strong alkali resistance, weak acid resistance
Working temperature: 135-149°c
Package in roll: 30m/roll
Specifications:
material | 100% nylon |
width | 1m, 1.27m |
mesh count | 80~500 mesh/inch |
color | White, yellow |
1. High durability and best tensility: All threads are the best domestic or imported.
2. Nice appearance, standard size: All are imported worldly advanced production lines.
3. Clean and never depigment: Natural yellow thread, not any dyed one, strictly cleaned, never fade and jam the mesh.
The formation of fast tension
Specs:
1. Material: 100% polyester (Nylon available upon request)
2. Weaving: Plain weave (Twill weave available upon request)
3. Specs: 8T~165T mesh/cm (20mesh/inch~420mesh/inch)
4. Max. Width: 365cm (143")
5. Color: White and yellow (available upon request).
Can be customized upon appropriate specifications
Normally Minimum Order: 500m Samples available under freight burden by buyer, the cost refund after order is fixed
There are 3 types of polyester fabrics used in screen printing and they are monofilament, low-elongation monofilament and multifilament. Most of today's screen printers use monofilament polyester,
but the traditional type is rapidly being replaced with "Low-Elongation" fabric, which brings many new benefits to the screen printing process. Here we mainly introduce low elongation monofilament polyester fabric as this is what we are producing now.
Low-elongation Polyester
- Faster tensioning without damage to the threads
- Improved fabric strength
- Faster tension stabilization
- Higher tension threshold and breaking point
- Less tension loss during the stretching process
- Faster turnaround time from the screen room to the pressroom
- Improved registration due to stable tension
- Faster Print speeds
Mesh Count Diameter | Mesh Count (Mesh/inch) | Weave | Aperture (μm) | Thread Diameter (μm) | Opening (%) | Thickness (μm) | Thickness Tollerance (+/- μm) | Theoretical Ink (cm3/m2) | Weight (g/m2) |
13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
21-80PW(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
47-45PW(S) | 120 | 2:2 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
