GLASS BEADS HAVE 3 TYPES:
1. DROP ON FOR THERMOPLASTIC PAINT
2. PRE MIXED FOR THERMOPLASTIC PAINT
3. DROP ON FOR COLD SPRAYING ROAD MARKING PAINT
Function of Glass Beads for Road Marking Paint

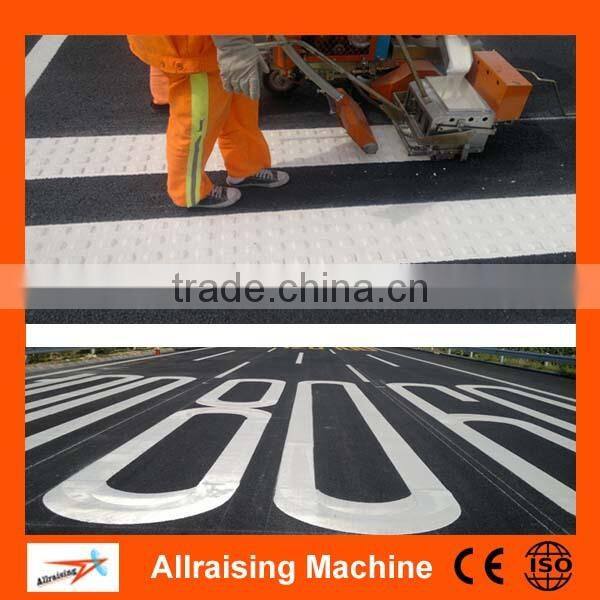

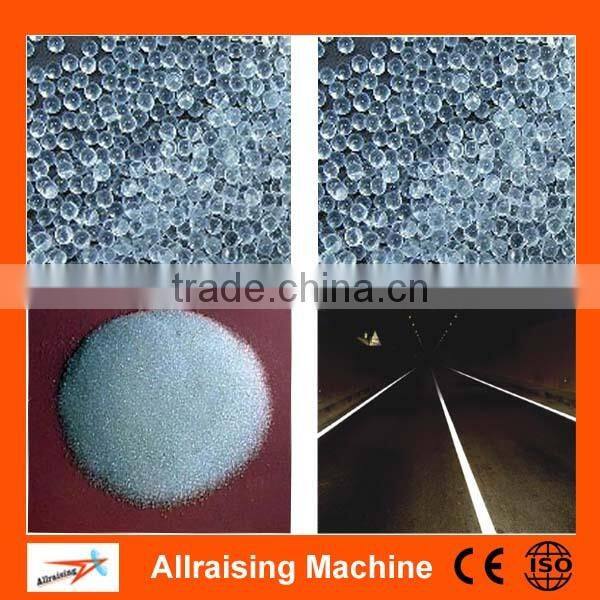

Improve the road marking line contrary reflection function. When driving at night, the lamp shines on the marking line with glass bead in it, the ray of lamp is reflected back parallely. So the driver can look at the road clearly and drive safely at night.
Specifications of Glass Beads for Road Marking Paint
| Type | Glass bead granul diametre limit(μm) | Glass bead quality percentage(%) |
| BS6088A | >1180 | 0~3 |
| 1180~850 | 5~20 | |
| 850~425 | 65~95 | |
| <425 | 0~10 | |
| BS6088B | >850 | 0~5 |
| 850~600 | 5~20 | |
| 600~300 | 30~75 | |
| 300~180 | 10~30 | |
| <180 | 0~15 |
The main products:
1. BS6088A and BS6088B size distribution according to British Standard BS6088.
Table 1 Glass bead Size Distribution (BS6088A/B International Standard)
2.Products according to international standard include:BS6088,KS and AASHTO,EN1423 etc.
3.You can choose different size glass bead between 50μm-1180μm according to different funcition.
Technical references

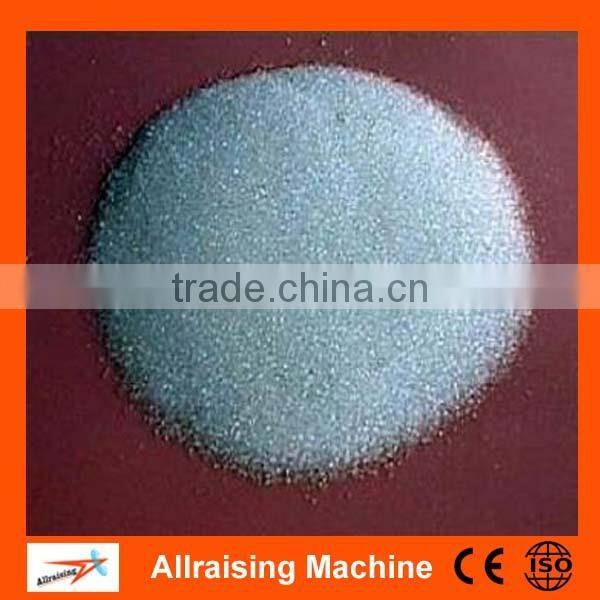

Appearance: Colourless and transparent ball, no visible bubbles and impurity.
Spherical beads:≥80%(600< Sieve size< 850um,spherical beads≥75%)
Density:2.4-2.6g/cm3
Refractive index:Nd≥1.50
Glass bead composition:The glass bead is made of sodium and calcium. SiO2>68%

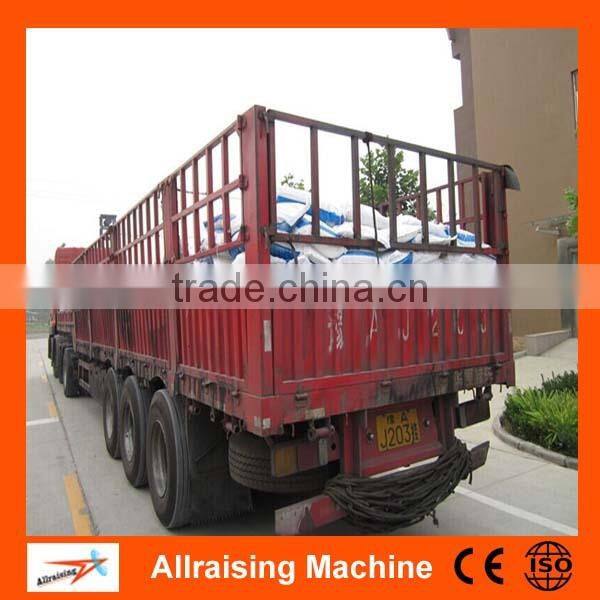

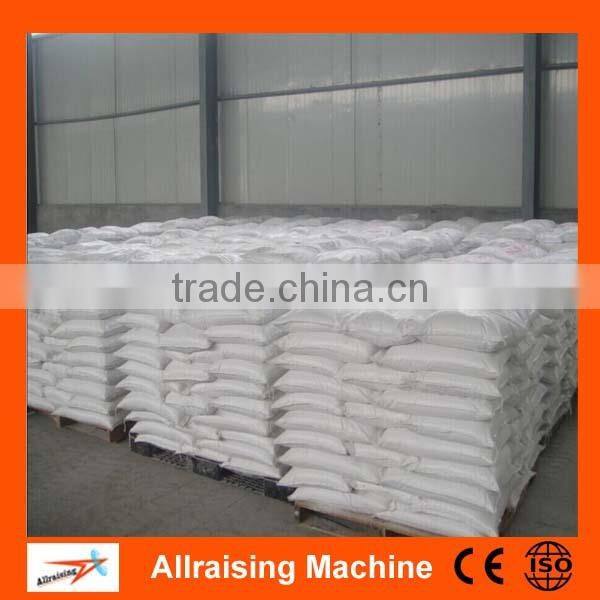

Package:

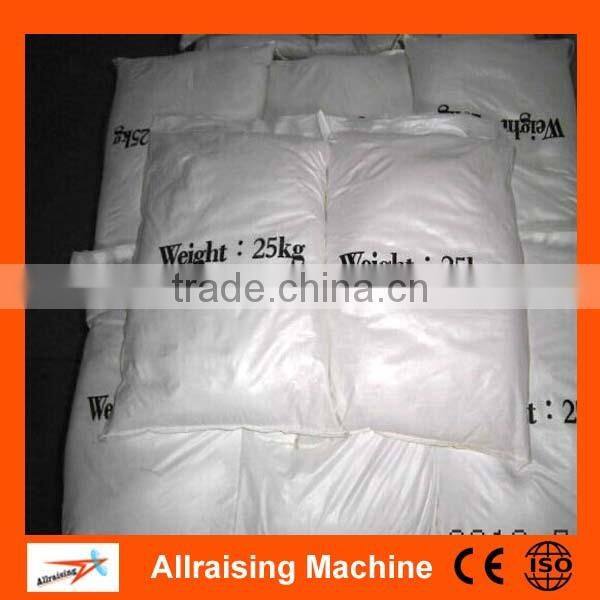

1.Using double-deck package, the inner is polythene film and its thickness is not less than 0.5mm,the outer is plastic woven bag to prevent leak or damp. The net weight of each bag is 25±0.2kg.
2.Using double-deck package, the inner is polythene fim and its thickness is not less than 0.5mm, the outer is plastic woven bag to prevent leak or damp. The net weight of each is 1000±8kg.
Our main thermoplastic road paint preheaters:
| Item | Type | Capacity | Engine |
| OR-XHD-01 | Hydraulic | 450*2=900kg | 15HP |
| OR-XHD-02 | Hydraulic | 500kgs*2=1000kg | 16.5HP |
| OR-XHD-03 | Mechanism | 300*2=600kg | 8.0PS |
| OR-XHS-01 | Mechanism | 300kg | 6.5PS |
| OR-XHS-02 | Hydraulic | 500kg | 6.5PS |
| OR-XHS-03 | Hydraulic | 360kg | 6.5PS |

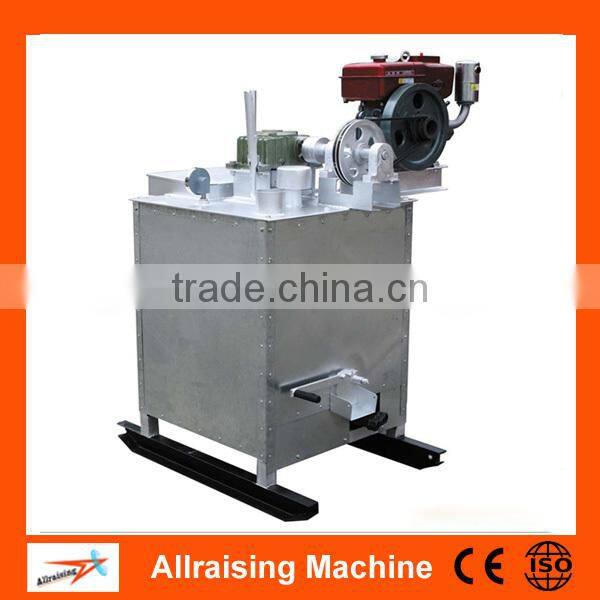

OR-XHS-01 Mechanical single-cylinder thermoplastic pre-heater

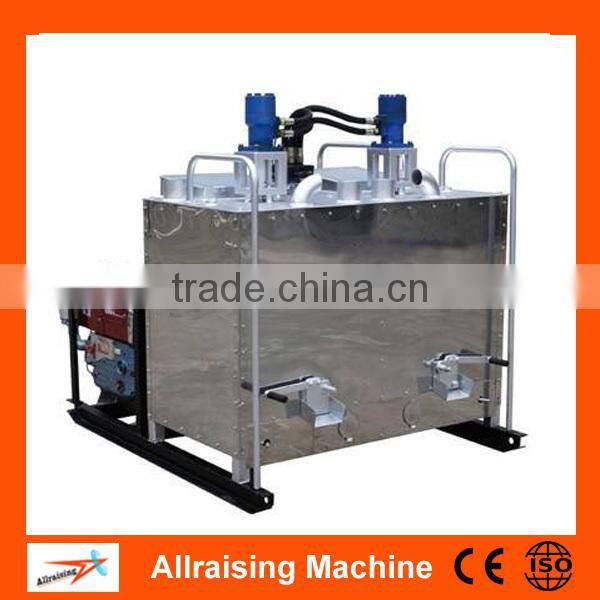

OR-XHD-02 Hydraulic double-cylinder thermoplastic pre-heater

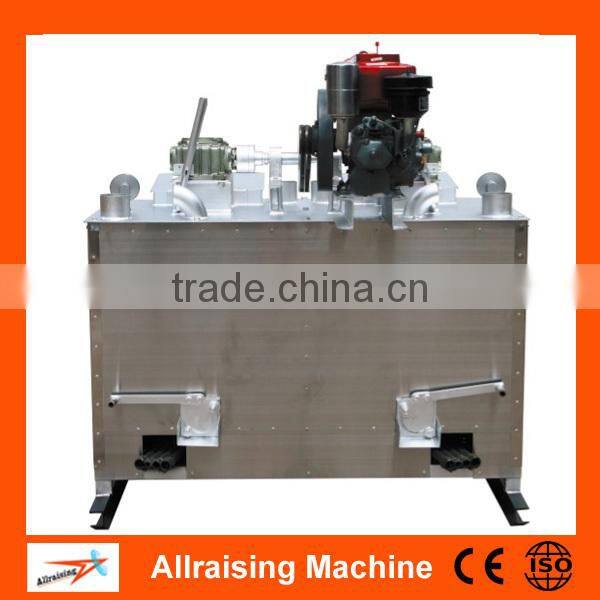

OR-XHD-03 Mechanical double-cylinder thermoplastic pre-heater
Our Business Scope:
Thermoplastic Pre-heaters

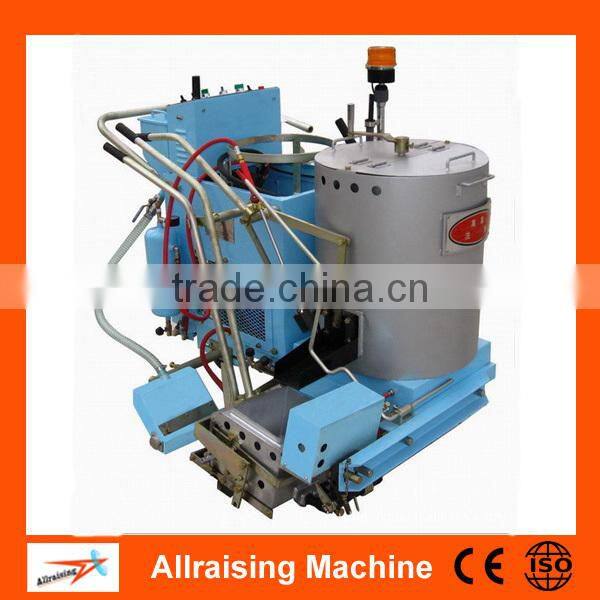

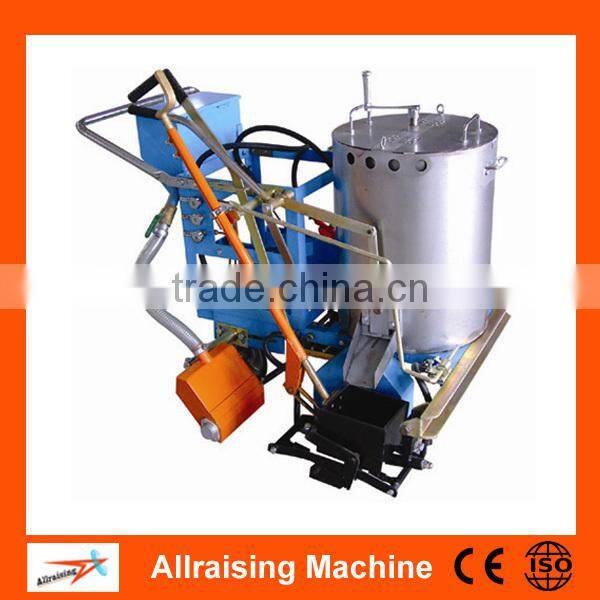

Thermoplastic Road Marking Machine
Cold-Painting Road Marking Machine
Zebra Crossing Marking Machine
Self-Propelled Road Marking Machine

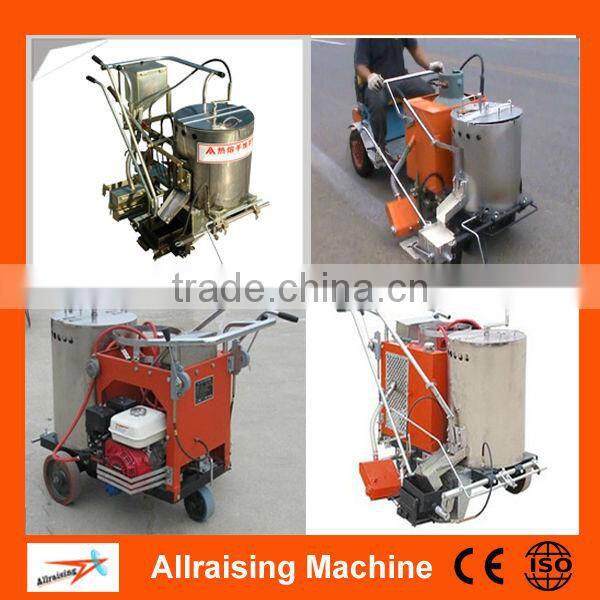

Hand-Push Road Marking Machine
Road Marking Eraser
Traffic Safety Products
Certificate
Please contact me if any interest.
Zhengzhou Allraise Co., Ltd.
