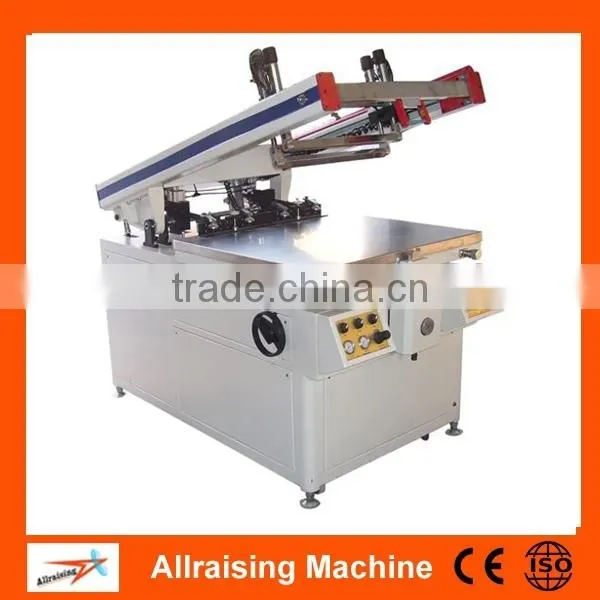

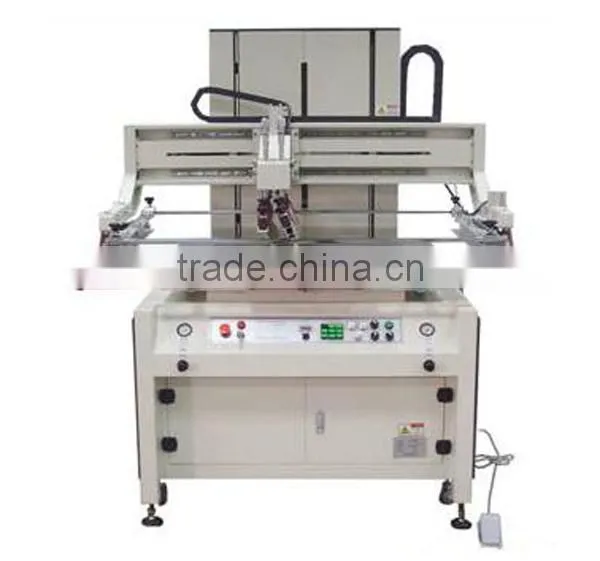

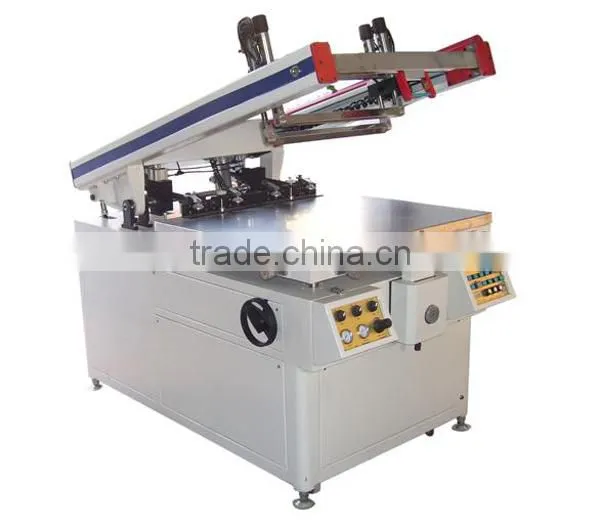

Single Color Flat Screen Pinting Machine
Specification of Single Color Flat Screen Pinting Machine:
Product name |
Single Color Flat Screen Pinting Machine |
||
Model |
ORC-4060 |
ORC-6080 |
ORC-8012 |
Printing size |
400*600mm |
600*800mm |
800*1200mm |
Working table size |
600*800mm |
750*970mm |
970*1300mm |
Screen frame size |
780*870mm |
900*1200mm |
15200*1400mm |
Thickness of prints |
0-40mm |
0-40mm |
0-40mm |
|
Working table V/H adjustment |
±10 |
±10 |
±10 |
Max. Printing speed |
1200sheet/h |
800sheet/h |
800sheet/h |
Power |
2.5KW |
3KW |
3KW |
Working pressure |
0.5-0.7Mpa |
0.5-0.7Mpa |
0.5-0.7Mpa |
Weight |
250kg |
550kg |
750kg |
Size |
1500*900*1250 |
1500*1000*1235mm |
1650*1500*1350mm |
Features of Single Color Flat Screen Pinting Machine:
* Adopted PLC control system, and by customer design the action of machine;
* Transducer is introduced to control the printing process and make machine
running steadily;
* The movement of scraper, ink covering blades and screen departure is controlled
by pneumatic parts to make speed and pressure no matter symmetrical
but also stepless modulation;
* Working table angles is adjustable, which provides easy operation and accurate register;
* As a whole, this machine is safety, running steadily with low noise and printing
precise.
Application of Single Color Flat Screen Pinting Machine:

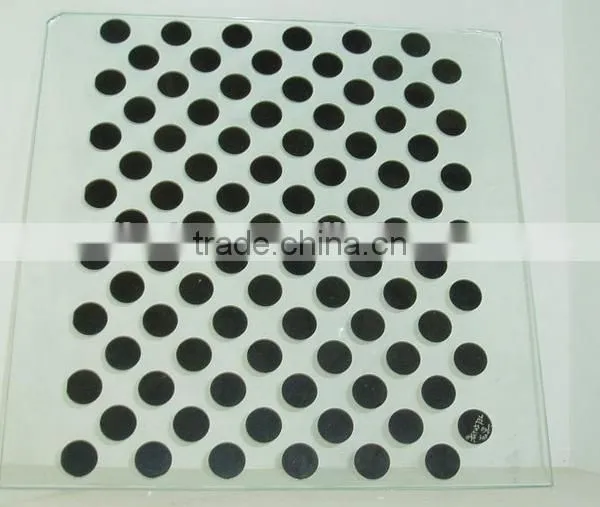

Suitable range: This series of flat screen printing machine are available and have
reasonable structure.It can print various of flat drawings, such as ceramic decal,
metal board, plastic board, leather paper, glass and so on. So it has been used in
the field of cigarette wrappers,alcohol, cosmetics widely.
Package: Carton,standard export box ,also can be adjusted at your demand
MOQ: 1 set
Shipment: By sea, By air or By international courier
Port: Main ports of China
Delivery time: 2-5 days after formal order,according to your quantity
Production capacit: 2000 sets per month
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you
Certification:
Don't worry your TT payment,we do make the shipment as S/C,B/L for your reference!
Zhengzhou Allraising Machinery Company Ltd have been designing, developing,
manufacturing and marketing Machinery for more than 10 years. Firstly we mai-
nly sever china mainland customers, Inorder to adapt to world market development,
now we do the exporting business directly. After theseyears of development, we have
high quality professional teams, skillful talents, strong technical force, strong and
independent research and development capabilities, advanced productionequipment
and a perfect after-sales service system. So choose us, equaling to choose the comp-
etitive price and stable quality both.
Company advantage:
1.Lower price:We produce and export machine directly
2.Competitive price:With a cheaper labor force which make our price more competitive
3.On time shipment:Most developed highway system and logistics deliver company
make sure on time shipment
4.Producing Line:Own advanced manufacturing equipments andcomputer controlled making
machine,so our factory implement assembly line entirely.
5.QC:Strict quality control system to make sure the quality is good and stable.
6.Sincerity:Once cooperation, the whole life friendship. Not for others just for the quality.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our
reputation. Best quality is our principle all the time. You can be assured on our production
completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower
than the trade company because we are manufacture. You will get competitive price and
better quality.
If you have any question, please feel free to ontact me.I will reply you soon.
